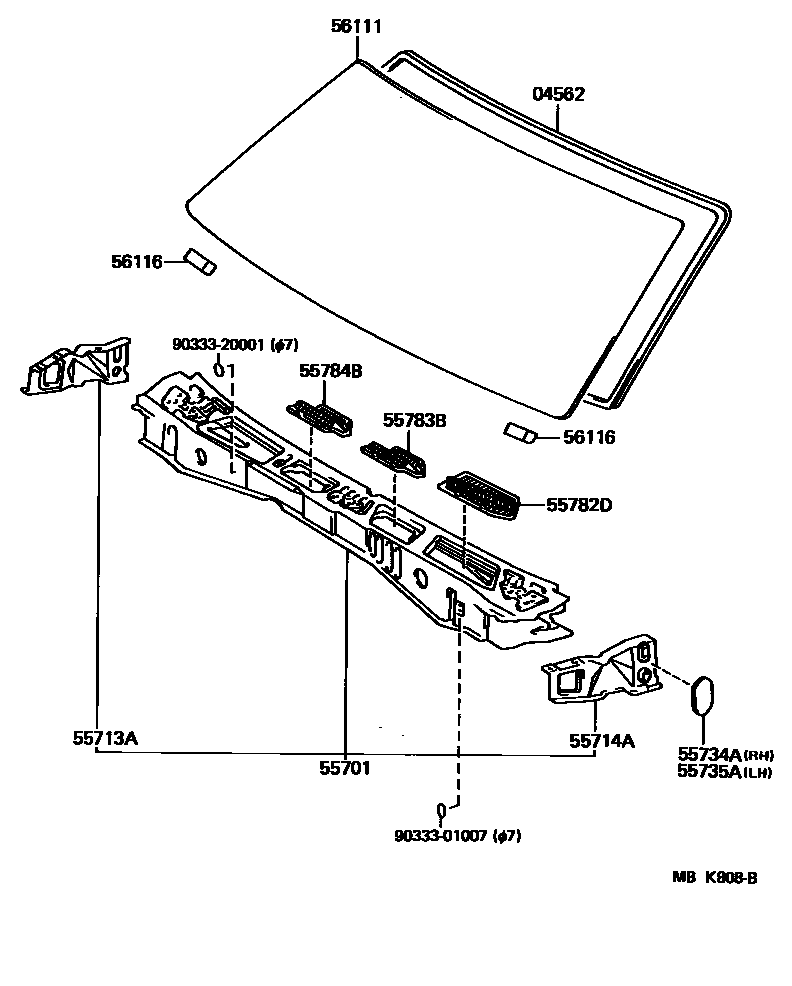

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iEL31¥2,390198608-198808

55701PANEL SUB-ASSY, COWL

main55700-16110iEL31..MTM¥43,200198608-198808

main55700-16150iEL31..3FC¥43,200198608-198808

55713APANEL, COWL TOP SIDE, RH

main55713-16030iEL31¥1,840198608-198808

55714APANEL, COWL TOP SIDE, LH

main55714-16030iEL31¥1,840198608-198808

55734APLATE, WATER GUARD, RH

main55734-16030iEL31¥410198608-198808

55735APLATE, WATER GUARD, LH

main55734-16030iEL31¥410198608-198808

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-16010iEL31..USA¥1,120198608-198808

sub55782-16020¥1,120

main55782-16020iEL31..CND¥1,120198608-198808

COLD SPEC

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-16040iEL31..USA¥750198608-198808

main55783-16050iEL31..USA¥1,080198608-198808

COLD SPEC

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-16020iEL31..USA¥750198608-198808

main55784-16030iEL31..CND¥1,080198608-198808

COLD SPEC

56111GLASS, WINDSHIELD

main56111-16150iEL31..B..CND;EL31..(3DS,5DS)..STD198608-198808

*LAM,T=5.3,*LAM,T=5.3

main56111-16160iEL31..(3DS,5DS)..DX198608-198808

*TL,T=5.3,*TL,T=5.3

main56111-16170iEL31..2DS..STD198701-198808

*TL,T=5.3,*LAM,T=5.3

main56111-16180iEL31..2DS..DX¥88,500198701-198808

*TL,T=5.3,*TL,T=5.3

56116SPACER, WINDSHIELD GLASS

main56116-24010iEL31¥230198608-198808

9033301007

main90333-01007¥110

9033320001

main90333-20001¥70

13 parts on this diagram · 1 diagram in section
