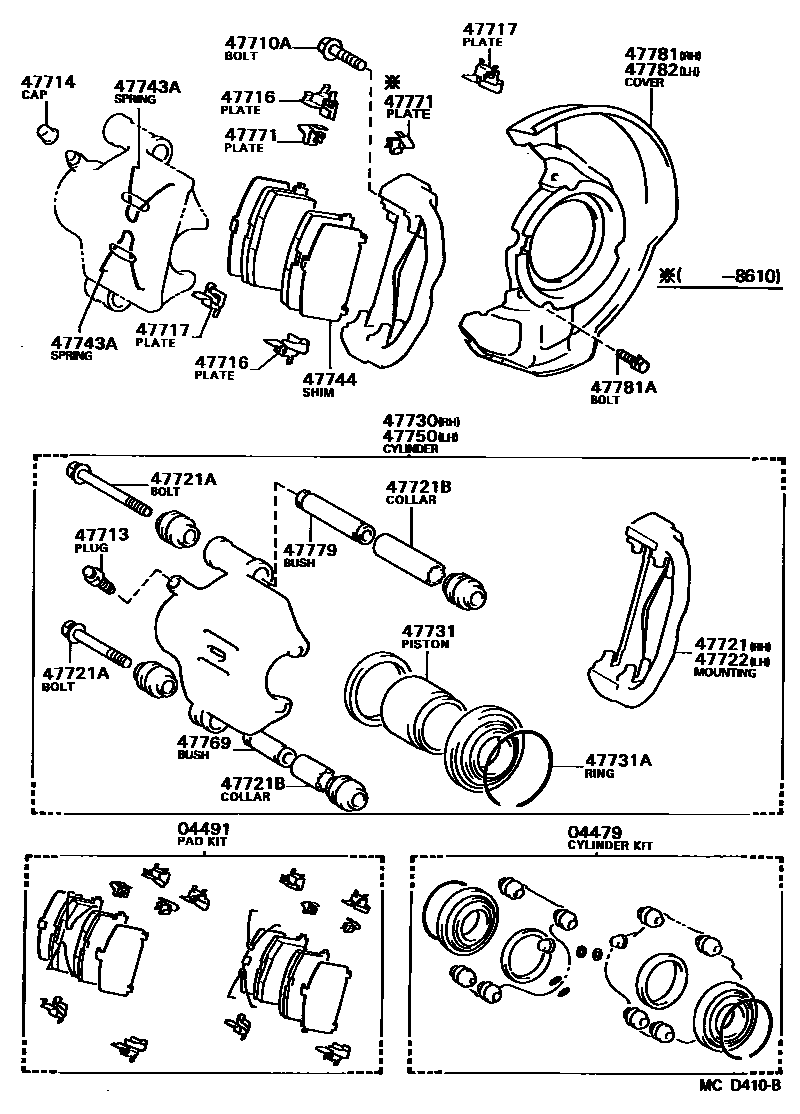

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0004 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-16021iEL31198608-198808

04491PAD KIT, DISC BRAKE, FRONT

main04491-16080iEL31..USA198608-198703

sub04491-16081

main04491-16081iEL31..USA198703-198808

sub04465-16031

main04491-16130iEL31..CND198610-198703

sub04491-16131

main04491-16131iEL31..CND198703-198808

sub04491-16132

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iEL31198608-198808

*12-1.25PX25.8-19.5

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iEL31198608-198808

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iEL31198608-198808

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32010iEL31198608-198808

sub47716-32031

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32010iEL31198608-198808

sub47717-32031

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-16010iEL31198608-198808

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iEL31198608-198808

*9-1.25PX71-25,*9-1.25PX73-25

main90119-09004iEL31198608-198808

*9-1.25PX91-25,*9-1.25PX93-25

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-15004iEL31198608-198705

L=12

main90387-15005iEL31198608-198705

L=32

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-16010iEL31198608-198808

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-16050iEL31198608-198808

47731PISTON, FRONT DISC BRAKE

main47731-16020iEL31198608-198808

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iEL31198608-198808

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-16010iEL31198608-198808

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-16010iEL31198608-198703

sub47744-16011

main47744-16011iEL31198703-198711

sub47744-32010

main47744-32010iEL31198711-198808

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-16050iEL31198608-198808

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iEL31198705-198808

main47769-16010iEL31198608-198705

sub47769-12030

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010iEL31198608-198808

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010iEL31198608-198808

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-16050iEL31198608-198808

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iEL31198608-198808

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-16050iEL31198608-198808

23 parts on this diagram · 3 diagrams in section
