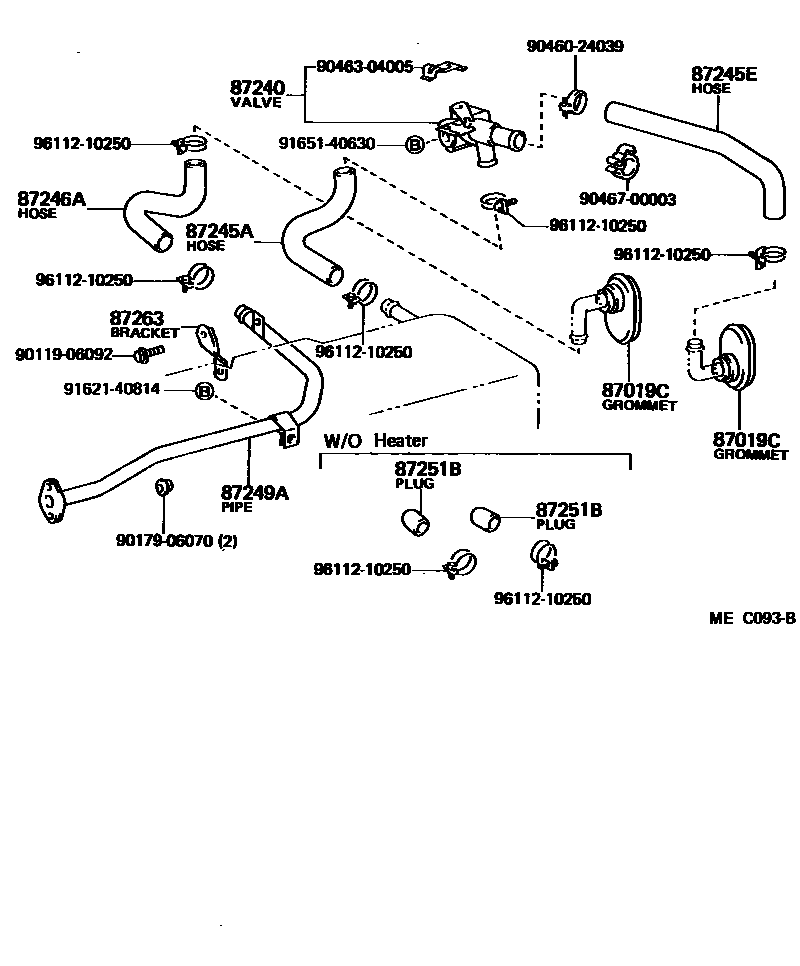

HEATING & AIR CONDITIONING - WATER PIPING

87019CGROMMET, HEATER HOSE

main90480-01015iAL2#198208-198801

87240VALVE ASSY, HEATER WATER

main87240-16040iAL2#198208-198801

87245AHOSE, HEATER WATER, INLET A

main87245-16120iAL2#198208-198801

87245EHOSE, HEATER WATER, INLET E

main87245-16110iAL2#198208-198801

87246AHOSE, HEATER WATER, OUTLET A

main87245-16130iAL2#198208-198801

87249APIPE, HEATER WATER OUTLET, A

main87208-16050iAL2#198208-198801

87251BPLUG, HEATER WATER

main90339-16007iAL2#..USA198208-198608

sub90339-16001

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-16010iAL2#198208-198801

9011906092

main90119-06092

9017906070

main90179-06070

9046024039

main90460-24039

9046304005

main90463-04005

9046700003

main90467-00003

9162140814

main91621-40814

9165140630

main91651-40630

9611210250

main96112-10250

16 parts on this diagram · 1 diagram in section
