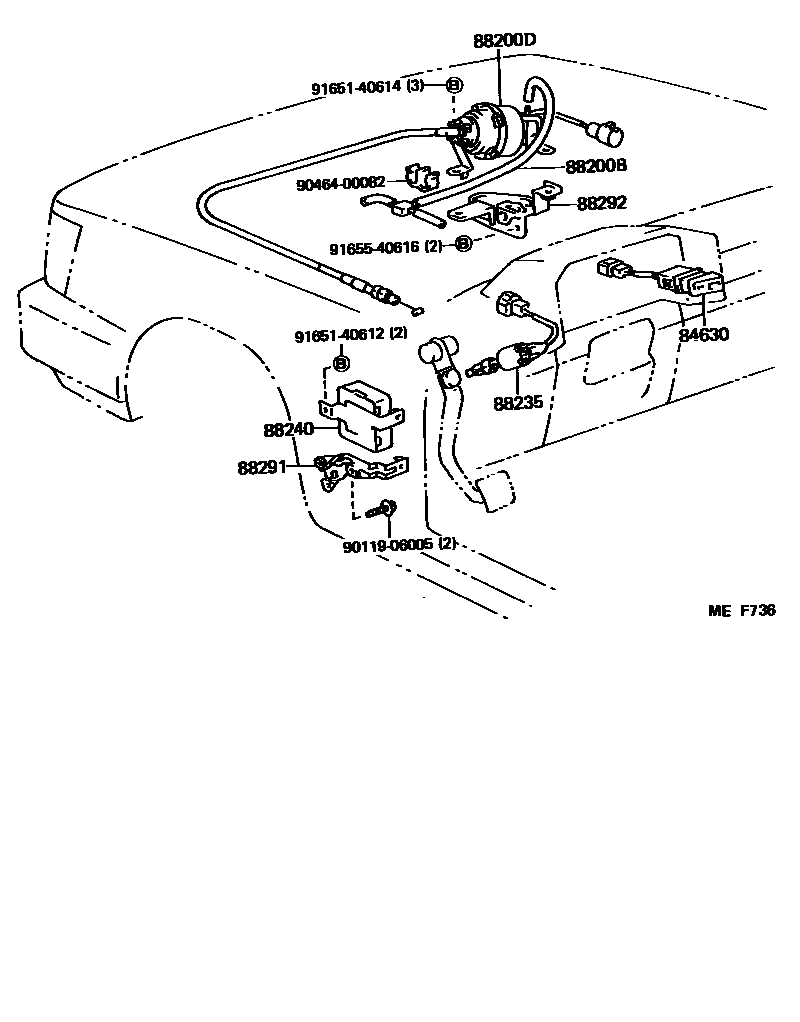

CRUISE CONTROL (AUTO DRIVE)

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-16010iAL2#..(DLX,SR5)..USA198502-198801

88200BHOSE, CRUISE CONTROL VACUUM

main88283-16010iAL2#..(DLX,SR5)..USA198502-198801

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-16011iAL2#..(DLX,SR5)..USA198502-198801

sub88200-16012

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-35010iAL2#..MTM..(DLX,SR5)..USA198502-198801

88240COMPUTER ASSY, CRUISE CONTROL

main88240-16010iAL2#..(DLX,SR5)..USA198502-198508

sub88240-16011

main88240-16011iAL2#..(DLX,SR5)..USA198508-198603

sub88240-16012

main88240-16012iAL2#..(DLX,SR5)..USA198603-198801

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-16010iAL2#..(DLX,SR5)..USA198502-198801

88292BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2

main88292-16010iAL2#..(DLX,SR5)..USA198502-198801

9011906005

main90119-06005

9046400082

main90464-00082

9165140612

main91651-40612

9165140614

main91651-40614

9165540616

main91655-40616

12 parts on this diagram · 1 diagram in section
