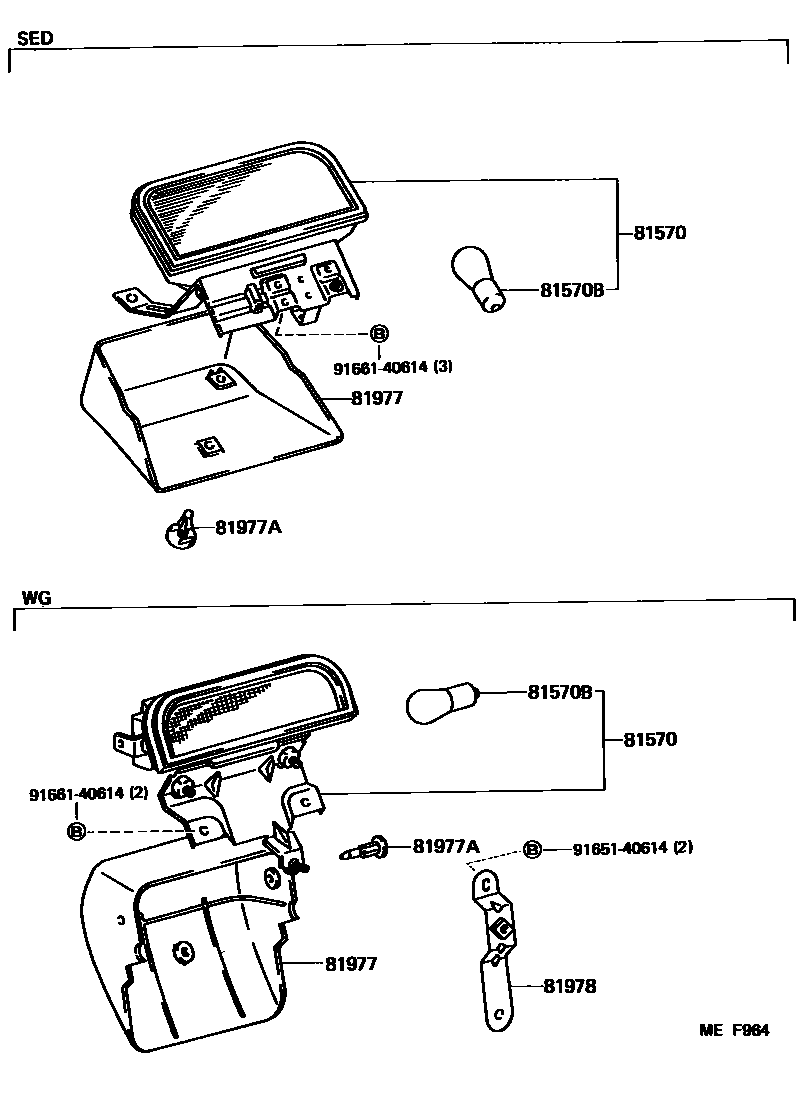

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-16010iAL21..SED198508-198608

main81570-16020iAL2#..WG198508-198801

81570BBULB (FOR CENTER STOP LAMP)

main99132-11270iAL2#198508-198801

12V 27W,12V 27W

81977COVER, CENTER STOP LAMP

main81977-16010-02iAL21..SED198508-198608

MAROON,MAROON

sub81977-16010

main81977-16010-03iAL21..SED198508-198608

GRAY,GRAY

sub81977-16010

main81977-16010-05iAL21..3DS198508-198608

BEIGE,BEIGE

sub81977-16010

main81977-16010-15iAL21..5DS198605-198608

BEIGE,DARK BEIGE

sub81977-16010

main81977-16020-01iAL2#198608-198801

BLACK,NEW BLACK

sub81977-16020

main81977-16020-03iAL2#..WG198508-198608

GRAY,GRAY

sub81977-16020

main81977-16020-05iAL2#..WG198508-198605

BEIGE,BEIGE

sub81977-16020

main81977-16020-15iAL2#..WG198605-198801

BEIGE,DARK BEIGE

sub81977-16020

81977ACLIP (FOR CENTER STOP LAMP)

main90467-07041-03iAL21..SED198508-198608

GRAY,GRAY

sub90467-07041

main90467-07041-15iAL21..SED198508-198608

BEIGE,BEIGE

sub90467-07041

main90467-07041-32iAL21..SED198508-198608

MAROON,MAROON

sub90467-07041

main90467-07041-45iAL21..5DS198605-198608

BEIGE,DARK BEIGE

sub90467-07041

main90467-07055-03iAL2#..WG198508-198608

GRAY,GRAY

sub90467-07055

main90467-07055-05iAL2#..WG198508-198605

BEIGE,BEIGE

sub90467-07055

main90467-07055-11iAL2#198608-198801

BLACK,NEW BLACK

sub90467-07055

main90467-07055-25iAL2#..WG198605-198801

BEIGE,DARK BEIGE

sub90467-07055

81978BRACKET, STOP CENTER

main81978-16010iAL2#..WG198508-198801

9165140614

main91651-40614

9166140614

main91661-40614

7 parts on this diagram · 1 diagram in section
