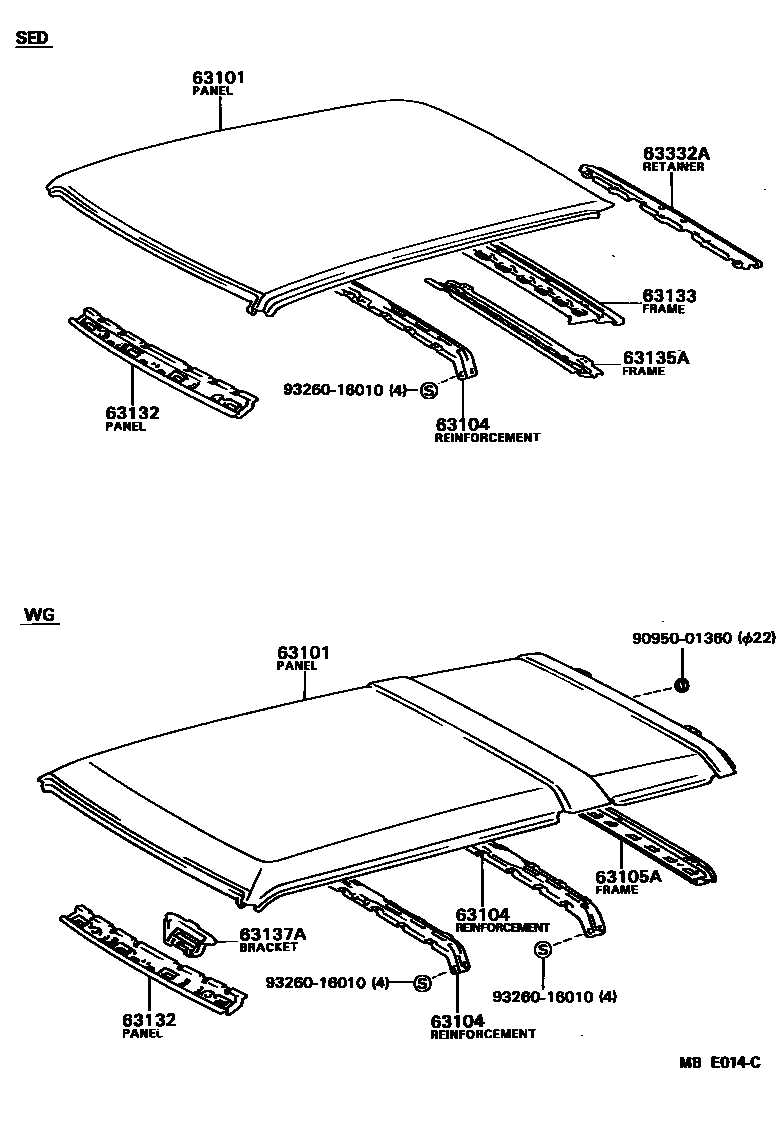

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

63101PANEL SUB-ASSY, ROOF

main63111-16080iAL21..SED198208-198608

W/O SUN ROOF

main63111-16090iAL21..SED..(DLX,SR5)..3AC198208-198608

W/SUN ROOF

main63111-16100iAL2#..WG198208-198801

W/O SUN ROOF

main63111-16110iAL2#..WG198208-198801

W/SUN ROOF

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-16020iAL21..SED198208-198608

main63141-16030iAL2#..WG198208-198801

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-16020iAL2#..WG198208-198801

63132PANEL, WINDSHIELD HEADER, INNER

main63132-16020iAL21..SED198208-198608

main63132-16030iAL2#..WG198208-198801

63133FRAME, BACK WINDOW OPENING, UPPER

main63134-16020iAL21..SED198208-198510

sub63134-16040

main63134-16040iAL21..SED198510-198608

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-16020iAL21..SED198208-198608

63137ABRACKET, DOME LAMP, NO.1

main63137-16020iAL25198208-198608

63332ARETAINER, ROOF HEADLINING, REAR

main63383-16010iAL21..SED198208-198608

9095001360

main90950-01360

9326016010

main93260-16010

10 parts on this diagram · 3 diagrams in section
