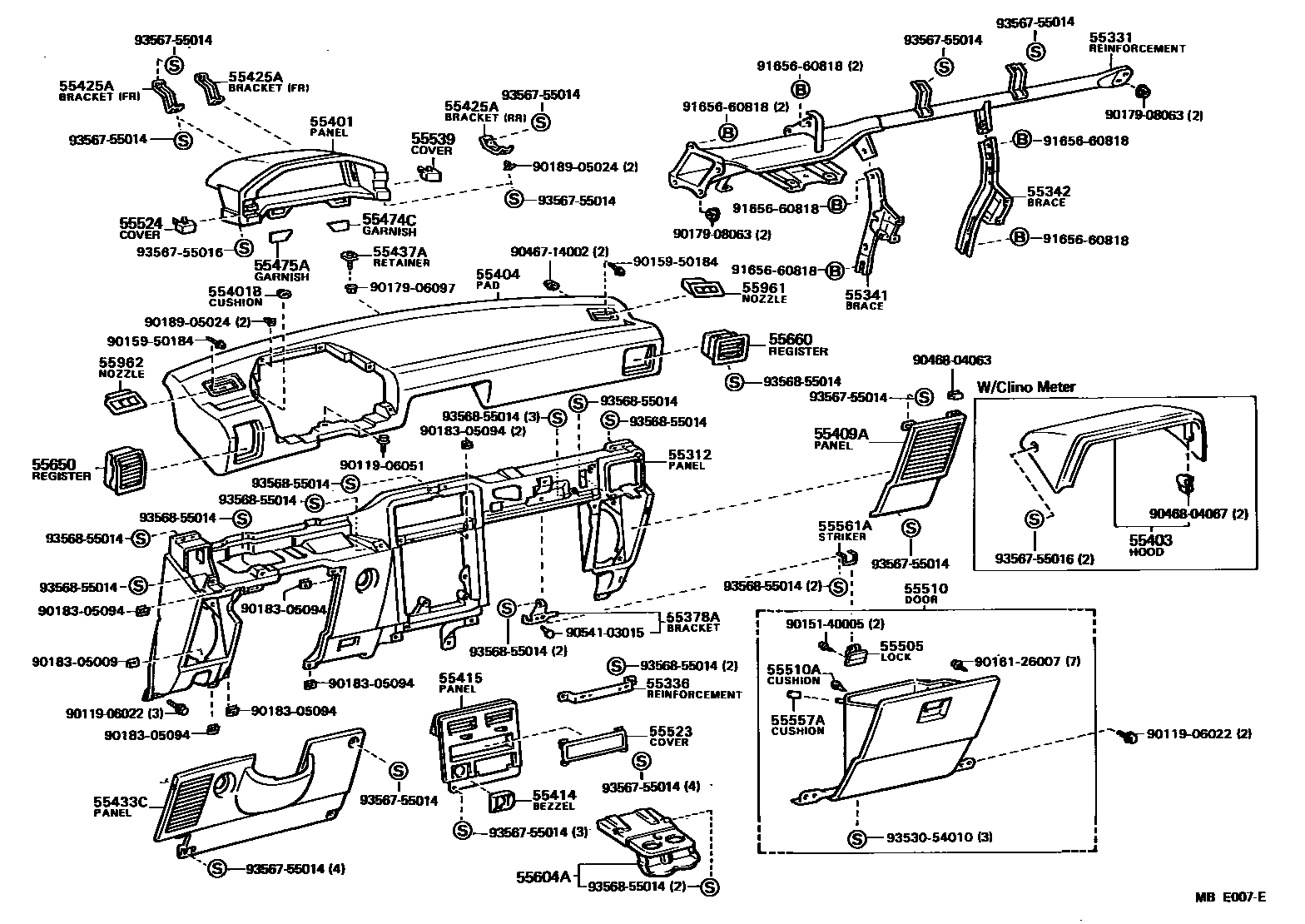

INSTRUMENT PANEL & GLOVE COMPARTMENT

55312PANEL, INSTRUMENT, LOWER

main55312-16020-01iAL2#198608-198801

BLACK,BLACK

main55312-16020-02iAL21..SED..(DLX,STD)198208-198608

DARK WINE,RED/MAROON

main55312-16020-03iAL2#198208-198408

GRAY,GRAY

main55312-16020-05iAL2#198408-198608

BEIGE,BEIGE

main55312-16020-06iAL2#198208-198408

BROWN,BROWN

main55312-16020-13iAL2#198408-198608

GRAY,GRAY

main55312-16020-15iAL2#..WG;AL21..5DS198605-198801

BEIGE,DARK BEIGE

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-16020iAL2#¥15,400198208-198801

55336REINFORCEMENT, INSTRUMENT PANEL, LOWER CENTER

main55336-16010iAL2#¥3,470198208-198801

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-16040iAL2#¥2,260198208-198801

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-16040iAL2#¥2,650198208-198801

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-16020iAL2#¥1,180198208-198801

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-16060-01iAL2#..DLX..CND198608-198801

BLACK,BLACK

main55404-16060-02iAL21..SED198208-198608

DARK WINE,RED/MAROON

main55404-16060-03iAL2#198208-198408

GRAY,GRAY

main55404-16060-05iAL21..SED..(DLX,STD)198408-198608

BEIGE,BEIGE

main55404-16060-06iAL2#198208-198408

BROWN,BROWN

main55404-16060-13iAL2#..DLX..CND..3AC198408-198608

GRAY,GRAY

main55404-16060-15iAL2#..DLX..CND..3AC198605-198801

BEIGE,DARK BEIGE

main55404-16080-01iAL2#198608-198801

W/TILT STEERING,BLACK,BLACK

main55404-16080-02iAL21..SED..DLX198408-198608

W/TILT STEERING,DARK WINE,DARK WINE

main55404-16080-03iAL2#..DLX,SR5198408-198608

W/TILT STEERING,GRAY,GRAY

main55404-16080-05iAL2#..DLX,SR5198408-198608

W/TILT STEERING,BEIGE,BEIGE

main55404-16080-15iAL2#..WG;AL21..5DS..DLX198605-198801

W/TILT STEERING,BEIGE,DARK BEIGE

55401BCUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-16010iAL2#¥650198208-198801

55403HOOD SUB-ASSY, METER

main55403-16010-03iAL25..SR5198208-198408

GRAY,GRAY

sub55403-16020¥5,400

main55403-16010-06iAL25..SR5198208-198408

BROWN,BROWN

sub55403-16020¥5,400

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-16050-01iAL2#198608-198801

BLACK,BLACK

main55401-16050-02iAL21..SED198208-198608

DARK WINE,DARK WINE

main55401-16050-03iAL21;AL25..DLX198208-198408

GRAY,GRAY

main55401-16050-05iAL2#198408-198608

BEIGE,BEIGE

main55401-16050-06iAL25..SR5..CND198208-198408

BROWN,BROWN

main55401-16050-13iAL2#198408-198608

GRAY,GRAY

main55401-16050-15iAL2#..WG;AL21..5DS198605-198801

BEIGE,DARK BEIGE

main55401-16070-03iAL25..SR5198208-198408

W/CLINO METER,GRAY,GRAY

main55401-16070-06iAL25..SR5198208-198408

W/CLINO METER,BROWN,BROWN

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55409-16020-01iAL2#198608-198801

BLACK,BLACK

sub55409-16020¥4,600

main55409-16020-02iAL21..SED..(DLX,STD)198208-198608

DARK WINE,RED/MAROON

sub55409-16020¥4,600

main55409-16020-03iAL2#198208-198408

GRAY,GRAY

sub55409-16020¥4,600

main55409-16020-05iAL2#198408-198608

BEIGE,BEIGE

sub55409-16020¥4,600

main55409-16020-06iAL2#198208-198408

BROWN,BROWN

sub55409-16020¥4,600

main55409-16020-13iAL2#198408-198608

GRAY,GRAY

sub55409-16020¥4,600

main55409-16020-15iAL2#..WG;AL21..5DS198605-198801

BEIGE,DARK BEIGE

sub55409-16020¥4,600

55414BEZEL, CIGAR LIGHTER HOLE

main55477-16030iAL2#¥1,070198208-198408

main55477-16040iAL2#¥990198408-198801

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-16020iAL2#¥6,600198208-198408

sub55405-16021¥7,100

main55405-16021iAL2#¥7,100198608-198801

main55405-16030iAL2#¥7,100198408-198602

main55405-16031iAL2#¥7,100198602-198605

sub55405-16030¥7,100

main55405-16032iAL2#¥7,100198605-198608

sub55405-16030¥7,100

55425ABRACKET, METER HOOD SET

main55425-16030iAL2#¥880198208-198801

FR

main55426-16030iAL2#¥270198208-198801

RR

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55432-16030-01iAL2#..DLX..CND198608-198801

BLACK,BLACK

main55432-16030-02iAL21..SED..(DLX,STD)198208-198608

DARK WINE,RED/MAROON

main55432-16030-03iAL2#198208-198408

GRAY,GRAY

main55432-16030-05iAL21..SED..(DLX,STD)198408-198608

BEIGE,BEIGE

main55432-16030-06iAL2#198208-198408

BROWN,BROWN

main55432-16030-13iAL2#..DLX..CND..3AC198408-198608

GRAY,GRAY

main55432-16030-15iAL2#..DLX..CND..3AC198605-198801

BEIGE,DARK BEIGE

main55432-16050-01iAL2#198608-198801

W/TILT STEERING,BLACK,BLACK

sub55432-16050¥3,170

main55432-16050-02iAL21..SED..DLX198408-198608

W/TILT STEERING,DARK WINE,DARK WINE

sub55432-16050¥3,170

main55432-16050-03iAL2#..DLX,SR5198408-198608

W/TILT STEERING,GRAY,GRAY

sub55432-16050¥3,170

main55432-16050-05iAL21..3DS..DLX198408-198608

W/TILT STEERING,BEIGE,BEIGE

sub55432-16050¥3,170

main55432-16050-15iAL2#..WG;AL21..5DS..DLX198605-198801

W/TILT STEERING,BEIGE,DARK BEIGE

sub55432-16050¥3,170

55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1

main55437-16020iAL2#¥270198208-198801

55474CGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55474-16020iAL2#..SR5¥1,080198208-198801

main55474-16030iAL2#..DLX,STD¥1,080198208-198801

55475AGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2

main55475-16020iAL2#..SR5¥1,080198208-198801

main55475-16030iAL2#..DLX,STD¥1,080198208-198801

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-16010-02iAL21..SED198208-198408

DARK WINE,RED/MAROON

sub55560-16010¥3,450

main55560-16010-03iAL2#198208-198408

GRAY,GRAY

sub55560-16010¥3,450

main55560-16010-06iAL2#198208-198408

BROWN,BROWN

sub55560-16010¥3,450

main55560-16020-01iAL2#198608-198801

BLACK,BLACK

sub55560-16010¥3,450

sub55560-16020¥3,410

main55560-16020-02iAL21..SED..(DLX,STD)198408-198608

DARK WINE,DARK WINE

sub55560-16010¥3,450

sub55560-16020¥3,410

main55560-16020-03iAL2#198408-198608

GRAY,GRAY

sub55560-16010¥3,450

sub55560-16020¥3,410

main55560-16020-05iAL2#198408-198605

BEIGE,BEIGE

sub55560-16010¥3,450

sub55560-16020¥3,410

main55560-16020-15iAL2#..WG;AL21..5DS198605-198801

BEIGE,DARK BEIGE

sub55560-16010¥3,450

sub55560-16020¥3,410

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-16050-01iAL2#198608-198801

BLACK,BLACK

sub55550-16050¥16,300

main55550-16050-02iAL21..SED198208-198608

DARK WINE,RED/MAROON

sub55550-16050¥16,300

main55550-16050-03iAL2#198208-198408

GRAY,GRAY

sub55550-16050¥16,300

main55550-16050-05iAL2#198408-198608

BEIGE,BEIGE

sub55550-16050¥16,300

main55550-16050-06iAL2#198208-198408

BROWN,BROWN

sub55550-16050¥16,300

main55550-16050-13iAL2#198408-198608

GRAY,GRAY

sub55550-16050¥16,300

main55550-16050-15iAL2#..WG;AL21..5DS198605-198801

BEIGE,DARK BEIGE

sub55550-16050¥16,300

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iAL2#¥110198208-198801

55523COVER, HEATER CONTROL OPENING

main55523-16020iAL2#..USA¥2,160198208-198308

55524COVER, SWITCH BACE HOLE

main55524-16010iAL2#¥880198208-198801

55539COVER, SPARE SWITCH HOLE

main55539-16010iAL2#¥880198208-198801

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010iAL2#¥230198208-198408

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-16020iAL2#¥700198212-198801

sub55561-32010¥680

main55561-32010iAL2#¥680198208-198212

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-19025iAL25..3FC198608-198801

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-16040-02iAL21..SED198208-198408

DARK WINE,RED/MAROON

main55650-16040-03iAL2#198208-198408

GRAY,GRAY

main55650-16040-06iAL2#198208-198408

BROWN,BROWN

main55650-16050-02iAL21..SED..(DLX,STD)198408-198602

DARK WINE,DARK WINE

sub55650-16052¥2,710

main55650-16050-03iAL2#198408-198602

GRAY,GRAY

sub55650-16052¥2,710

main55650-16050-05iAL2#198408-198602

BEIGE,BEIGE

sub55650-16052¥2,710

main55650-16051-02iAL21..SED198602-198605

DARK WINE,DARK WINE

sub55650-16052¥2,710

main55650-16051-03iAL2#198602-198605

GRAY,GRAY

sub55650-16052¥2,710

main55650-16051-05iAL2#198602-198605

BEIGE,BEIGE

sub55650-16052¥2,710

main55650-16052-01iAL2#198608-198801

BLACK,BLACK

sub55650-16052¥2,710

main55650-16052-02iAL21..SED198605-198608

DARK WINE,DARK WINE

sub55650-16052¥2,710

main55650-16052-03iAL2#198605-198608

GRAY,GRAY

sub55650-16052¥2,710

main55650-16052-05iAL21..3DS198605-198608

BEIGE,BEIGE

sub55650-16052¥2,710

main55650-16052-15iAL2#..WG;AL21..5DS198605-198801

BEIGE,DARK BEIGE

sub55650-16052¥2,710

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-16020-02iAL21..SED198208-198408

DARK WINE,RED/MAROON

main55660-16020-03iAL2#198208-198408

GRAY,GRAY

main55660-16020-06iAL2#198208-198408

BROWN,BROWN

main55660-16030-02iAL21..SED..(DLX,STD)198408-198602

DARK WINE,DARK WINE

sub55660-16030¥2,950

main55660-16030-03iAL2#198408-198602

GRAY,GRAY

sub55660-16030¥2,950

main55660-16030-05iAL2#198408-198602

BEIGE,BEIGE

sub55660-16030¥2,950

main55660-16031-02iAL21..SED198602-198605

DARK WINE,DARK WINE

main55660-16031-03iAL2#198602-198605

GRAY,GRAY

main55660-16031-05iAL2#198602-198605

BEIGE,BEIGE

main55660-16032-01iAL2#198608-198801

BLACK,BLACK

sub55660-16032¥2,940

main55660-16032-02iAL21..SED198605-198608

DARK WINE,DARK WINE

sub55660-16032¥2,940

main55660-16032-03iAL2#198605-198608

GRAY,GRAY

sub55660-16032¥2,940

main55660-16032-05iAL21..3DS198605-198608

BEIGE,BEIGE

sub55660-16032¥2,940

main55660-16032-15iAL2#..WG;AL21..5DS198605-198801

BEIGE,DARK BEIGE

sub55660-16032¥2,940

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-16010-01iAL2#198608-198801

BLACK,BLACK

sub55961-16010¥660

main55961-16010-02iAL21..SED..(DLX,STD)198208-198608

DARK WINE,RED/MAROON

sub55961-16010¥660

main55961-16010-03iAL2#198208-198408

GRAY,GRAY

sub55961-16010¥660

main55961-16010-05iAL2#198408-198608

BEIGE,BEIGE

sub55961-16010¥660

main55961-16010-06iAL2#198208-198408

BROWN,BROWN

sub55961-16010¥660

main55961-16010-13iAL2#198408-198608

GRAY,GRAY

sub55961-16010¥660

main55961-16010-15iAL2#..WG;AL21..5DS198605-198801

BEIGE,DARK BEIGE

sub55961-16010¥660

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-16010-01iAL2#198608-198801

BLACK,BLACK

sub55962-16010¥660

main55962-16010-02iAL21..SED..(DLX,STD)198208-198608

DARK WINE,RED/MAROON

sub55962-16010¥660

main55962-16010-03iAL2#198208-198408

GRAY,GRAY

sub55962-16010¥660

main55962-16010-05iAL2#198408-198608

BEIGE,BEIGE

sub55962-16010¥660

main55962-16010-06iAL2#198208-198408

BROWN,BROWN

sub55962-16010¥660

main55962-16010-13iAL2#198408-198608

GRAY,GRAY

sub55962-16010¥660

main55962-16010-15iAL2#..WG;AL21..5DS198605-198801

BEIGE,DARK BEIGE

sub55962-16010¥660

9011906022

main90119-06022¥130

9011906051

main90119-06051¥160

9015140005

main90151-40005¥90

9015950184

main90159-50184¥110

9016126007

main90161-26007¥120

9017906097

main90179-06097¥320

9017908063

main90179-08063¥160

9018305009

main90183-05009¥90

9018305094

main90183-05094¥90

9018905024

main90189-05024¥130

9046714002

main90467-14002¥540

9046804063

main90468-04063¥140

9046804067

main90468-04067¥240

9054103015

main90541-03015¥110

9165660818

main91656-60818¥140

9353054010

main93530-54010¥70

9356755014

main93567-55014¥110

9356755016

main93567-55016¥110

9356855014

main93568-55014¥70

50 parts on this diagram · 1 diagram in section
