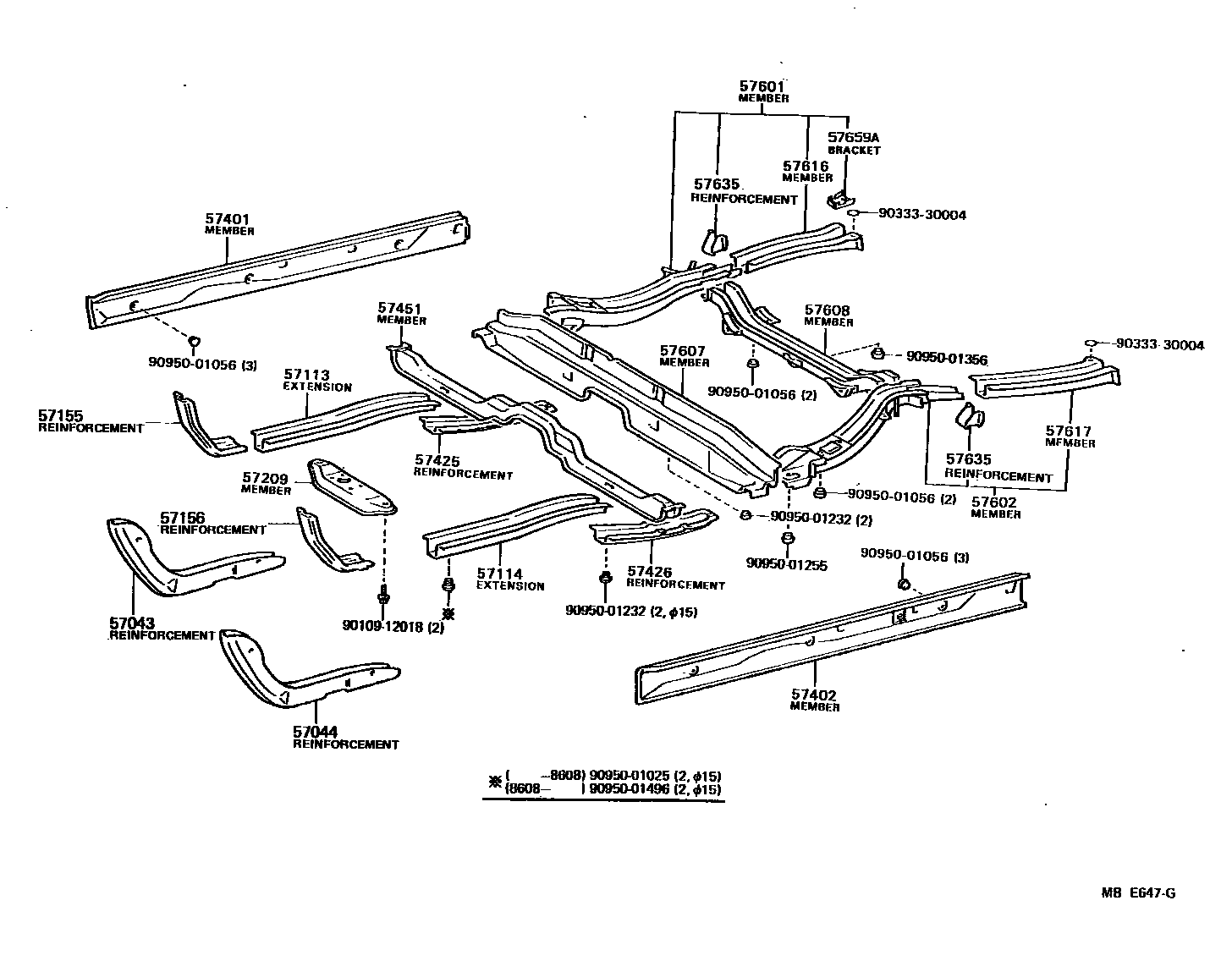

FLOOR SIDE MEMBER

0001 1 0002 1

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-16010iAL2#198208-198801

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-16010iAL2#198208-198801

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-16040iAL2#198208-198801

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-16040iAL2#198208-198801

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-16010iAL2#198208-198801

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-16030iAL2#198208-198801

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-16040iAL21..MTM198208-198708

main57209-16050iAL25198208-198801

main57209-16060iAL21..3FC198208-198306

main57209-16080iAL21..3FC198306-198708

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-16090iAL21..SED198208-198608

main57401-16100iAL25198208-198801

main57401-16120iAL21..WG198308-198708

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-16090iAL21..SED198208-198608

main57402-16100iAL25198208-198801

main57402-16120iAL21..WG198308-198708

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-16020iAL2#198208-198801

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-16020iAL2#198208-198801

57451MEMBER, FRONT FLOOR CROSS

main57408-16010iAL25198208-198801

main57408-16020iAL21198208-198708

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-16050iAL21..SED198208-198608

main57601-16110iAL25198208-198708

sub57601-16111

sub90333-20001

sub90950-01298

main57601-16111iAL25198708-198801

main57601-16120iAL21..WG198308-198708

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-16050iAL21..SED198208-198608

main57602-16110iAL25198208-198708

sub57602-16111

sub90950-01491

main57602-16111iAL25198708-198801

main57602-16120iAL21..WG198308-198708

57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1

main57605-16010iAL21198208-198708

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57606-16040iAL21198208-198708

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-16901iAL21..SED198208-198608

main57615-16903iAL21..WG198308-198708

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-16901iAL21..SED198208-198608

main57616-16903iAL21..WG198308-198708

57635REINFORCEMENT, REAR FLOOR SIDE MEMBER

main57635-16010iAL21..SED198208-198608

RH

main57636-16010iAL21..SED198208-198608

LH

57659ABRACKET, EXHAUST PIPE MOUNTING

main57659-16010iAL21..SED198208-198608

9010912018

main90109-12018

9033330004

main90333-30004

9095001025

main90950-01025

9095001056

main90950-01056

9095001232

main90950-01232

9095001255

main90950-01255

9095001356

main90950-01356

9095001496

main90950-01496

28 parts on this diagram · 2 diagrams in section
