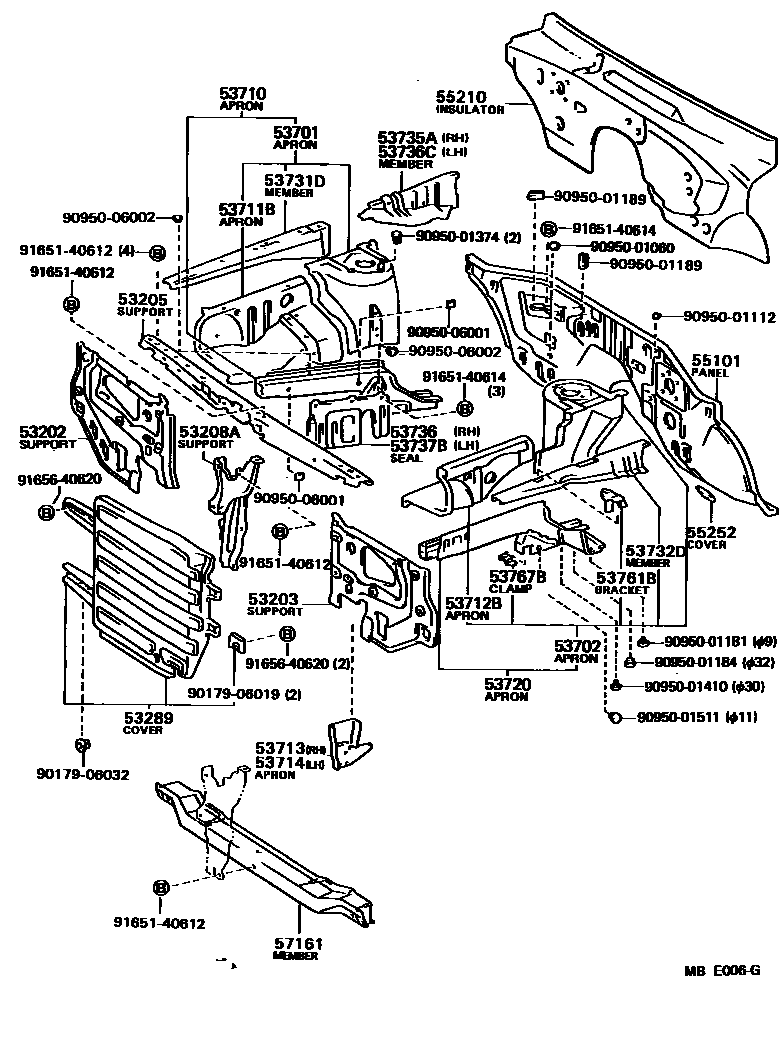

FRONT FENDER APRON & DASH PANEL
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53289COVER, RADIATOR SIDE BAFFLE
53701APRON SUB-ASSY, FRONT FENDER, RH
W/CRUISE CONTROL
53702APRON SUB-ASSY, FRONT FENDER, LH
53710APRON ASSY, W/FRONT SIDE MEMBER, RH
53712BAPRON, FRONT FENDER, FRONT LH
53713APRON, FENDER SIDE, RH
53714APRON, FENDER SIDE, LH
53720APRON ASSY, W/FRONT SIDE MEMBER, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53736SEAL, FRONT FENDER APRON, RH
53737BSEAL, FRONT FENDER APRON, LH
53761BBRACKET, BATTERY CLAMP MOUNTING
53767BBRACKET, BATTERY WIRRING HARNESS
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55252COVER, DASH PANEL HOLE
57161CROSSMEMBER, FRONT
9017906019
main90179-06019
9017906032
main90179-06032
9095001060
main90950-01060
9095001112
main90950-01112
9095001181
main90950-01181
9095001184
main90950-01184
9095001189
main90950-01189
9095001374
main90950-01374
9095001410
main90950-01410
9095001511
main90950-01511
9095006001
main90950-06001
9095006002
main90950-06002
9165140612
main91651-40612
9165140614
main91651-40614
9165640620
main91656-40620
40 parts on this diagram · 1 diagram in section
