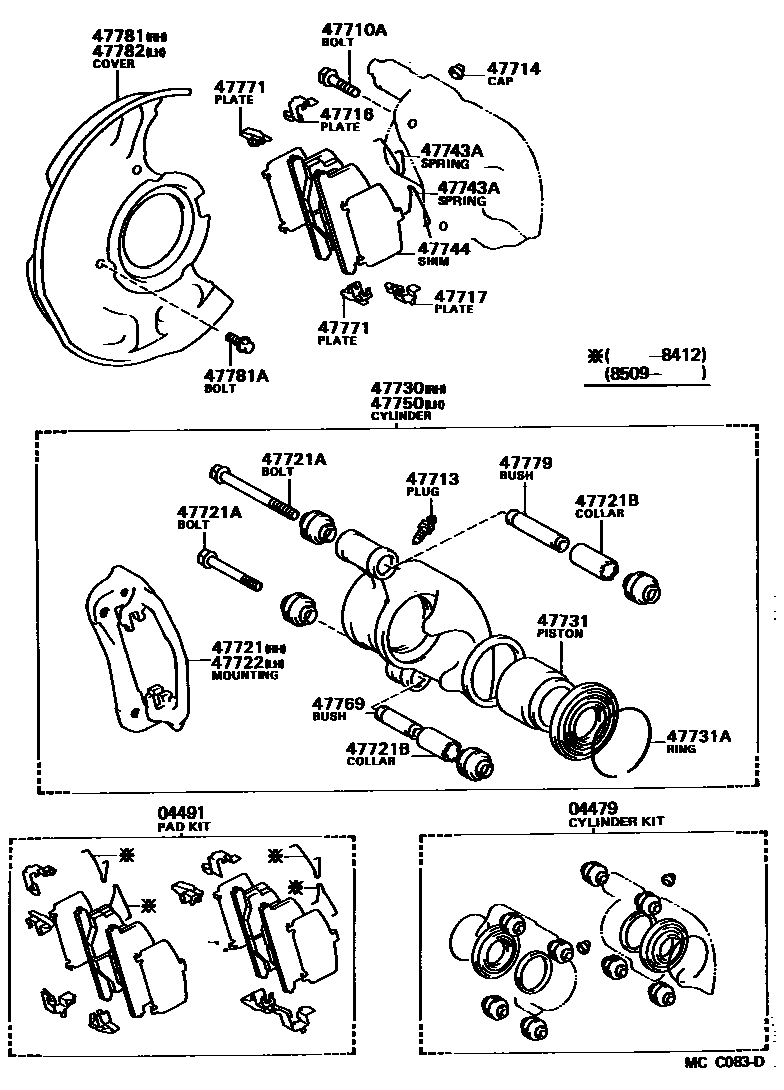

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-16020iAL2#198208-198501

sub04479-16021

main04479-16021iAL2#198501-198801

04491PAD KIT, DISC BRAKE, FRONT

main04491-12241iAL2#..CND198412-198602

sub04491-12240

sub04491-16060

main04491-16050iAL2#198208-198412

sub04491-16051

main04491-16051iAL2#..USA198412-198509

sub04491-16110

main04491-16060iAL2#..CND198410-198608

sub04491-16061

main04491-16110iAL2#198509-198801

sub04491-16111

main04491-16120iAL2#..CND198610-198801

sub04491-16121

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iAL2#198208-198801

*12-1.25PX25.8-19.5

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAL2#198208-198801

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAL2#198208-198801

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32010iAL2#198208-198801

sub47716-32031

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32010iAL2#198208-198801

sub47717-32031

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-16010iAL2#198208-198801

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iAL2#198208-198801

*9-1.25PX71-25,*9-1.25PX73-25

main90119-09004iAL2#198208-198801

*9-1.25PX91-25,*9-1.25PX93-25

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-15004iAL2#198208-198705

L=12

main90387-15005iAL2#198208-198705

L=32

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-16010iAL2#198208-198801

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-16040iAL2#198208-198801

47731PISTON, FRONT DISC BRAKE

main47731-16020iAL2#198208-198801

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iAL2#198208-198801

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-16010iAL2#198208-198801

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-32010iAL2#198208-198801

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-16040iAL2#198208-198801

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iAL2#198705-198801

main47769-16010iAL2#198208-198705

sub47769-12030

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010iAL2#198208-198801

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010iAL2#198208-198801

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-16030iAL2#198208-198401

main47781-16031iAL2#..USA198401-198801

main47781-16040iAL2#..CND198501-198801

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06196iAL2#198208-198801

sub91611-G0612

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-16030iAL2#198208-198401

main47782-16031iAL2#198401-198801

main47782-16040iAL2#..CND198501-198801
