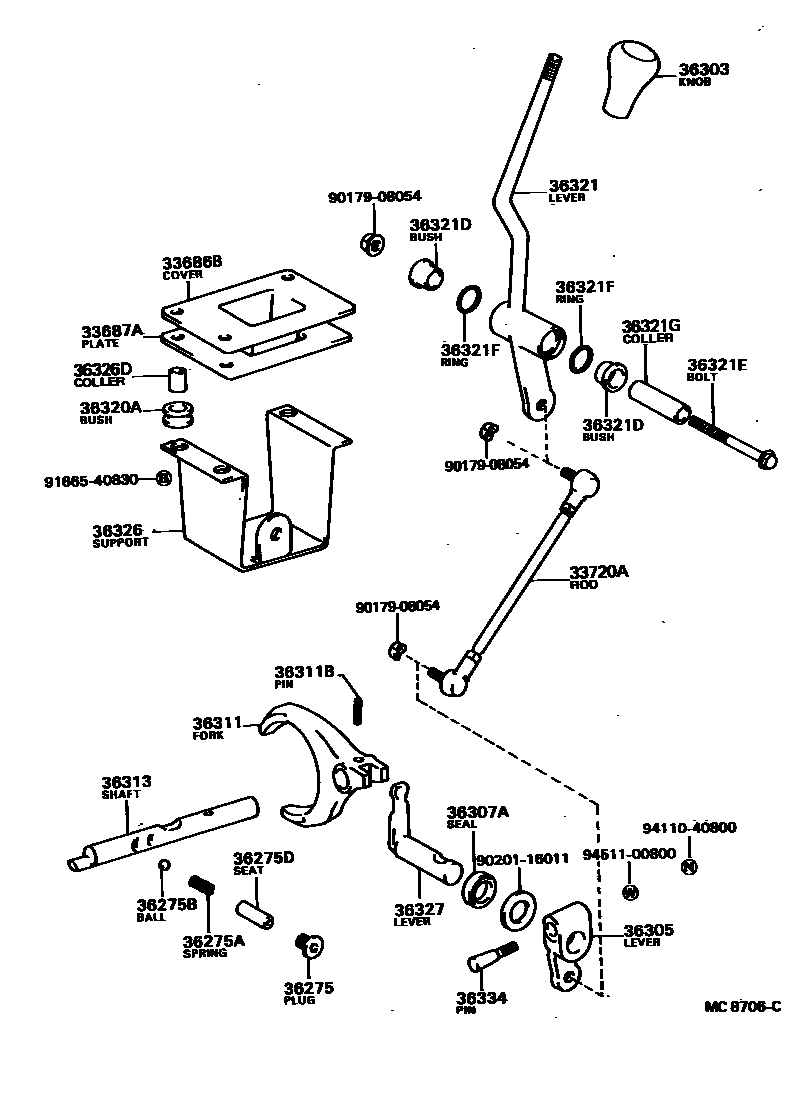

TRANSFER LEVER & SHIFT ROD
33686BCOVER, CONTROL LEVER DUST
33687APLATE, CONTROL LEVER DUST
33720AROD ASSY, GEAR SELECTING
sub33710-26H91
36275PLUG, SHIFT DETENT BALL SPRING
36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)
L=16.5
36275BBALL, SHIFT DETENT
OD=7.94,STEEL
36275DSEAT, SHIFT DETENT BALL SPRING
36303KNOB SUB-ASSY, SHIFT LEVER
36305LEVER SUB-ASSY, FRONT DRIVE SHIFT LINK
36307ASEAL, OIL (FOR HIGH & LOW SHIFT INNER LEVER)
36311FORK, TRANSFER GEAR SHIFT, NO.1
36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
L=22
36313SHAFT, TRANSFER FRONT DRIVE SHIFT
36321LEVER, TRANSFER FRONT DRIVE SHIFT
36321DBUSH (FOR TRANSFER SHIFT LEVER)
36321ESHAFT, TRANSFER SHIFT LEVER
36321FRING, O (FOR TRANSFER SHIFT LEVER)
36321GCOLLER (FOR TRANSFER SHIFT LEVER)
36326SUPPORT, TRANSFER SHIFT LEVER
36326DCOLLER (FOR TRANSFER SHIFT LEVER SUPPORT)
36327SHAFT, TRANSFER SHIFT LEVER
36334PIN, SHIFT LEVER, NO.1
9017908054
main90179-08054
9020116011
main90201-16011
9166540830
main91665-40830
9411040800
main94110-40800
9451100800
main94511-00800
28 parts on this diagram · 1 diagram in section
