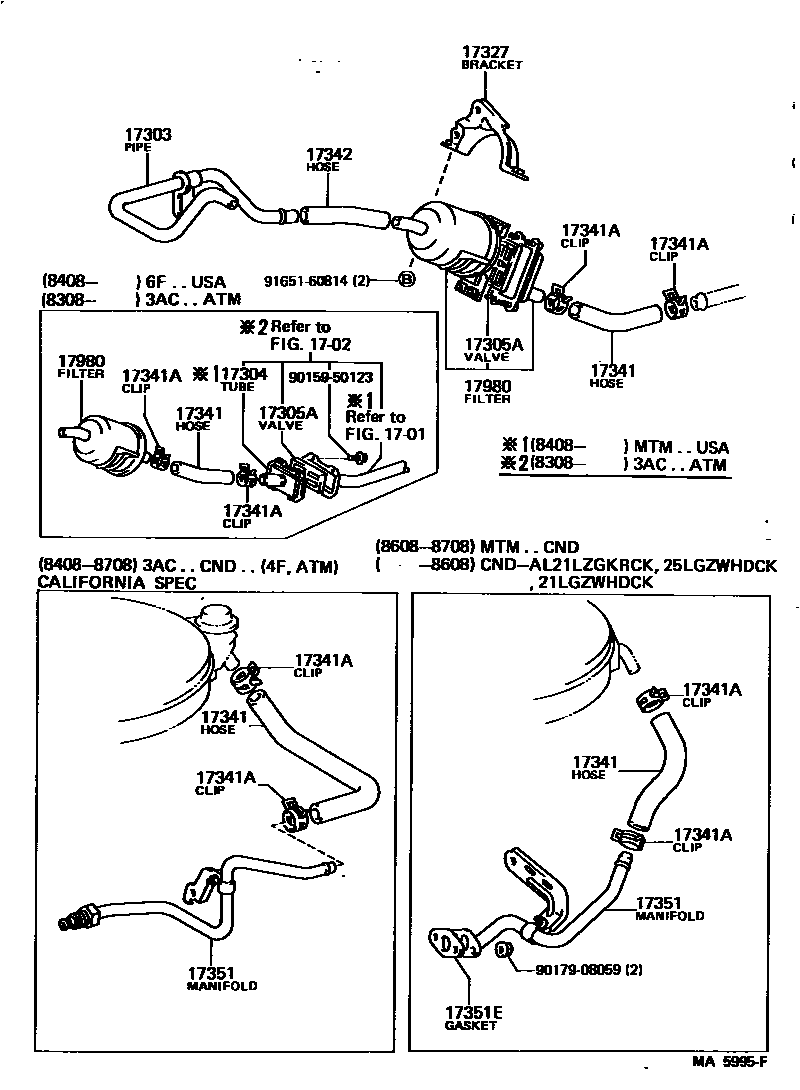

MANIFOLD AIR INJECTION SYSTEM

1701

1702

17303PIPE SUB-ASSY, AIR

main17303-15040i3AC..AL2#..USA198208-198801

17304TUBE SUB-ASSY, AIR, RH

main17304-15010i3AC..AL25..6F..USA198408-198801

17305AVALVE SUB-ASSY, REED

main17305-15010i3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND198208-198801

17327BRACKET, REED VALVE

main17327-15030i3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND198208-198801

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-15070i3AC..AL2#..(3FC,4F)..CND198408-198708

main17341-15070i3AC..AL2#..USA198208-198801

CALIFORNIA SPEC

main17341-15090i3A..AL21;3AC..AL2#..WG..MTM..CND198208-198708

main90445-31016i3AC..AL21;3AC..AL25..USA198208-198708

main90445-31017i3AC..AL2#..(3FC,6F)..USA198308-198801

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-23003i3AC..AL2#..(3FC,4F)..CND198408-198708

sub96134-42300

main90467-23003i3AC..AL2#..USA198208-198801

CALIFORNIA SPEC

sub96134-42300

main90467-28003i3AC..AL2#..MTM..CND198208-198801

sub90467-28007

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main90445-15007i3AC..AL2#..USA198208-198801

17351MANIFOLD, AIR INJECTION

main17306-15030i3AC..AL2#..USA198208-198801

CALIFORNIA SPEC

main17306-15030i3AC..AL2#..(3FC,4F)..CND198408-198708

main17306-15040i3A..AL21;3AC..AL2#..WG..MTM..CND198208-198708

17351EGASKET(FOR AIR INJECTION MANIFOLD)

main89466-30010i3A..AL21;3AC..AL2#..WG..MTM..CND198208-198708

sub89466-20020

17980FILTER ASSY, AIR SUCTION

main17980-15030i3AC..AL21;3AC..AL25..USA198208-198708

main17980-15040i3AC..AL2#..3FC198308-198801

9015950123

main90159-50123

9017908059

main90179-08059

9165160814

main91651-60814

15 parts on this diagram · 1 diagram in section
