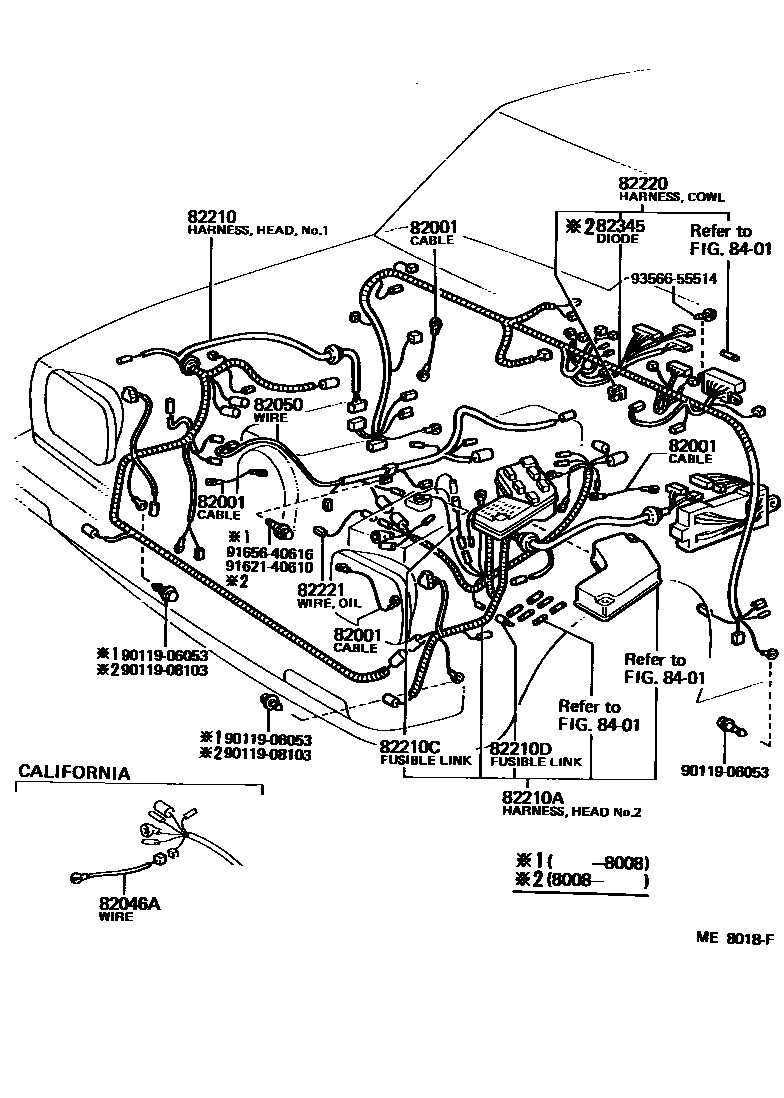

WIRING & CLAMP
82001CABLE, BOND, NO.1
L=320
L=400
L=280
L=270
L=120
L=460
82046WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH
L=610,W/DEFOGGER
L=160,W/DEFOGGER
82046AWIRE SUB-ASSY, BODY GROUND, NO.1
CALIFORNIA SPEC
82050WIRE ASSY, ENGINE
CALIFORNIA SPEC
CALIFORNIA SPEC
82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
CALIFORNIA SPEC
82210AHARNESS ASSY, WIRING COWL TO HEADLAMP, NO.2
COLD SPEC
COLD SPEC
82210CFUSIBLE LINK
82345DIODE
sub82345-12020
8401
9011906053
main90119-06053
9011908103
main90119-08103
9162140610
main91621-40610
9165640616
main91656-40616
9356655514
main93566-55514
17 parts on this diagram · 4 diagrams in section
