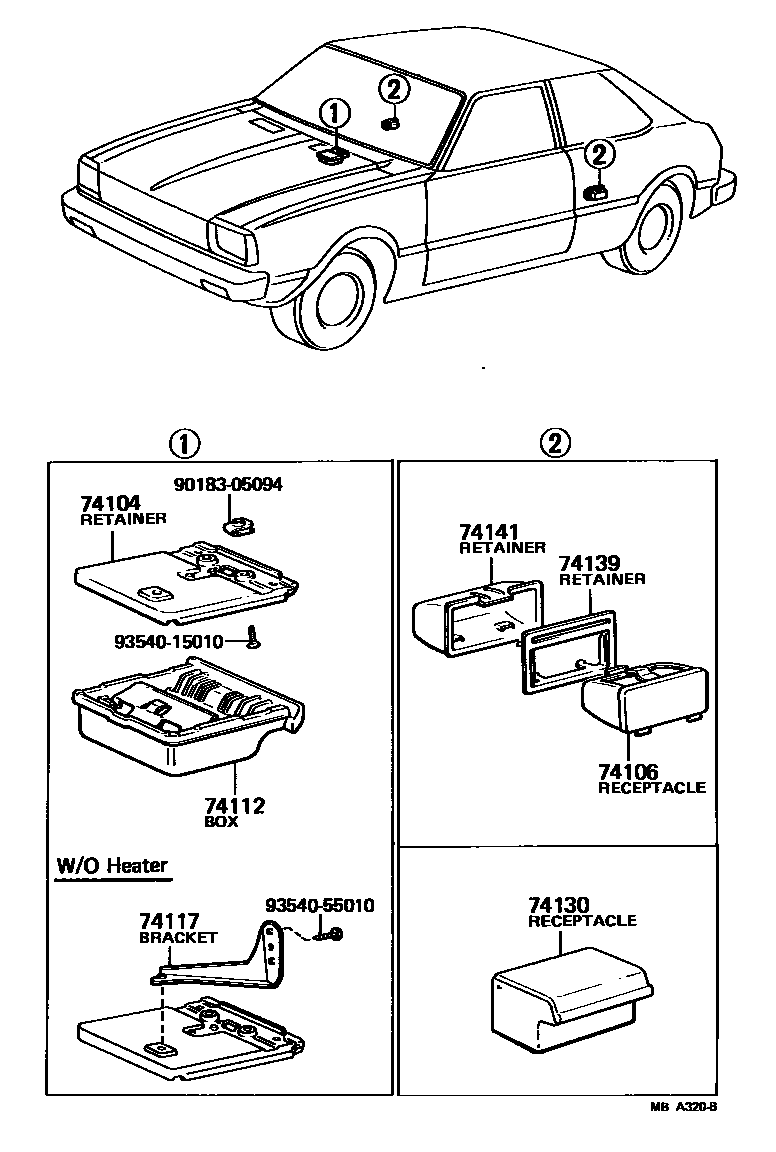

ASH RECEPTACLE

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-16010iAL1#197908-198207

74106RECEPTACLE SUB-ASSY, ASH, NO.2

main74105-10010-01iAL1#..STD197908-198207

BLACK,BLACK

sub74105-10010

main74105-10010-04iAL12..(3DS,4DS)..STD;AL12..2DS..(3FC,5F)..USA197908-198207

BLUE,BLUE

sub74105-10010

main74105-10010-06iAL1#..STD197908-198008

LIGHT BROWN,BROWN

sub74105-10010

main74105-10010-16iAL12..(3DS,4DS)..STD;AL12..2DS..(3FC,5F)..USA198008-198207

LIGHT BROWN,BROWN

sub74105-10010

74112BOX, ASH RECEPTACLE, NO.1

main74102-16010-01iAL1#197908-198207

BLACK,BLACK

main74102-16010-04iAL1#197908-198207

BLUE,BLUE

main74102-16010-06iAL1#197908-198008

LIGHT BROWN,BROWN

main74102-16010-16iAL12198008-198207

LIGHT BROWN,BROWN

74117BRACKET, FRONT ASH RECEPTACLE MOUNTING

main74117-16010iAL12197908-198207

74130RECEPTACLE ASSY, REAR ASH

main74130-16010-01iAL12..DLX,SR5198105-198207

BLACK,BLACK

sub74130-20060

main74130-16010-04iAL12..DLX,SR5198105-198207

BLUE,BLUE

sub74130-20060

main74130-16010-06iAL12..DLX,SR5198105-198207

LIGHT BROWN,BROWN

sub74130-20060

main74130-20060-01iAL1#..DLX,SR5197908-198105

BLACK,BLACK

sub74130-16010

sub74130-20060

main74130-20060-04iAL1#..DLX,SR5197908-198105

BLUE,BLUE

sub74130-16010

sub74130-20060

main74130-20060-16iAL1#..DLX,SR5197908-198008

LIGHT BROWN,BROWN

sub74130-16010

sub74130-20060

main74130-20060-46iAL12..DLX,SR5198008-198105

LIGHT BROWN,BROWN

sub74130-16010

sub74130-20060

74139RETAINER, REAR ASH RECEPTACLE, OUTER

main74135-10030iAL1#..STD197908-198207

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74137-10030iAL1#..STD197908-198207

9018305094

main90183-05094

9354015010

main93540-15010

9354055010

main93540-55010

10 parts on this diagram · 1 diagram in section
