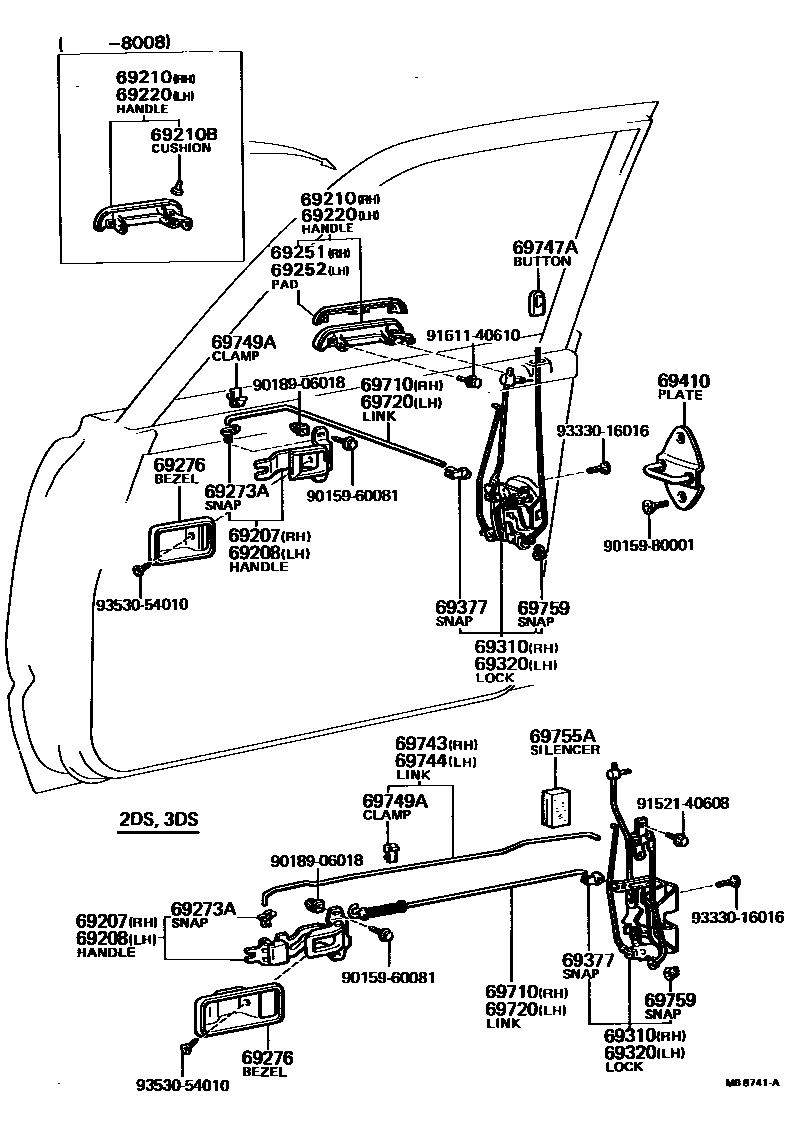

FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
RH
LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69377SNAP, FRONT DOOR LOCK CONTROL ROD
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
sub69741-32010
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69755ASILENCER, FRONT DOOR LOCK LINK
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
9015960081
main90159-60081
9015980001
main90159-80001
9018906018
main90189-06018
9152140608
main91521-40608
9161140610
main91611-40610
9333016016
main93330-16016
9353054010
main93530-54010
28 parts on this diagram · 1 diagram in section
