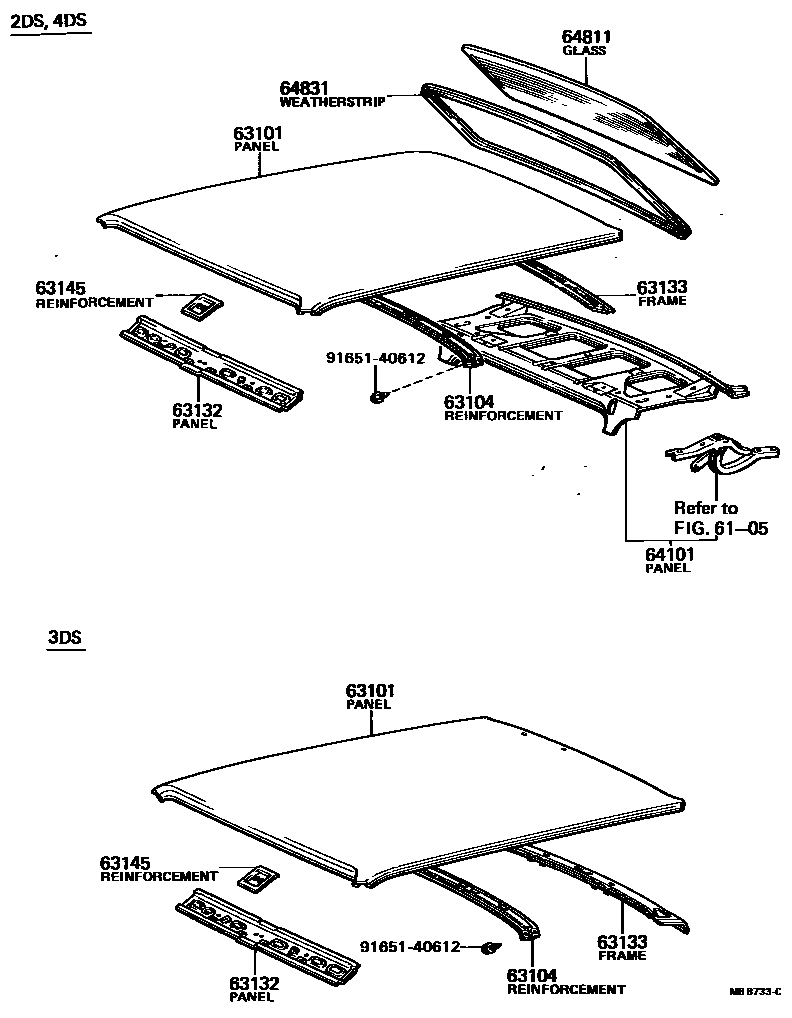

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

6105

63101PANEL SUB-ASSY, ROOF

main63111-16010iAL1#..3DS197908-198207

W/RR WIPER

main63111-16020iAL1#..2DS,4DS197908-198207

main63111-16030iAL1#..3DS197908-198207

main63111-16040iAL12..3DS198008-198207

W/SUN ROOF & RR WIPER

main63111-16050iAL12..3DS198008-198207

W/SUN ROOF

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-16010iAL1#197908-198207

63132PANEL, WINDSHIELD HEADER, INNER

main63132-16010iAL1#197908-198207

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-16010iAL1#..3DS197908-198207

main63133-16010iAL1#..2DS,4DS197908-198207

63145REINFORCEMENT, WINDSHIELD HEADER INNER PANEL

main63145-16010iAL1#197908-198207

64101PANEL SUB-ASSY, UPPER BACK

main64101-16010iAL1#..2DS,4DS197908-198207

64811GLASS, BACK WINDOW

main64811-16010iAL10..2DS..(3FC,5F)..STD197908-198207

*TEM,T=4.0

sub64811-16070

main64811-16020iAL12..(3FC,5F)..STD..USA197908-198207

*TT,T=4.0

sub64811-16120

main64811-16030iAL12..(3FC,5F)..STD..USA197908-198207

*EHTT,T=4.0,*DEF=100W

sub64811-16100

main64811-16040iAL10..2DS..STD..USA;AL12..(3FC,5F)..STD..USA197908-198207

*EHT,T=4.0,*DEF=100W

sub64811-16080

main64811-16050iAL12..2DS..(3FC,5F)..STD..USA197908-198207

*EHT,T=4.0,*DEF=180W

sub64811-16090

main64811-16060iAL1#..2DS..DLX197908-198207

*EHTT,T=4.0,*DEF=180W

main64811-16070iAL10..4F..USA197908-198008

*TEM,T=3.5

sub64811-16100

main64811-16090iAL10..4F;AL12..2DS197908-198008

*EHT,T=3.5,*DEF=180W

sub64811-16100

main64811-16160iAL12..3AC;AL12..4F..USA198008-198207

*EHT,T=4.0,*DEF=140W

sub64811-16100

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-16010iAL12..(3FC,5F)..STD..USA197908-198207

W/MOULDING

main64812-16020iAL12..2DS,4DS197908-198207

9165140612

main91651-40612

10 parts on this diagram · 2 diagrams in section
