SIDE MEMBER
53767ABRACKET, BATTERY WIRRING HARNESS
61101PANEL SUB-ASSY, COWL SIDE, RH
sub61101-16010
61103PILLAR SUB-ASSY, FRONT BODY, RH
sub61021-16020
61104PILLAR SUB-ASSY, FRONT BODY, LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61223CHANNEL, ROOF DRIP, FRONT RH
61224CHANNEL, ROOF DRIP, FRONT LH
61227CHANNEL, ROOF DRIP SIDE, REAR RH
61228CHANNEL, ROOF DRIP SIDE, REAR LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61277JOINT, ROOF DRIP CHANNEL, FRONT RH
61278JOINT, ROOF DRIP CHANNEL, FRONT LH
61315RETAINER, DOOR LOCK STRIKER PLATE
RH
LH
61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61411CEXTENSION, ROCKER, OUTER RH
61412AREINFORCEMENT, ROCKER PANEL, NO.1 LH
RH
LH
61412BREINFORCEMENT, ROCKER PANEL, NO.2
RH
LH
61412CEXTENSION, ROCKER, OUTER LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61613AEXTENSION, QUARTER PANEL REAR, RH
61614AEXTENSION, QUARTER PANEL, REAR LH
61615TROUGH, LUGGAGE COMPARTMENT OPENING, RH
61616TROUGH, LUGGAGE COMPARTMENT OPENING, LH
61631PANEL, QUARTER WHEEL HOUSE, RH
INNER,RR SEPARATE SEAT
INNER
OUTER
OUTER
61632PANEL, QUARTER WHEEL HOUSE, LH
INNER,RR SEPARATE SEAT
INNER
OUTER
OUTER
61633EXTENSION, WHEEL HOUSE, RH
61634EXTENSION, WHEEL HOUSE, LH
61637BRACE, QUARTER WHEEL HOUSE, RH
61638BRACE, QUARTER WHEEL HOUSE, LH
61687BRACKET, MUDGUARD, REAR RH
61688BRACKET, MUDGUARD, REAR LH
61705CREINFORCEMENT, SEAT BELT ANCHORAGE, REAR RH
61706CREINFORCEMENT, SEAT BELT ANCHORAGE, REAR LH
61725BOX, FUEL INLET
61733GUSSET, QUARTER, INNER RH
61734GUSSET, QUARTER, INNER LH
61769RETAINER, QUARTER TRIM, LOWER
61771AGUSSET, BACK WINDOW OPENING, RH
61772AGUSSET, BACK WINDOW OPENING, LH
61785BRACKET, FUEL TANK VENT
64211STRAINER, PACKAGE TRAY TO FLOOR, RH
64212STRAINER, PACKAGE TRAY TO FLOOR, LH
9095001056
main90950-01056

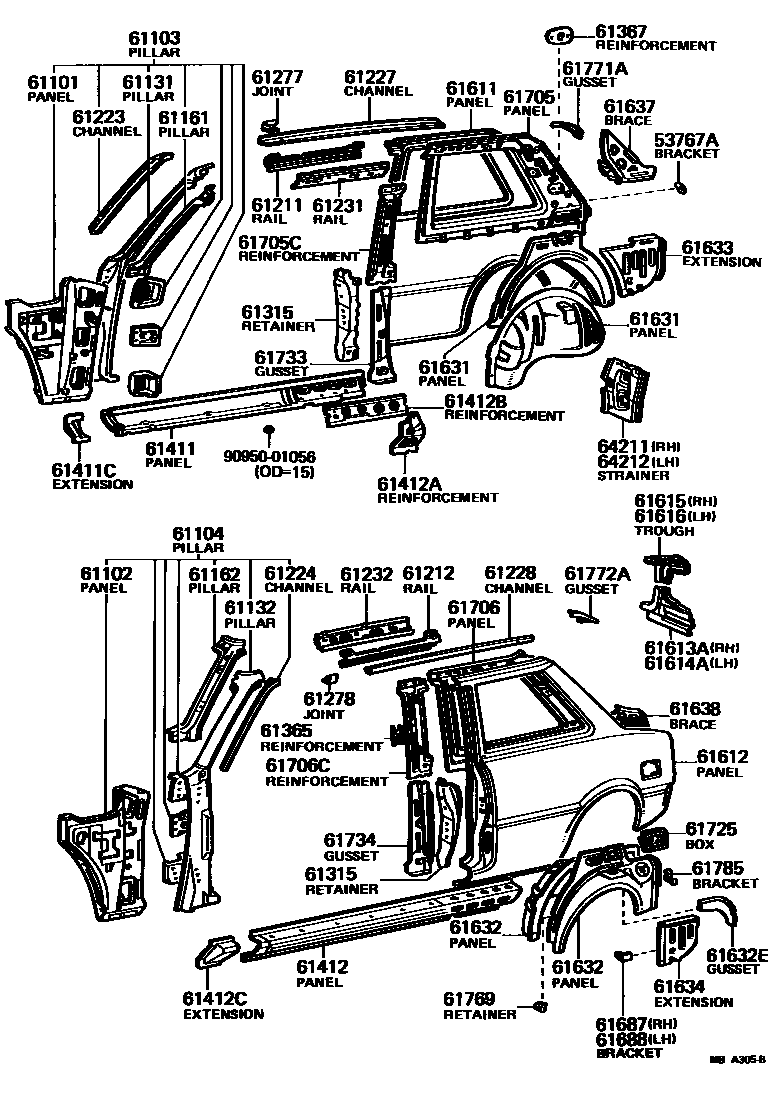

57 parts on this diagram · 3 diagrams in section
