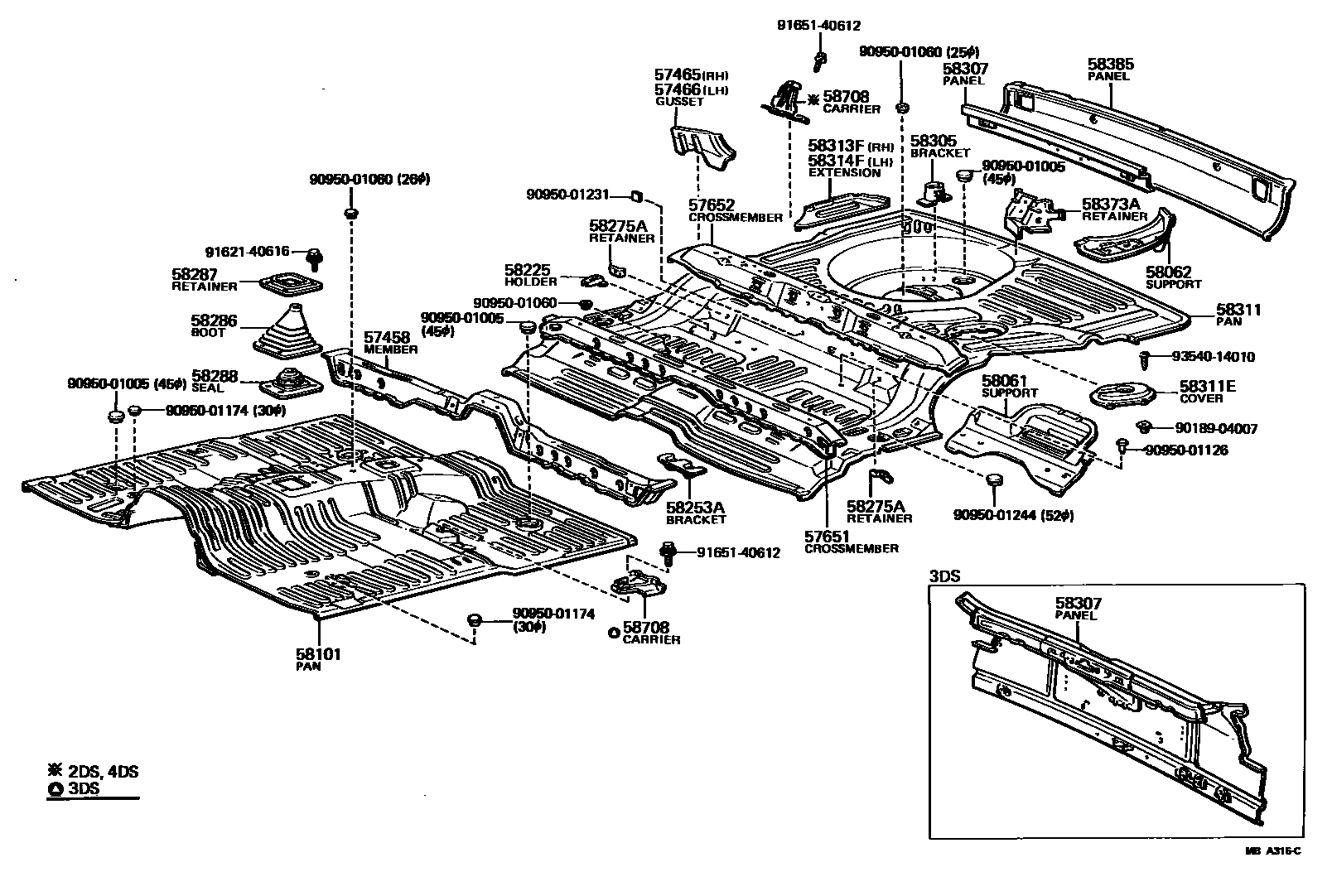

FLOOR PAN & LOWER BACK PANEL
57458MEMBER, FRONT FLOOR CROSS, NO.1
57465GUSSET, CENTER FLOOR CROSSMEMBER, REAR, RH
57466GUSSET, CENTER FLOOR CROSSMEMBER, REAR, LH
57651CROSSMEMBER, REAR FLOOR, FRONT
57652CROSSMEMBER, REAR FLOOR, NO.2
58062SUPPORT SUB-ASSY, FUEL TANK, REAR
58101PAN SUB-ASSY, FRONT FLOOR
58225HOLDER, REAR SEAT CUSHION
58253ABRACKET, PARKING CABLE CLAMP
58275ARETAINER, REAR SEATBACK TO CENTER FLOOR
RH
LH
58286BOOT, SHIFT & SELECT LEVER, NO.1
58287RETAINER, SHIFT LEVER BOOT
58288SEAL, SHIFT LEVER BOOT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311ECOVER, REAR FLOOR SERVICE HOLE
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58373ARETAINER, LUGGAGE COMPARTMENT DOOR LOOK STRIKER
58385PANEL, REAR VALANCE
58708CARRIER SUB-ASSY, JACK
9018904007
main90189-04007
9095001005
main90950-01005
9095001060
main90950-01060
9095001126
main90950-01126
9095001174
main90950-01174
9095001231
main90950-01231
9095001244
main90950-01244
9162140616
main91621-40616
9165140612
main91651-40612
9354014010
main93540-14010
33 parts on this diagram · 1 diagram in section
