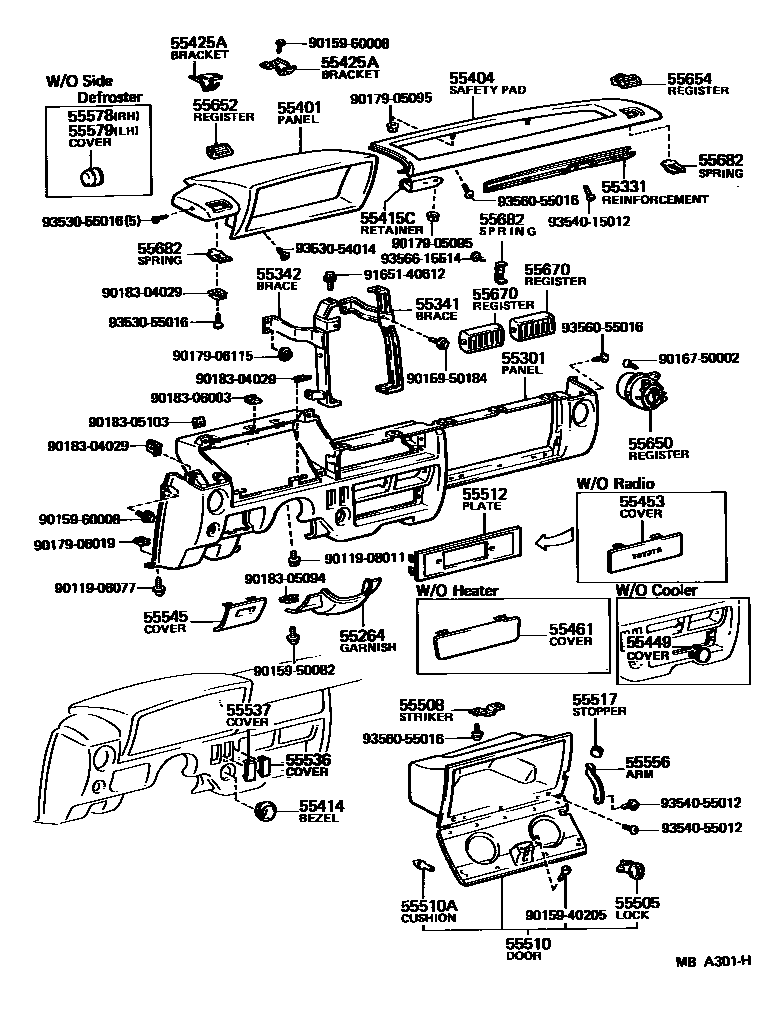

INSTRUMENT PANEL & GLOVE COMPARTMENT
55264GARNISH, STEERING COLUMN
55301PANEL SUB-ASSY, INSTRUMENT
55331REINFORCEMENT, INSTRUMENT PANEL
55341BRACE, INSTRUMENT PANEL, NO.1
55342BRACE, INSTRUMENT PANEL, NO.2
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55414BEZEL, CIGAR LIGHTER HOLE
55415CRETAINER,INSTRUMENT CLUSTER FINISH PANEL
55449COVER, COOLER SWITCH HOLE
W/O COOLER
55453COVER, RADIO TUNER OPENING
55461COVER, HEATER CONTROL HOLE
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
55508STRIKER SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK
55510DOOR ASSY, GLOVE COMPARTMENT
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55512PLATE, RADIO TUNER FINISH
W/RADIO
55517STOPPER, GLOVE COMPARTMENT DOOR ARM
55536COVER, REAR WINDOW WIPER SWITCH HOLE
55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE
55545COVER, FUSE BOX OPENING
55556ARM, GLOVE COMPARTMENT DOOR CHECK
55578COVER, SIDE DEFROSTER OPENING, RH
55579COVER, SIDE DEFROSTER OPENING, LH
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55652REGISTER, INSTRUMENT PANEL, NO.2
55654REGISTER, INSTRUMENT PANEL, NO.4
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT
NO.2 & NO.4 REGISTER
CTR
9011906077
main90119-06077
9011908011
main90119-08011
9015940205
main90159-40205
9015950082
main90159-50082
9015950184
main90159-50184
9015960008
main90159-60008
9016750002
main90167-50002
9017905095
main90179-05095
9017906019
main90179-06019
9017906115
main90179-06115
9018304029
main90183-04029
9018305094
main90183-05094
9018305103
main90183-05103
9018306003
main90183-06003
9165140612
main91651-40612
9353054014
main93530-54014
9353055016
main93530-55016
9354015012
main93540-15012
9354055012
main93540-55012
9356055016
main93560-55016
9356615514
main93566-15514
51 parts on this diagram · 1 diagram in section
