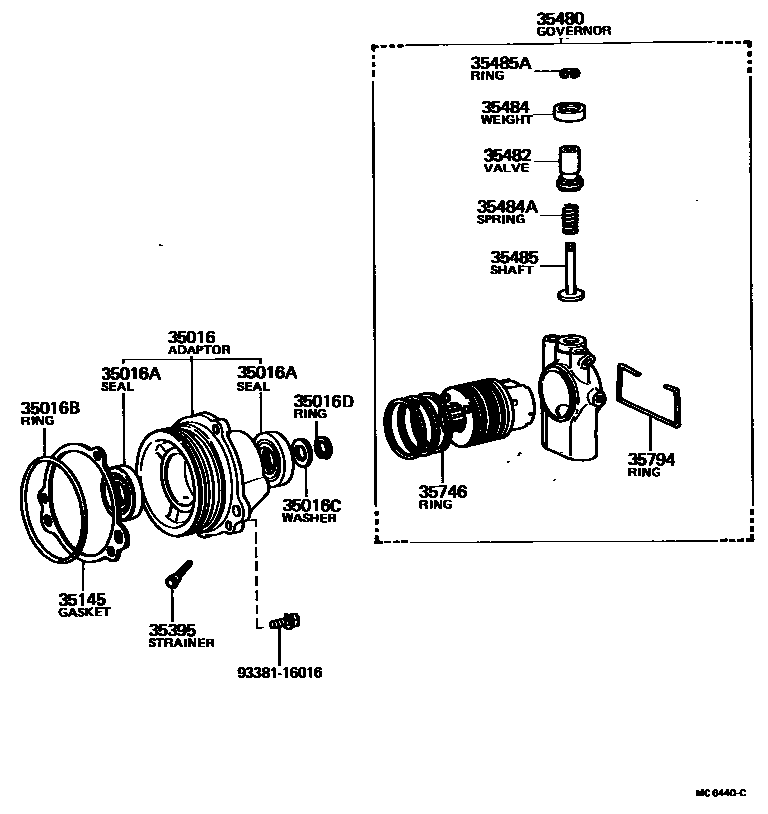

REAR OIL PUMP & GOVERNOR (ATM)

35016ADAPTER SUB-ASSY, GOVERNOR PRESSURE

main35016-16010iAL1#..3FC197908-198207

35016ASEAL, TYPE S OIL(FOR GOVERNOR PRESSURE ADAPTER)

main90310-23001iAL1#..3FC197908-198207

35016BRING, O(FOR GOVERNOR PRESSURE ADAPTER)

main90301-64003iAL1#..3FC197908-198207

35016CWASHER, PLATE(FOR GOVERNOR PRESSURE ADAPTER)

main90201-11007iAL1#..3FC197908-198207

35016DRING, SNAP(FOR GOVERNOR PRESSURE ADAPTER)

main96150-01100iAL1#..3FC197908-198207

35145GASKET, GOVERNOR PRESSURE ADAPTER

main35146-16010iAL1#..3FC197908-198207

sub35146-16011

35395STRAINER, GOVERNOR OIL

main35395-16010iAL1#..3FC197908-198207

35480GOVERNOR

main35480-16010iAL1#..3FC197908-198207

35482VALVE, GOVERNOR

main35482-16010iAL1#..3FC197908-198207

35484WEIGHT, GOVERNOR, OUTER

main35484-16010iAL1#..3FC197908-198207

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-07013iAL1#..3FC197908-198207

35485SHAFT, GOVERNOR VALVE

main35485-16010iAL1#..3FC197908-198207

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iAL1#..3FC197908-198207

35746RING, GOVERNOR SUPPORT OIL SEAL

main35746-16010iAL1#..3FC197908-198207

35794RING, GOVERNOR RETAINING

main35794-16010iAL1#..3FC197908-198207

9338116016

main93381-16016

16 parts on this diagram · 1 diagram in section
