NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8601

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-52270iNHP10..R,V201706-201811

FUJITSU TEN,ID100745,USA POSSESSIONS SPEC&AUDIO-*DA & *BT & 6SPEAKER

main86140-52271iNHP10..R,V201811

DENSO TEN,ID=100876,AUDIO-RADIO LESS & 6SPEAKER & 2DIN COVER

main86140-52320iNHP10..R,V201412-201511

FUJITSU TEN,ID100505,USA POSSESSIONS SPEC&AUDIO-*DA & *BT & 6SPEAKER

main86140-52330iNHP10..R,V201511-201706

FUJITSU TEN,ID100629

main86140-52120supersedes 86140-52110iNHP10..G201112-201412

FUJITSUTEN,ID=100024,CANADA SPEC&EMV & NAVIGATION SYSTEM-WITH

main86140-52180supersedes 86140-52110iNHP10..G201112-201412

FUJITSUTEN,ID=100110,USA POSSESSIONS SPEC&EMV & NAVIGATION SYSTEM-WITHOUT

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-52320supersedes 86211-52320iNHP10..G201706-202008

KOREA SPEC&AUDIO-AM(9KHZ STEP) & CD & *BT & 6SPEAKER

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-52320supersedes 86212-52320iNHP10..G201706-202008

KOREA SPEC&AUDIO-AM(9KHZ STEP) & CD & *BT & 6SPEAKER

86730AMICROPHONE ASSY, TELEPHONE

main86250-52050iNHP10201412-201706

main86730-52070iNHP10..G201412-201706

NORTH AMERICA 3-2

86860ANTENNA ASSY, NAVIGATION

main86860-52201supersedes 86860-52201iNHP10..G201706-202008

KOREA SPEC&AUDIO-AM(9KHZ STEP) & CD & *BT & 6SPEAKER

9015350010

main90153-50010

9356855014

main93568-55014

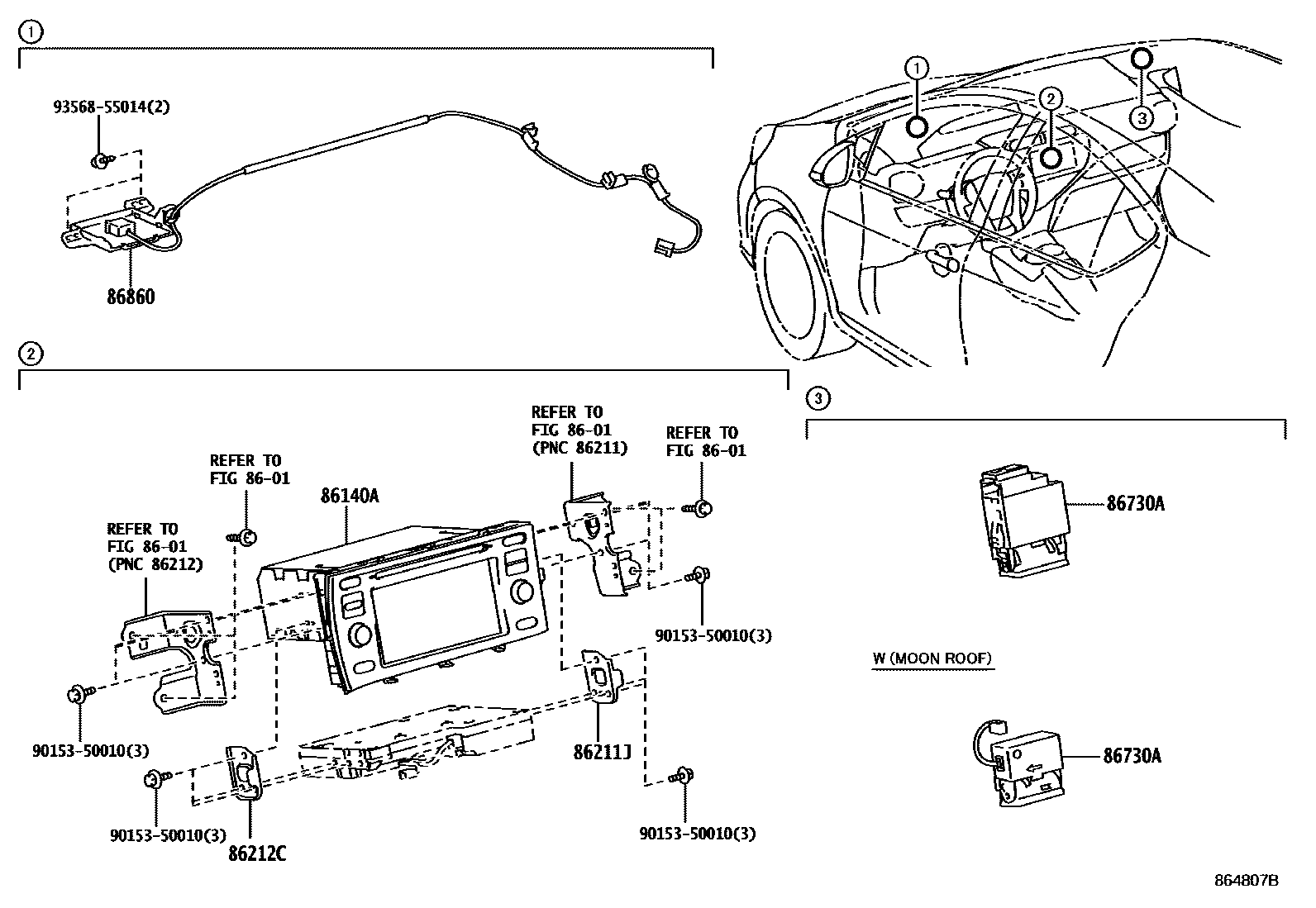

8 parts on this diagram · 2 diagrams in section
