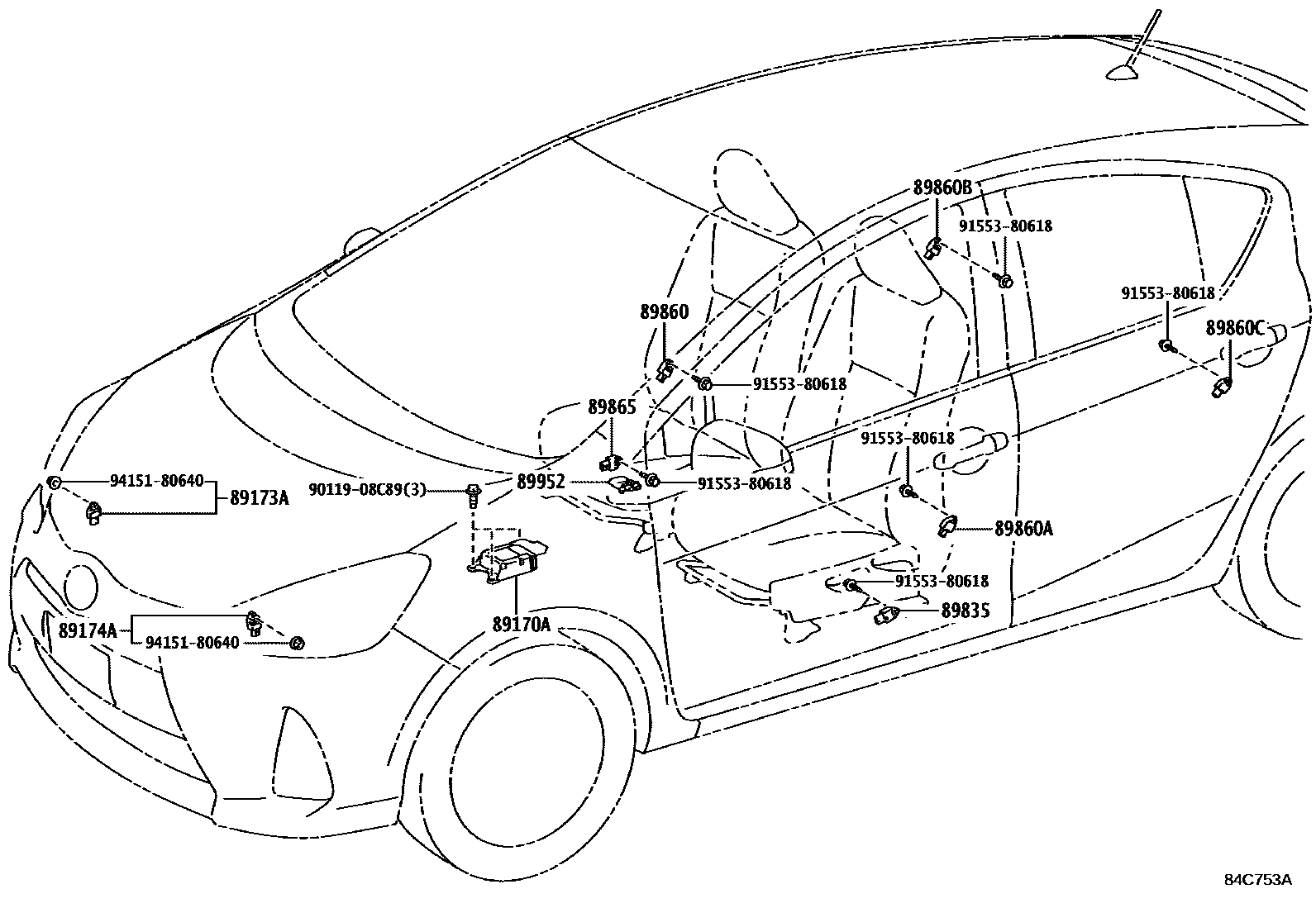

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-52J70iNHP10201112-201312

main89170-52K20iNHP10201412-201504

main89170-52L80iNHP10201505-201706

main89170-52L90iNHP10201706

main89170-52N80iNHP10201312-201412

89173ASENSOR, AIRBAG, FRONT RH

main89173-19455iNHP10201412-201706

main89173-59287iNHP10201112-201412

main89173-59305iNHP10201706

89174ASENSOR, AIRBAG, FRONT LH

main89173-19455iNHP10201412-201706

main89173-59287iNHP10201112-201412

main89173-59305iNHP10201706

89835SENSOR, DOOR SIDE AIRBAG, LH

main89831-33050iNHP10201412-201706

main89831-52040iNHP10201112-201412

main89831-78010iNHP10201706

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-12040iNHP10201412-201706

main89831-28060iNHP10201706

main89831-52020iNHP10201112-201412

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-12040iNHP10201412-201706

main89831-28060iNHP10201706

main89831-52020iNHP10201112-201412

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-12040iNHP10201412-201706

main89831-28060iNHP10201706

main89831-52020iNHP10201112-201412

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-12040iNHP10201412-201706

main89831-28060iNHP10201706

main89831-52020iNHP10201112-201412

89865SENSOR, DOOR SIDE AIRBAG, RH

main89831-33050iNHP10201412-201706

main89831-52040iNHP10201112-201412

main89831-78010iNHP10201706

89952COMPUTER, OCCUPANT DETECTION

main89952-12020iNHP10201701-201706

main89952-52021iNHP10201112-201203

main89952-52022iNHP10201203-201412

9011908C89

main90119-08C89

9155380618

main91553-80618

9415180640

main94151-80640

13 parts on this diagram · 1 diagram in section
