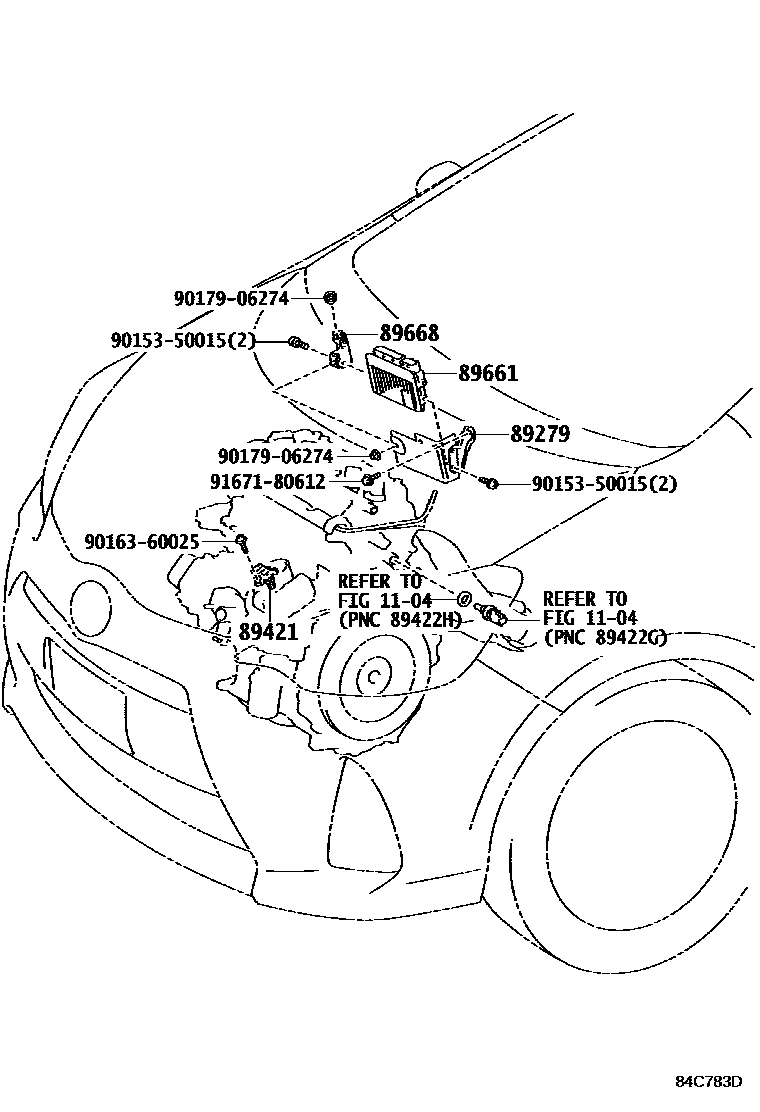

ELECTRONIC FUEL INJECTION SYSTEM

1104

89279COVER, ENGINE CONTROL COMPUTER

main89279-52080iNHP10201112-201706

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iNHP10201112-201706

89661COMPUTER, ENGINE CONTROL

main89661-52U80iNHP10201112-201201

sub89661-52U81

main89661-52U81iNHP10201201-201308

sub89661-52U82

main89661-52U82iNHP10201309-201310

sub89661-52U83

main89661-52Z50iNHP10201706-201808

DENSO

main89661-5C330iNHP10201310-201409

sub89661-5C331

main89661-5C331iNHP10201410-201505

main89661-5C332iNHP10201505-201511

sub89661-5C333

main89661-5C560iNHP10..V201808-202008

DENSO

main89661-5C750iNHP10201511-201612

sub89661-5C751

main89661-5C751iNHP10201701-201706

main89661-5CA10iNHP10..V202008

DENSO

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52380iNHP10201112-201706

9015350015

main90153-50015

9016360025

main90163-60025

9017906274

main90179-06274

9167180612

main91671-80612

9 parts on this diagram · 1 diagram in section
