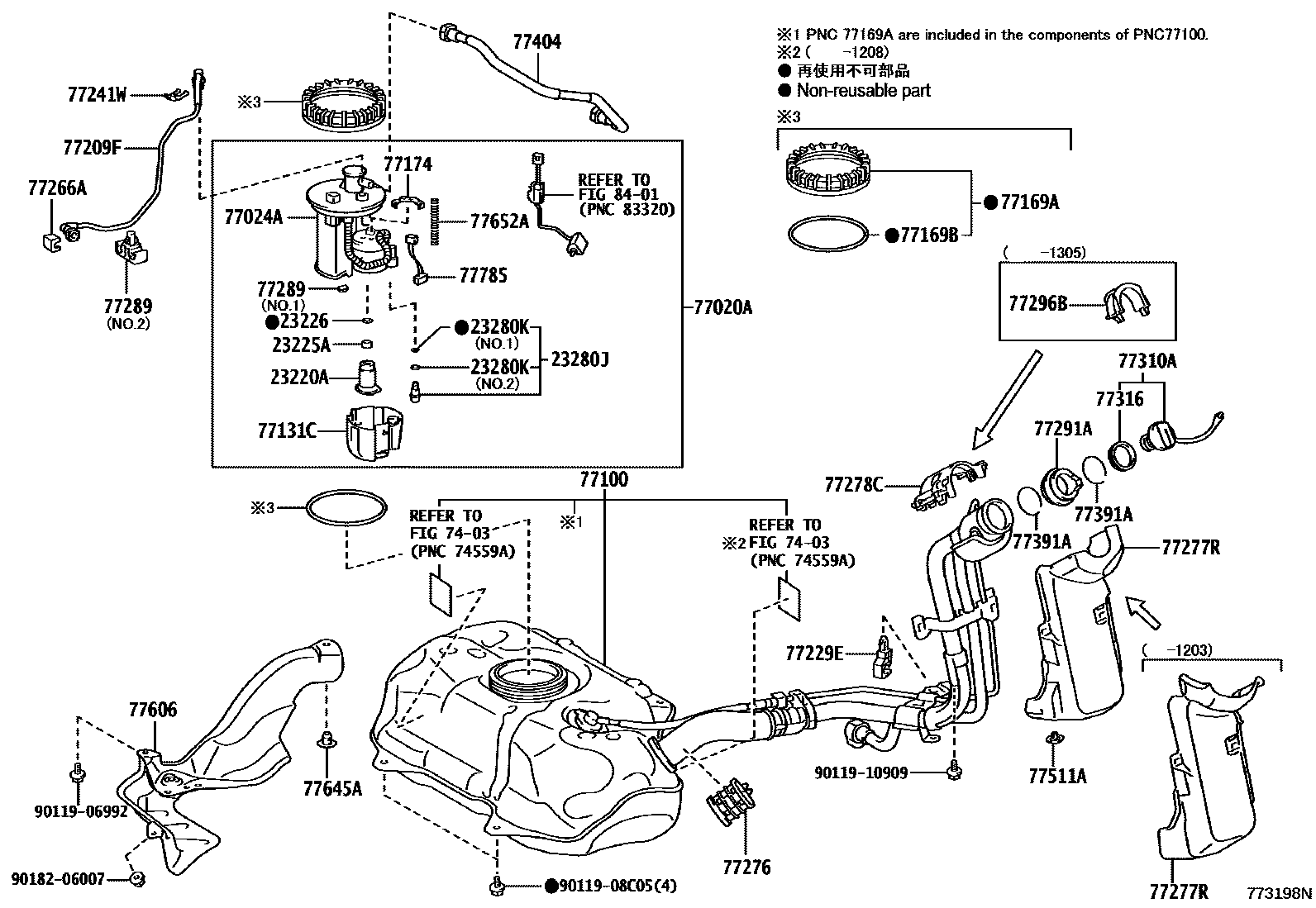

FUEL TANK & TUBE
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23226RING, O(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
7403
77024APLATE SUB-ASSY, FUEL SUCTION
77100TANK ASSY, FUEL
77131CSUB-TANK, FUEL, NO.1
77169AGASKET, FUEL SUCTION TUBE SET
77169BGASKET, FUEL SUCTION TUBE SET, NO.1
77174SUPPORT, FUEL SUCTION, NO.1
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77229ECLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77266APROTECTOR, FUEL TUBE, NO.1
77276PROTECTOR, FUEL HOSE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77289HOLDER, FUEL TANK PIPE SETTING
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77291ASHIELD, FUEL TANK FILLER PIPE
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391ARING, FUEL INLET BOX
77404HOSE SUB-ASSY, FUEL TANK VENT
77511ABRACKET, FUEL TANK
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77645ARETAINER, FUEL TANK PROTECTOR
77652ACUSHION, FUEL TANK, NO.2
8401
9011906992
9011908C05
9011910909
9018206007
37 parts on this diagram · 3 diagrams in section
