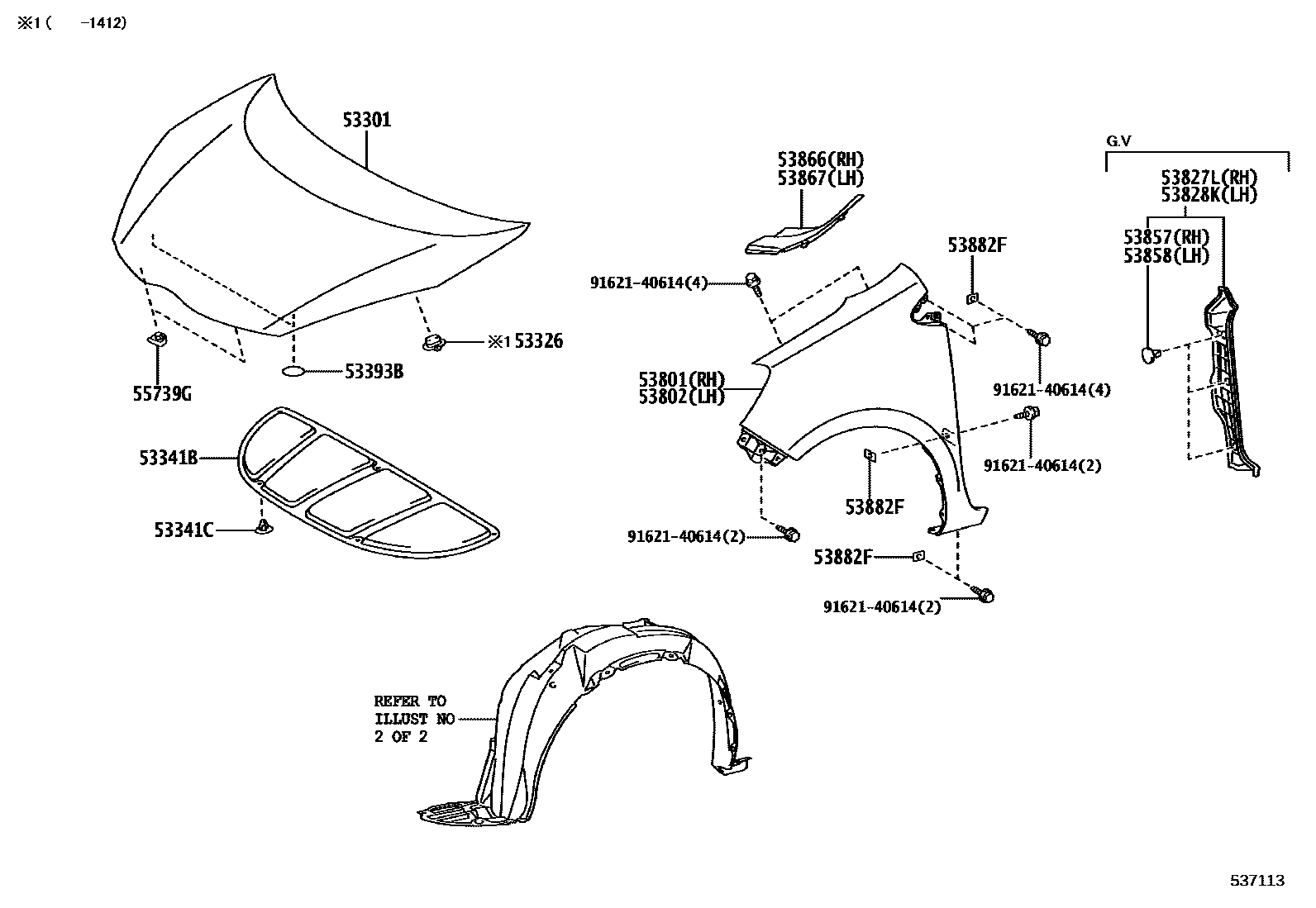

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER 0003 1 0004 1FENDER LINER 0005 1 0006 1FENDER LINER

53301HOOD SUB-ASSY

main53301-52370iNHP10¥31,400201112-201706

main53301-52410iNHP10201706

53326CLIP, HOOD PROTECTOR

main53326-52010iNHP10¥160201112-201412

53341BINSULATOR, HOOD

main53341-52190iNHP10..G,V¥7,500201706

main53341-52200iNHP10..G,V¥9,000201112-201706

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNHP10..G,V¥120201112-201706

53393BPROTECTOR, HOOD, FRONT

main90950-06124iNHP10¥90201112-201706

53801FENDER SUB-ASSY, FRONT RH

main53801-52130iNHP10¥37,700201112-201612

main53801-52160iNHP10201612-201706

main53801-52170iNHP10..R201706-202007

sub53801-52171

sub75374-52131¥2,200

main53801-52171iNHP10..V202007

main53801-52190iNHP10..G,V201706-202007

sub53801-52191

sub75374-52131¥2,200

main53801-52191iNHP10..V202007-202008

53802FENDER SUB-ASSY, FRONT LH

main53802-52130iNHP10¥37,700201112-201612

main53802-52160iNHP10201612-201706

main53802-52170iNHP10..R201706-202007

sub53802-52171

sub75374-52141¥2,200

main53802-52171iNHP10..G202007

main53802-52190iNHP10..G,V201706-202007

sub53802-52191

sub75374-52141¥2,200

main53802-52191iNHP10..G202007-202008

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52160iNHP10..G,V¥2,000201112-201706

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52170iNHP10..G,V¥2,000201112-201706

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iNHP10..G,V¥60201112-201706

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iNHP10..G,V¥60201112-201706

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52100iNHP10¥1,010201112-201706

main53866-52160iNHP10¥1,140201706

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52150iNHP10¥1,010201112-201706

main53867-52180iNHP10¥1,140201706

53882FSEAL, FRONT FENDER

main53882-16030iNHP10¥60201112-201706

55739GSTOPPER, HOOD

main55738-52050iNHP10¥280201112-201706

9162140614

main91621-40614¥80

16 parts on this diagram · 6 diagrams in section
