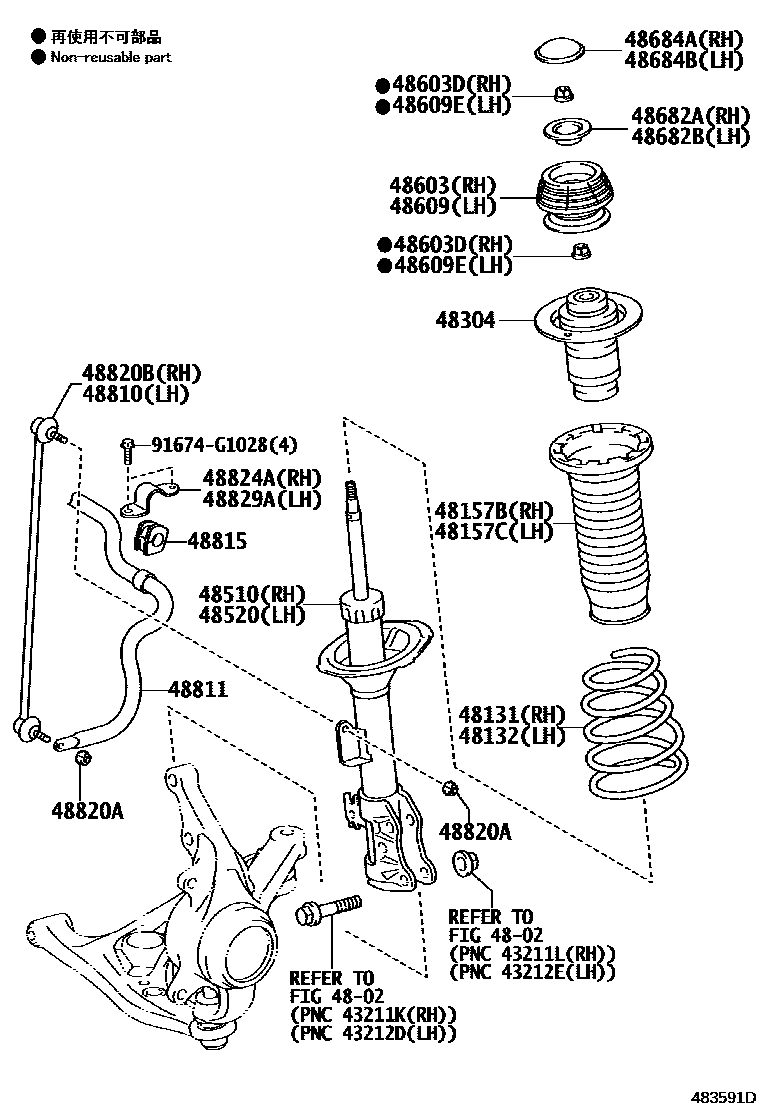

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

4802

48131SPRING, FRONT COIL, RH

main48131-52J70iNHP10..G,V201112-201403

sub48131-52J71

main48131-52J71iNHP10..G,R201404-202008

main48131-52K20iNHP10..R201112-201312

main48131-52K82iNHP10..V202008

48132SPRING, FRONT COIL, LH

main48131-52J70iNHP10..G,V201112-201403

sub48131-52J71

main48131-52J71iNHP10201404-201505

main48131-52K20iNHP10..R201112-201312

main48131-52L10iNHP10201505-202008

main48131-52N30iNHP10..V202008

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-52030iNHP10201112-201404

main48157-52040iNHP10201404-201611

main48157-52050iNHP10201611-201706

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-52030iNHP10201112-201404

main48157-52040iNHP10201404-201611

main48157-52050iNHP10201611-201706

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-52021iNHP10201312-201403

sub48304-52022

main48304-52022iNHP10201404-201505

main48304-52050iNHP10201112-201312

sub48304-52051

main48304-52101iNHP10..V202008

main48304-52111iNHP10..G,R201505-202008

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-52G40iNHP10..R201112-201312

MARK 48510-52G40

sub48510-52G41

main48510-52J30iNHP10..G,V201112-201404

MARK 48510-52J30

sub48510-52J60

main48510-52M40iNHP10201505-201611

MARK 48510-52M40

main48510-52M50iNHP10201404-201505

MARK 48510-52M50

main48510-52P30iNHP10..V201706-202008

MARK 48510-52P30

main48510-52P70iNHP10..V202008

MARK 48510-52P70

main48510-52P80iNHP10201611-201706

MARK 48510-52P80

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-52540iNHP10..R201112-201312

MARK 48520-52540

sub48520-52541

main48520-52630iNHP10..G,V201112-201404

MARK 48520-52630

sub48520-52660

main48520-52A50iNHP10201404-201505

MARK 48520-52A50

main48520-52A70iNHP10201505-201611

MARK 48520-52A70

main48520-52C30iNHP10..G,R201706-202008

MARK 48520-52C30

main48520-52C70iNHP10..V202008

MARK 48520-52C70

main48520-52C80iNHP10201611-201706

MARK 48520-52C80

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-52100iNHP10201112-201706

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-12145iNHP10201112-201706

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-52100iNHP10201112-201706

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-12145iNHP10201112-201706

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-52040iNHP10201112-201706

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-52040iNHP10201112-201706

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52020iNHP10201112-201706

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52020iNHP10201112-201706

48810LINK ASSY, FRONT STABILIZER, LH

main48820-52030iNHP10201112-201706

48811BAR, STABILIZER, FRONT

main48811-52240iNHP10201112-201706

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-52090iNHP10201112-201706

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151iNHP10201112-201706

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-52030iNHP10201112-201706

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-52060iNHP10201112-201706

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-52060iNHP10201112-201706

91674G1028

main91674-G1028

24 parts on this diagram · 2 diagrams in section
