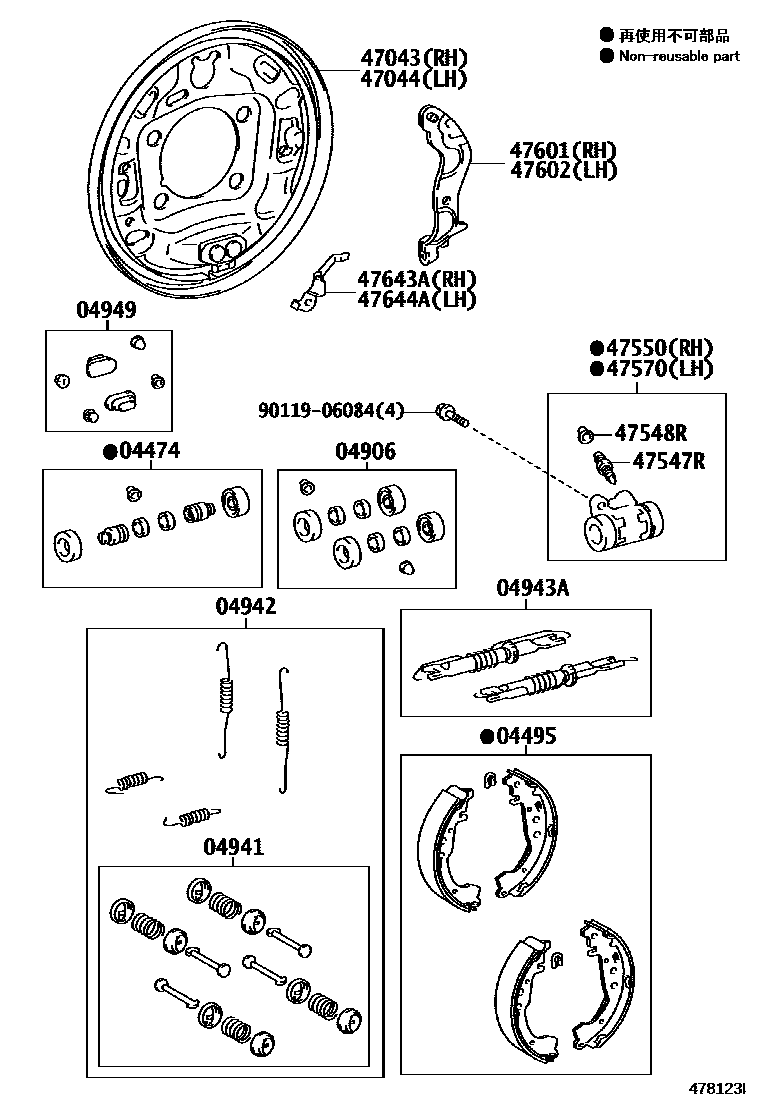

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

04474CYLINDER KIT, REAR WHEEL

main04474-52140iNHP10¥1,570201112-201706

04495SHOE KIT, REAR BRAKE

main04495-52120iNHP10¥7,600201112-201404

MARK NBK LN521

sub04495-52121¥4,700

main04495-52121iNHP10¥4,700201404-201706

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-28040iNHP10¥870201112-201706

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010iNHP10¥1,860201112-201706

04942SPRING KIT, REAR BRAKE

main04942-13030iNHP10¥2,070201112-201706

04943ASTRUT KIT, REAR BRAKE

main04943-52030iNHP10¥2,460201112-201706

04949PLUG KIT, REAR BRAKE

main04949-13010iNHP10¥800201112-201706

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52120iNHP10¥2,810201112-201706

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52120iNHP10¥2,810201112-201706

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27030iNHP10¥180201112-201706

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iNHP10¥160201112-201706

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-28060iNHP10¥3,560201112-201706

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-28060iNHP10¥3,560201112-201706

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-12480iNHP10¥580201112-201404

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-12480iNHP10¥580201112-201404

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-52120iNHP10¥200201112-201706

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-52120iNHP10¥200201112-201706

9011906084

main90119-06084¥100

18 parts on this diagram · 3 diagrams in section
