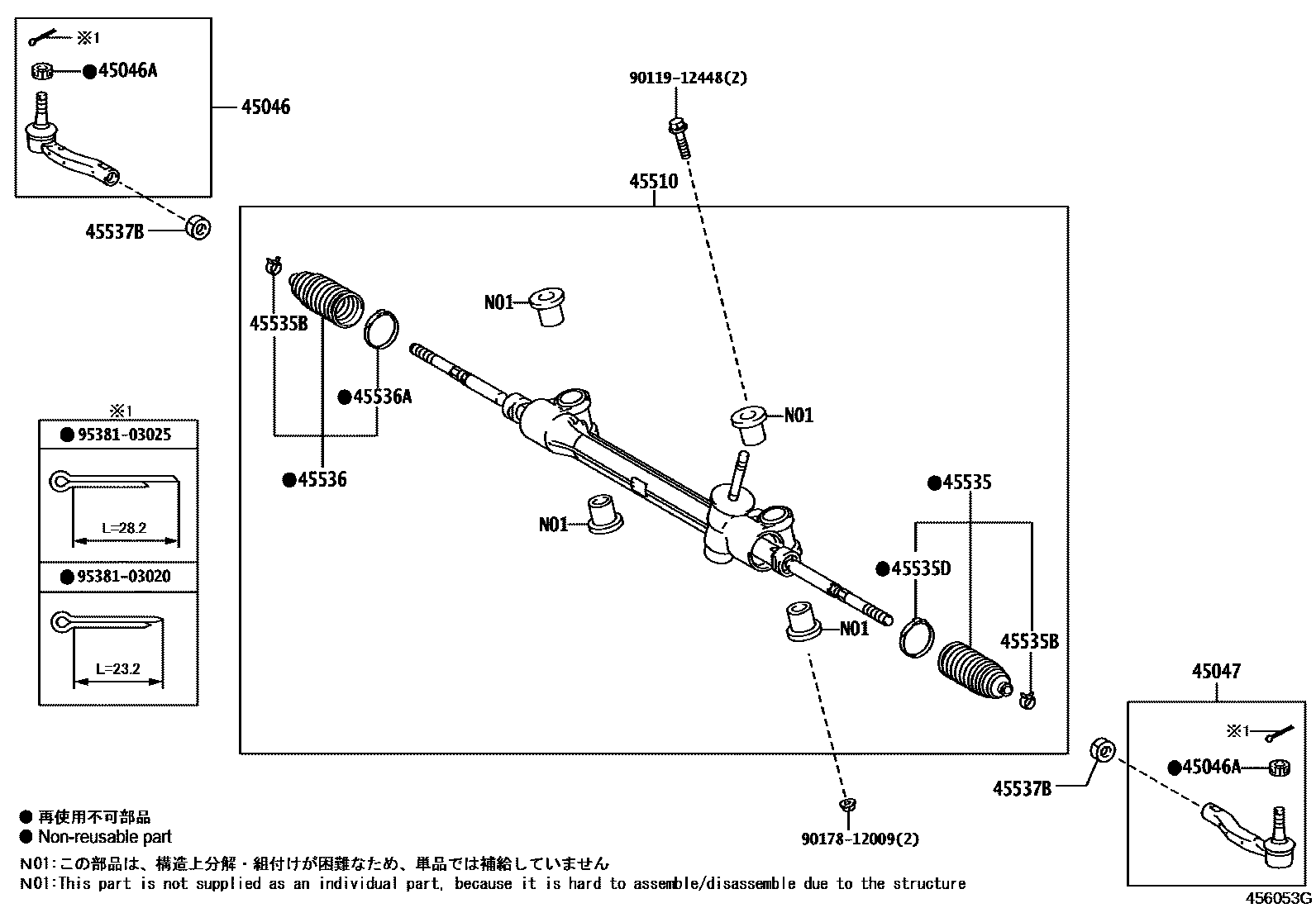

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-59195iNHP10201112-201212

sub45046-59255

main45046-59255iNHP10201212-201706

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNHP10201112-201706

45047END SUB-ASSY, TIE ROD, LH

main45047-59135iNHP10201112-201212

sub45047-59165

main45047-59165iNHP10201212-201706

45510GEAR ASSY, STEERING

main45510-52350iNHP10201112-201301

sub45510-52351

main45510-52351iNHP10201301-202008

main45510-52361iNHP10..V202008

45535BOOT, STEERING RACK, NO.1

main45535-59035iNHP10201112-201706

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iNHP10201112-201706

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010iNHP10201112-201706

45536BOOT, STEERING RACK, NO.2

main45535-59035iNHP10201112-201706

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010iNHP10201112-201706

45537BNUT, RACK END LOCK

main90179-14019iNHP10201112-201706

9011912448

main90119-12448

9017812009

main90178-12009

9538103020

main95381-03020

9538103025

main95381-03025

14 parts on this diagram · 1 diagram in section
