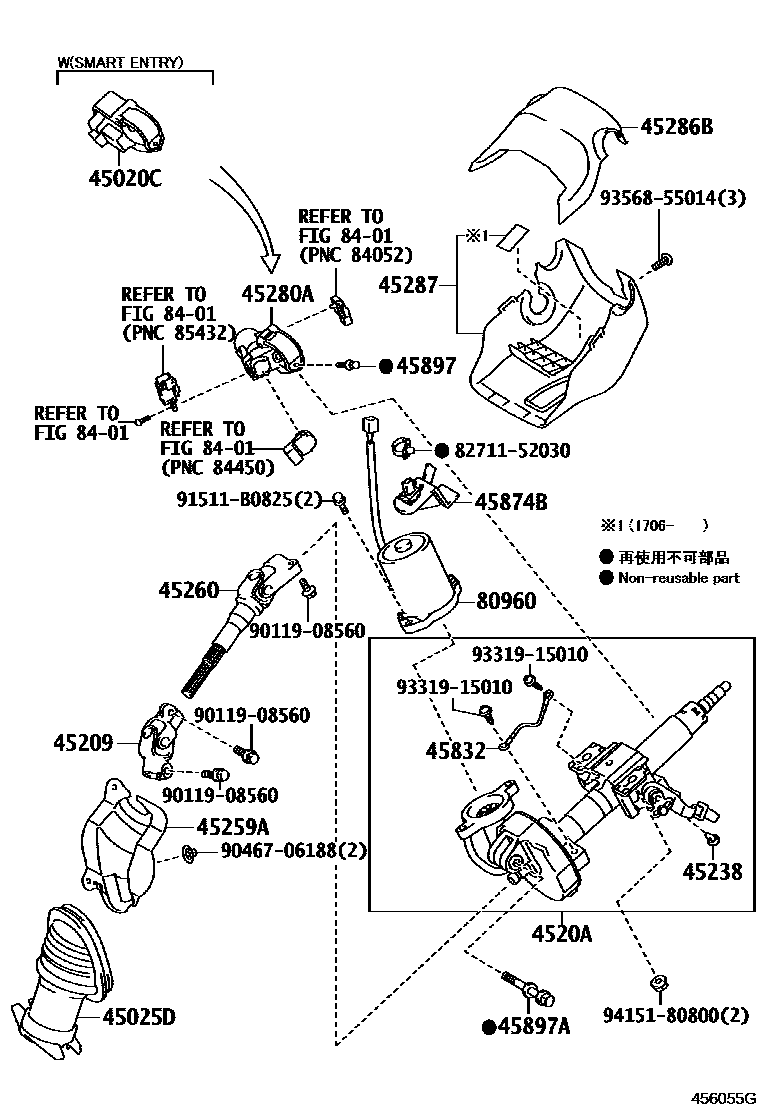

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45209YOKE SUB-ASSY, STEERING SLIDING
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM2#
BLACK,TRIM1#,2#,8#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM2#
BLACK,TRIM1#,2#,8#
BLACK,TRIM1#,2#,8#
45832CABLE, TILT STEERING SUPPORT BOND
45874BPROTECTOR, STEERING COLUMN, NO.1
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
8401
8271152030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52030
9011908560
main90119-08560
9046706188
main90467-06188
91511B0825
main91511-B0825
9331915010
main93319-15010
9356855014
main93568-55014
9415180800
main94151-80800
23 parts on this diagram · 1 diagram in section
