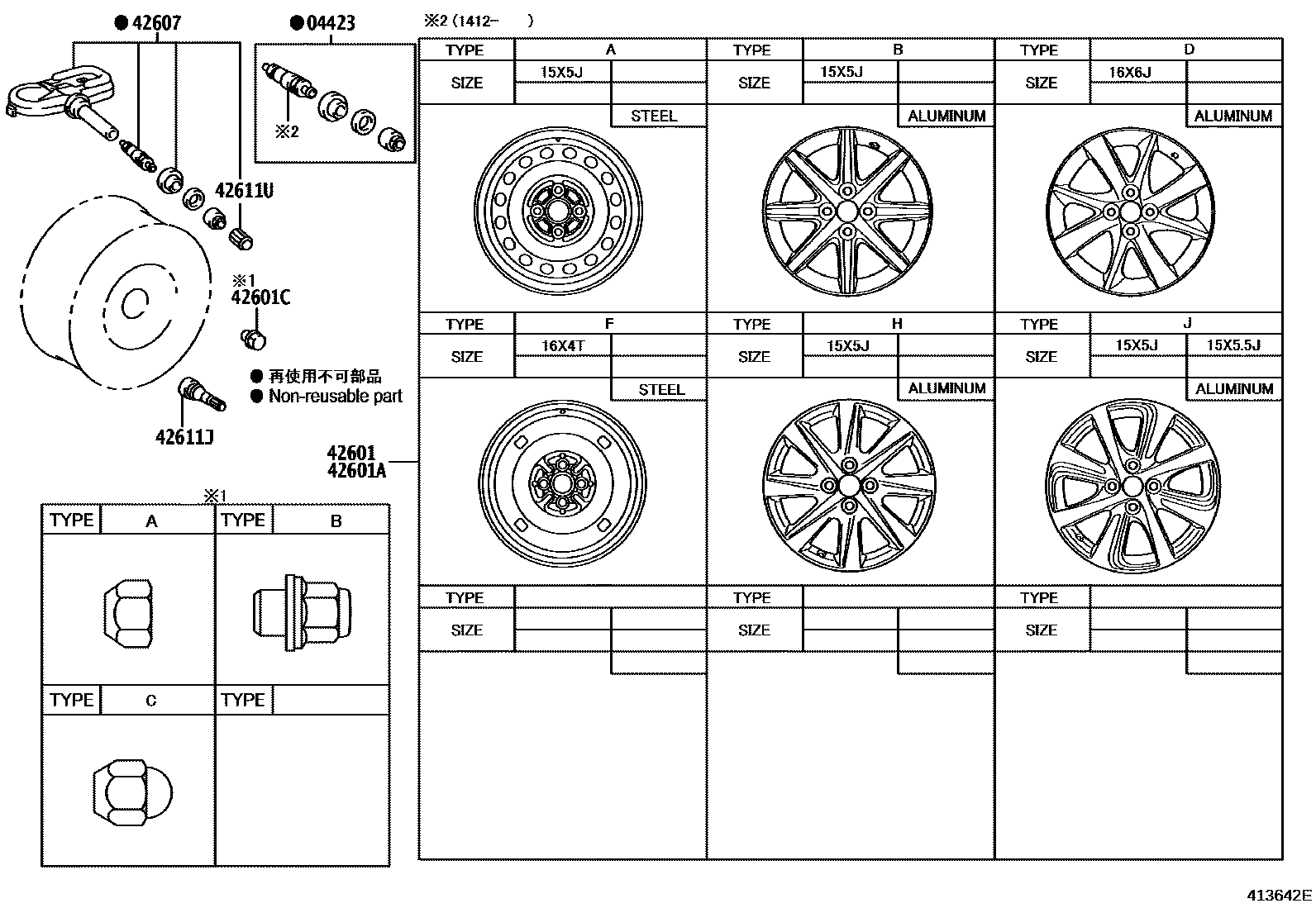

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
15X5J, #,TYPE A:REFER ILLUST.
15X5J, #,KOREA SPEC&TIRE & DISC WHEEL-175/65R15 5J ALL SEASON TIRE STEEL,TYPE A:REFER ILLUST.
15X5J, #,CANADA SPEC&TIRE & DISC WHEEL-175/65R15 5J ALL SEASON TIRE STEEL,TYPE A:REFER ILLUST.
15X5J, #,TIRE & DISC WHEEL-175/65R15 5J ALL SEASON TIRE STEEL,TYPE A:REFER ILLUST.
15X5J, #,TIRE & DISC WHEEL-175/65R15 5J ALL SEASON TIRE ALUMINUM,TYPE H:REFER ILLUST.
15X5J, #,TIRE & DISC WHEEL-175/65R15 5J ALL SEASON TIRE ALUMINUM,TYPE B:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-195/50R16 6J ALL SEASON TIRE ALUMINUM,TYPE D:REFER ILLUST.
15X5J, #,TIRE & DISC WHEEL-175/65R15 5J ALL SEASON TIRE ALUMI BLACK,TYPE H:REFER ILLUST.
15X5J, #,SPECIAL EDITION,TYPE H:REFER ILLUST.
15X5.5J, #,MEXICO SPEC&TIRE & DISC WHEEL-185/60R15 5.5J STEEL ROUGH ROAD SPEC,TYPEA:REFER ILLUST.
15X5.5J, #,TIRE & DISC WHEEL-185/60R15 5.5J STEEL ROUGH ROAD SPEC,TYPE A:REFER ILLUST.
15X5.5J, #,MEXICO SPEC&TIRE & DISC WHEEL-185/60R15 5.5J ALUMINUM ROUGH ROAD SPEC,TYPE J:REFER ILLUST.
15X5.5J, #,TYPE J:REFER ILLUST.
15X5J, #,TYPE J:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X4T,TYPE F:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TYPE C:REFER ILLUST.
TIRE & DISC WHEEL-175/65R15 5J ALL SEASON TIRE STEEL,TYPE C:REFER ILLUST.
TIRE & DISC WHEEL-185/60R15 5.5J STEEL ROUGH ROAD SPEC,TYPE C:REFER ILLUST.
TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-195/50R16 6J ALL SEASON TIRE ALUMINUM,TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-175/65R15 5J ALL SEASON TIRE ALUMINUM,TYPE B:REFER ILLUST.
SPECIAL EDITION,TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-175/65R15 5J ALL SEASON TIRE ALUMI BLACK,TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
KOREA SPEC&TIRE & DISC WHEEL-175/65R15 5J ALL SEASON TIRE STEEL
KOREA SPEC
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
7 parts on this diagram · 2 diagrams in section
