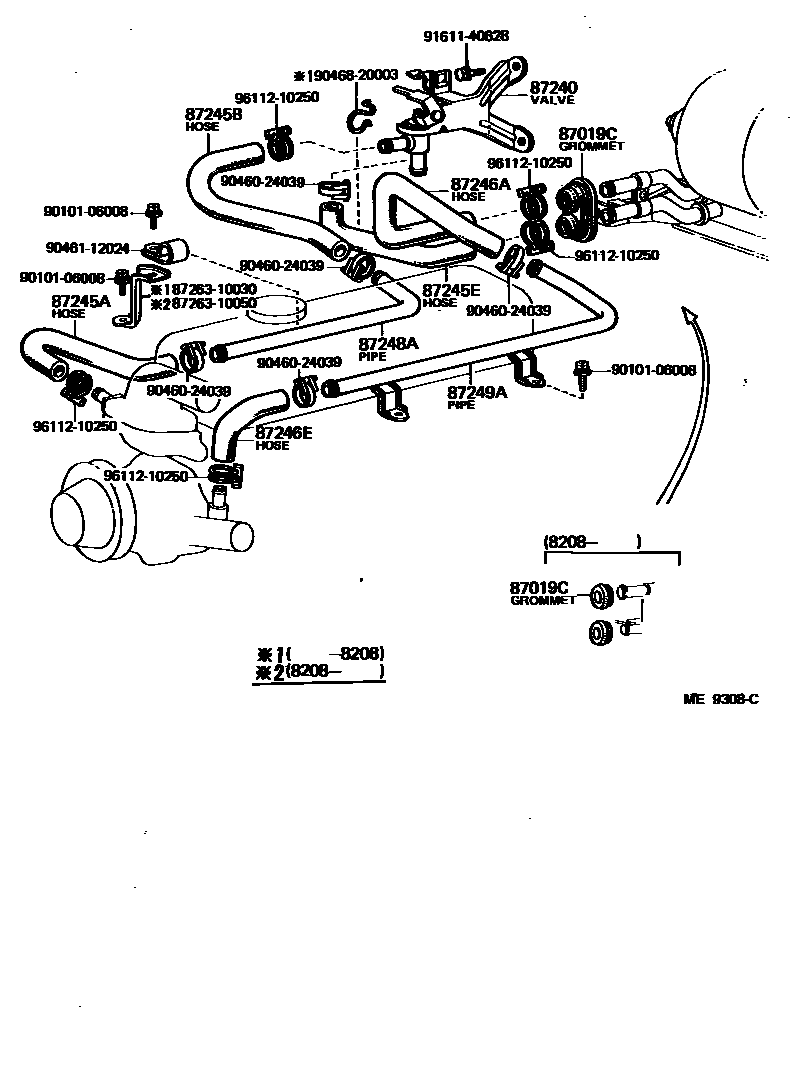

HEATING & AIR CONDITIONING - WATER PIPING

87019CGROMMET, HEATER HOSE

main90480-01067iKP61198008-198208

main90480-36498iKP61198208-198312

87240VALVE ASSY, HEATER WATER

main87240-10092iKP61198008-198208

main87240-10100iKP61198208-198312

87245AHOSE, HEATER WATER, INLET A

main87245-12261iKP61198008-198208

main87245-12590iKP61198208-198312

87245BHOSE, HEATER WATER, INLET B

main87245-10121iKP61198008-198108

main87245-10122iKP61198108-198208

main87245-10210iKP61198208-198312

87245EHOSE, HEATER WATER, INLET E

main87245-10091iKP61198008-198208

main87245-10180iKP61198208-198312

87246AHOSE, HEATER WATER, OUTLET A

main87245-10111iKP61198008-198208

main87245-10240iKP61198208-198312

87246EHOSE, HEATER WATER, OUTLET E

main87245-10100iKP61198008-198312

87248APIPE, HEATER WATER INLET, A

main87248-10091iKP61198008-198108

main87248-10092iKP61198108-198312

87249APIPE, HEATER WATER OUTLET, A

main87248-10080iKP61198008-198208

main87248-10130iKP61198208-198312

8726310030BRACKET, HEATER WATER PIPE, NO.1

main87263-10030

8726310050BRACKET, HEATER WATER PIPE, NO.1

main87263-10050

9010106008

main90101-06008

9046024039

main90460-24039

9046112024

main90461-12024

9046820003

main90468-20003

9161140628

main91611-40628

9611210250

main96112-10250

17 parts on this diagram · 1 diagram in section
