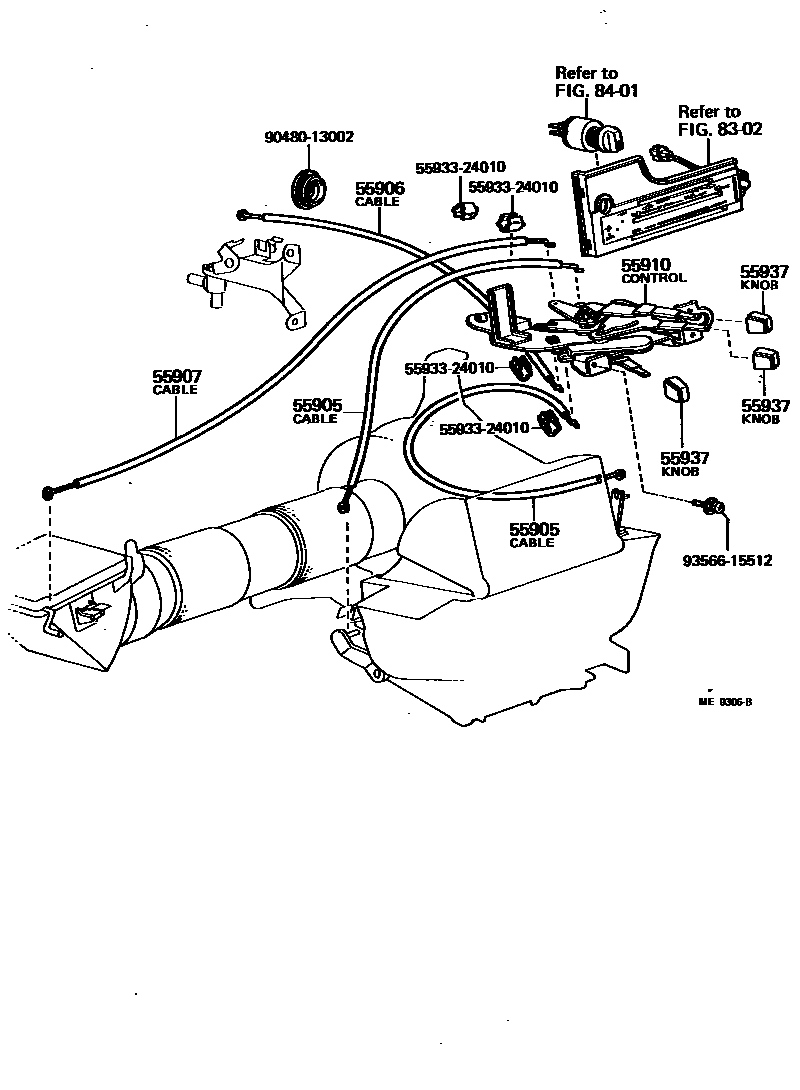

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1

55905CABLE SUB-ASSY, DEFROST CONTROL

main55906-10111iKP61198008-198108

L=430

sub55906-10112

main55906-10112iKP61198108-198208

L=460

main55909-10032iKP61198008-198208

L=680

55906CABLE SUB-ASSY, HEATER CONTROL

main55907-10051iKP61198008-198208

55907CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY

main55908-10042iKP61198008-198208

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-10151iKP61198008-198208

main55910-10200iKP61198208-198312

55937KNOB, HEATER CONTROL LEVER

main55905-12060iKP61198208-198312

sub55905-12070

main55905-22050iKP61198008-198208

8302

8401

5593324010GUIDE, LEVER, NO.2

main55933-24010

9048013002

main90480-13002

9356615512

main93566-15512

10 parts on this diagram · 4 diagrams in section
