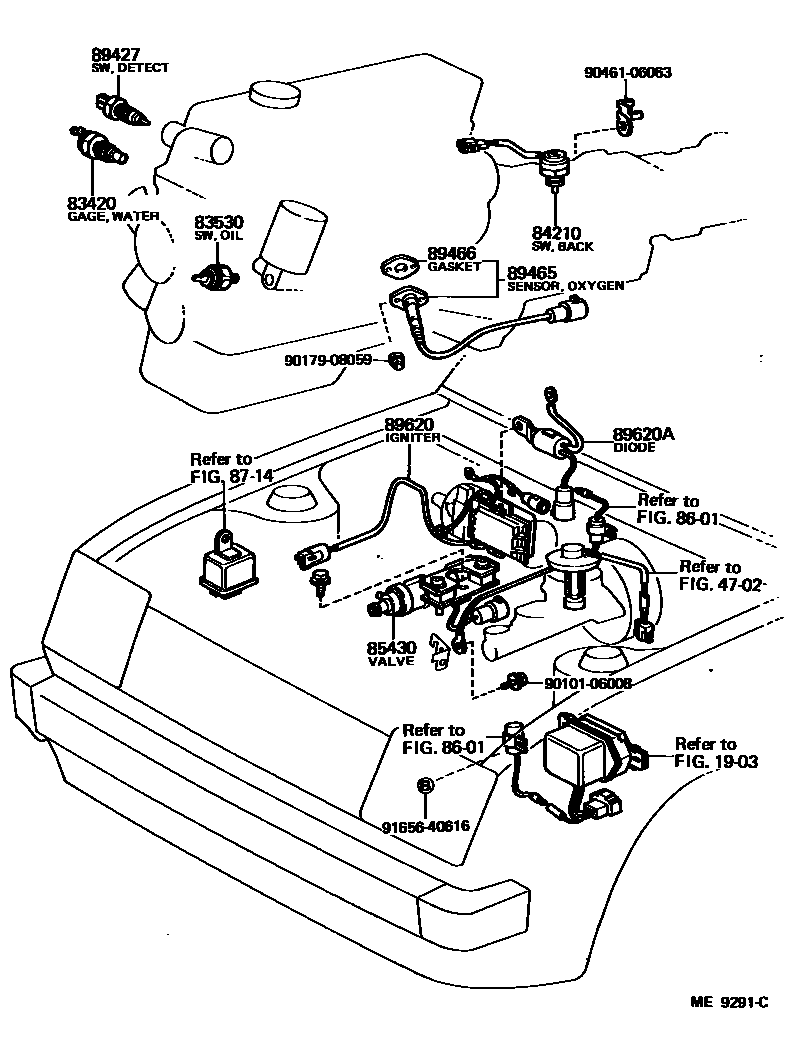

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

1903

4702

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iKP61198008-198312

DENSO

sub83420-20020

main83420-20020iKP61198008-198312

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iKP61198008-198312

sub83530-14030

84210SWITCH ASSY, BACK-UP LAMP

main84210-10071iKP61198008-198312

85430VALVE, OUTER VENT CONTROL

main85430-10010iKP61198008-198208

8601

8714

89427SWITCH, TEMPERATURE DETECT

main89428-10050iKP61198008-198312

89465SENSOR, OXYGEN

main89465-19055iKP61198208-198312

sub89465-19265

89466GASKET, OXYGEN SENSOR

main89466-30010iKP61198208-198312

sub89466-20020

89620IGNITER ASSY

main89620-10050iKP61198008-198208

main89620-10070iKP61..4F198208-198312

main89620-10080iKP61..5F198208-198312

89620ADIODE, IGNITION COIL

main90919-14008iKP61198008-198208

9010106008

main90101-06008

9017908059

main90179-08059

9046106063

main90461-06063

9165640616

main91656-40616

17 parts on this diagram · 4 diagrams in section
