SIDE MEMBER

58791ACARRIER, JACK

main58791-10020i198008-198312

58793ABRACKET, JACK CARRIER

main58793-10020i198008-198312

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61027-10040i198008-198208

main61027-10041i198208-198312

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61028-10040i198008-198208

sub61028-10041

main61028-10041i198208-198312

61161PILLAR, FRONT BODY, UPPER INNER RH

main61021-10020i198208-198312

main61161-10040i198008-198208

61162PILLAR, FRONT BODY, UPPER INNER LH

main61022-10010i198208-198312

main61162-10040i198008-198208

61165PILLAR, FRONT BODY LOWER INNER, RH

main61023-10040i198008-198011

sub61023-10050

main61023-10050i198008-198011

W/RADIO

main61023-10050i198011-198208

main61023-10051i198208-198312

61166PILLAR, FRONT BODY LOWER INNER, LH

main61024-10040i198008-198011

sub61024-10050

main61024-10050i198008-198011

W/RADIO

main61024-10050i198011-198208

main61024-10051i198208-198312

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61232-10050i198008-198312

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61231-10040i198008-198312

61211RAIL, ROOF SIDE, OUTER RH

main61211-10040i198008-198312

61212RAIL, ROOF SIDE, OUTER LH

main61211-10040i198008-198312

61261CHANNEL, ROOF DRIP, RH

main61261-10040i198008-198312

61262CHANNEL, ROOF DRIP, LH

main61262-10040i198008-198312

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-10041i198008-198108

sub61303-10042

main61303-10042i198108-198312

61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

main61304-10031i198008-198108

sub61304-10032

main61304-10032i198108-198312

61411PANEL, ROCKER, OUTER RH

main61401-10010i198008-198208

main61401-10030i198208-198312

61412PANEL, ROCKER, OUTER LH

main61402-10010i198008-198208

main61402-10030i198208-198312

61611PANEL, QUARTER, RH

main61601-10906i198008-198208

main61601-10914i198208-198312

61612PANEL, QUARTER, LH

main61602-10907i198008-198208

main61602-10914i198208-198312

61627RETAINER, QUARTER TRIM, LOWER

main61751-10060i198008-198312

61631PANEL, QUARTER WHEEL HOUSE, RH

main61607-10903i198008-198208

sub61607-10902

main61617-10903i198208-198312

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61617-10050i198008-198208

main61617-10070i198208-198312

sub61617-10051

61632PANEL, QUARTER WHEEL HOUSE, LH

main61608-10902i198008-198208

sub61608-10901

main61618-10903i198208-198312

sub61618-10902

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61618-10050i198008-198208

main61618-10070i198208-198312

sub61618-10031

61707PANEL SUB-ASSY, QUARTER, INNER RH

main61703-10902i198208-198312

W/HINGE TYPE

main61703-10903i198208-198312

W/O HINGE TYPE

main61731-10908i198008-198208

W/O HINGE TYPE

sub61731-10907

main61731-10913i198008-198208

W/HINGE TYPE

sub61731-10906

61708PANEL SUB-ASSY, QUARTER, INNER LH

main61704-10902i198208-198312

W/HINGE TYPE

main61704-10903i198208-198312

W/O HINGE TYPE

main61732-10908i198008-198208

W/O HINGE TYPE

main61732-10913i198008-198208

W/HINGE TYPE

61715REINFORCEMENT, ROOF SIDE, INNER REAR RH

main61737-10020i198008-198208

sub61737-10021

main61737-10021i198208-198312

sub61737-10900

61716REINFORCEMENT, ROOF SIDE, INNER REAR LH

main61738-10010i198008-198208

sub61738-10011

main61738-10011i198208-198312

sub61738-10900

61745PATCH, BACK DOOR OPENING, LOWER RH

main61745-10010i198008-198208

main61745-10011i198208-198312

61746PATCH, BACK DOOR OPENING, LOWER LH

main61746-10010i198008-198208

main61746-10011i198208-198312

61811PANEL, QUARTER INSIDE, FRONT RH

main61613-10010i198008-198312

61812PANEL, QUARTER INSIDE, FRONT LH

main61614-10010i198008-198312

7601

9095001006

main90950-01006

9095001030

main90950-01030

9095001056

main90950-01056

9095001065

main90950-01065

9165140610

main91651-40610

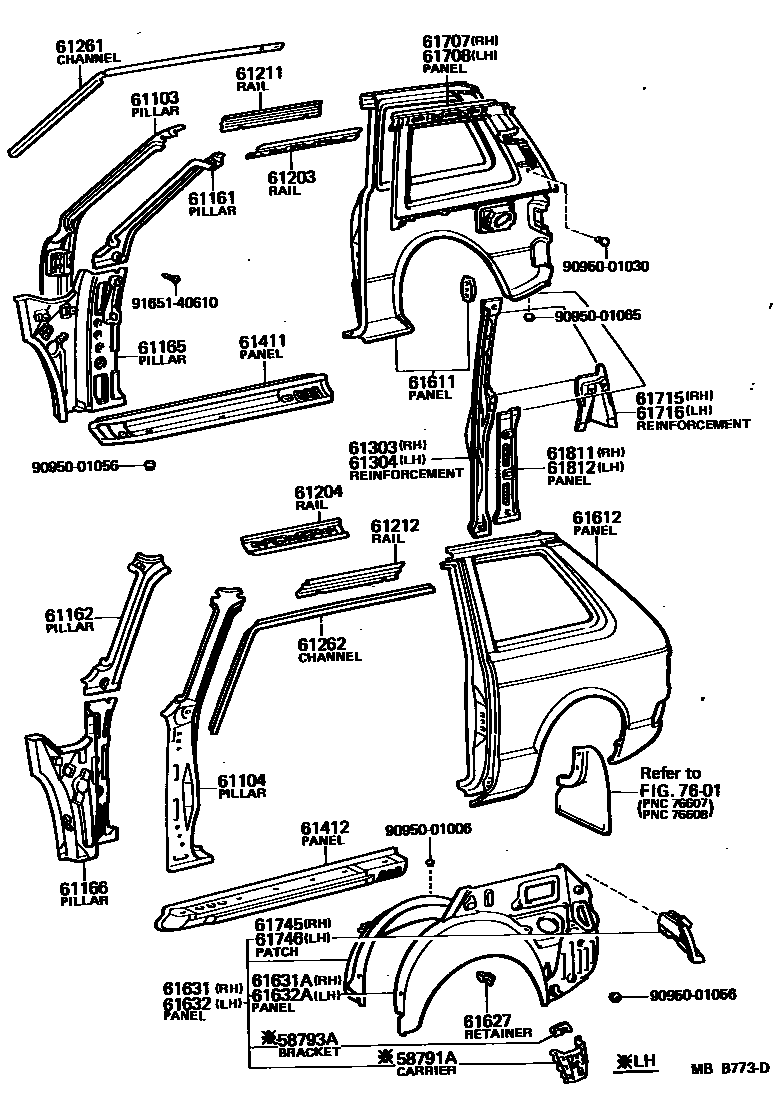

39 parts on this diagram · 2 diagrams in section
