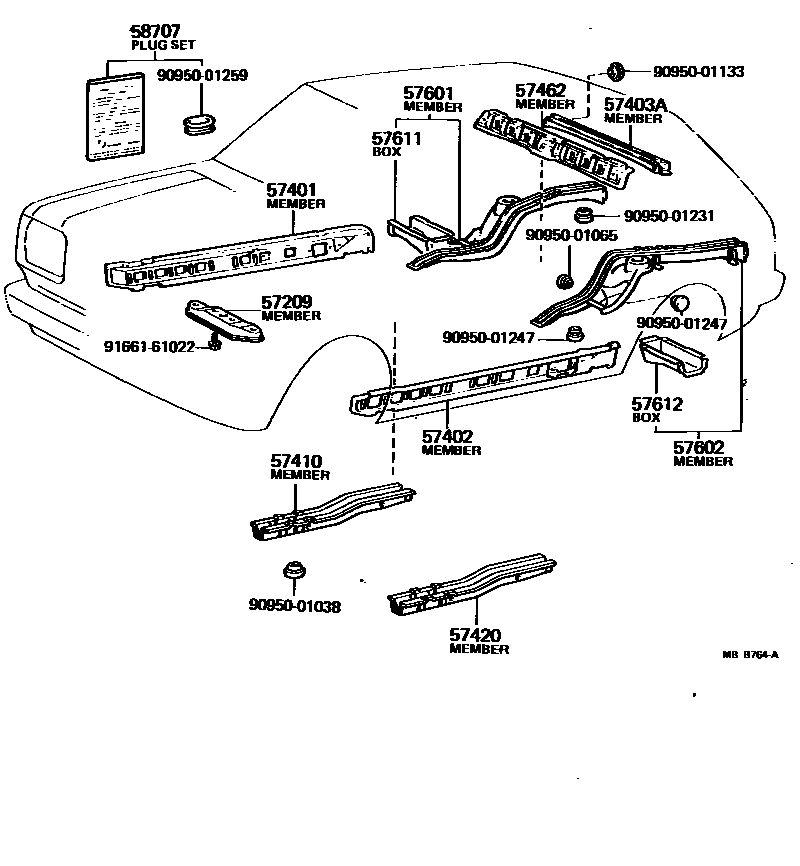

FLOOR SIDE MEMBER

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-10040iKP61¥3,210198108-198312

main57255-10030iKP61198008-198108

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-10050iKP61198008-198208

main57401-10080iKP61198208-198312

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-10050iKP61198008-198208

main57402-10080iKP61198208-198312

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57403-10021iKP61¥5,500198008-198208

sub57403-10050

main57403-10060iKP61198208-198312

57410MEMBER ASSY, FLOOR SIDE, RH

main57417-10030iKP61¥3,140198008-198208

main57417-10040iKP61198208-198312

57420MEMBER ASSY, FLOOR SIDE, LH

main57506-10040iKP61198008-198108

main57506-10041iKP61198108-198208

main57506-10050iKP61198208-198312

57462MEMBER, CENTER FLOOR CROSS, NO.2

main57462-10020iKP61198008-198312

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-10040iKP61198008-198312

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-10040iKP61198008-198312

57611BOX SUB-ASSY, TORQUE, REAR RH

main57071-10020iKP61¥3,900198008-198312

57612BOX SUB-ASSY, TORQUE, REAR LH

main57072-10020iKP61¥3,900198008-198312

58707PLUG SET, HOLE

main58707-14010iKP61¥710198008-198312

9095001038

main90950-01038¥220

9095001065

main90950-01065¥280

9095001133

main90950-01133¥590

9095001231

main90950-01231¥180

9095001247

main90950-01247¥170

9095001259

main90950-01259¥120

9166161022

main91661-61022¥180

19 parts on this diagram · 1 diagram in section
