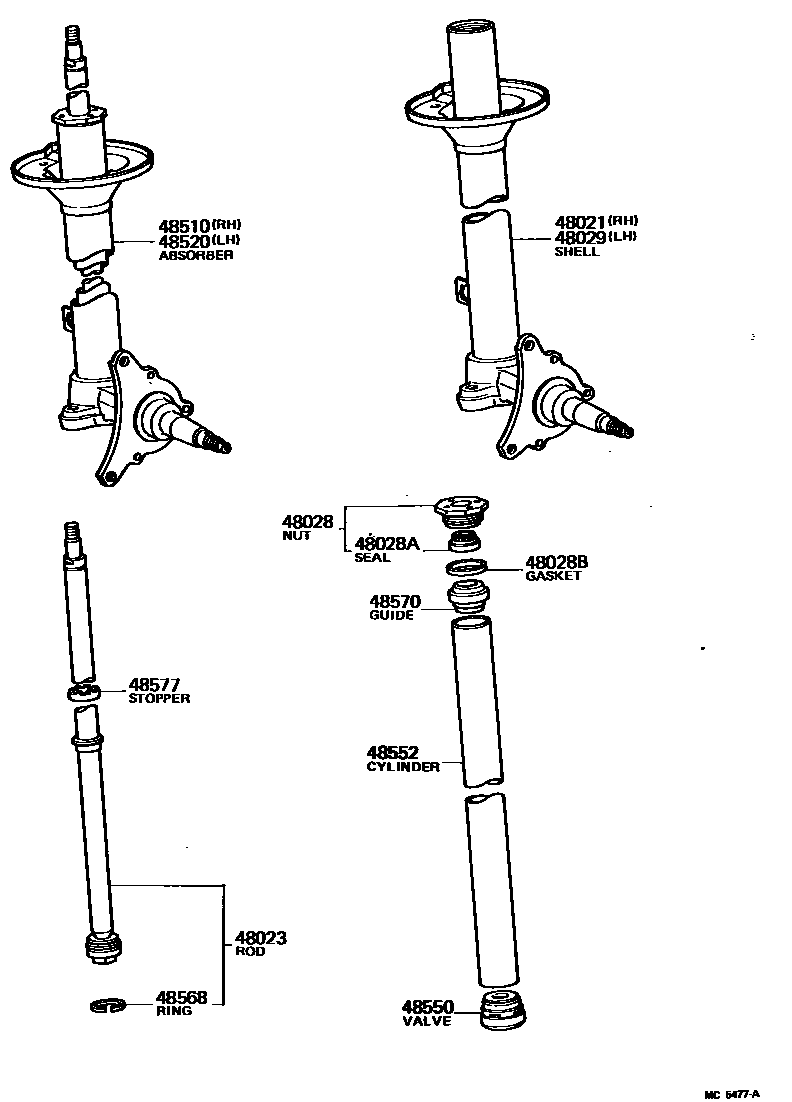

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-10040iKP61198008-198312

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-10080iKP61198008-198208

main48023-10100iKP61198208-198312

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-10020iKP61198008-198312

sub48028-17010

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-20006iKP61198008-198312

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-36002iKP61198008-198312

sub90430-37003

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-10030iKP61198008-198312

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-10080iKP61198008-198208

sub48510-10100

main48510-10100iKP61198208-198312

sub48510-10101

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-10060iKP61198008-198208

sub48520-10080

main48520-10080iKP61198208-198312

sub48520-10081

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-10050iKP61198008-198208

main48550-16010iKP61198208-198312

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-10030iKP61198008-198312

48568RING, SHOCK ABSORBER PISTON

main48568-12010iKP61198008-198208

main48568-12020iKP61198208-198306

main48568-12021iKP61198306-198312

48570GUIDE ASSY, SHOCK ABSORBER ROD

main48022-10020iKP61198008-198312

48577STOPPER, SHOCK ABSORBER REBOUND

main48577-10010iKP61198008-198312

13 parts on this diagram · 2 diagrams in section
