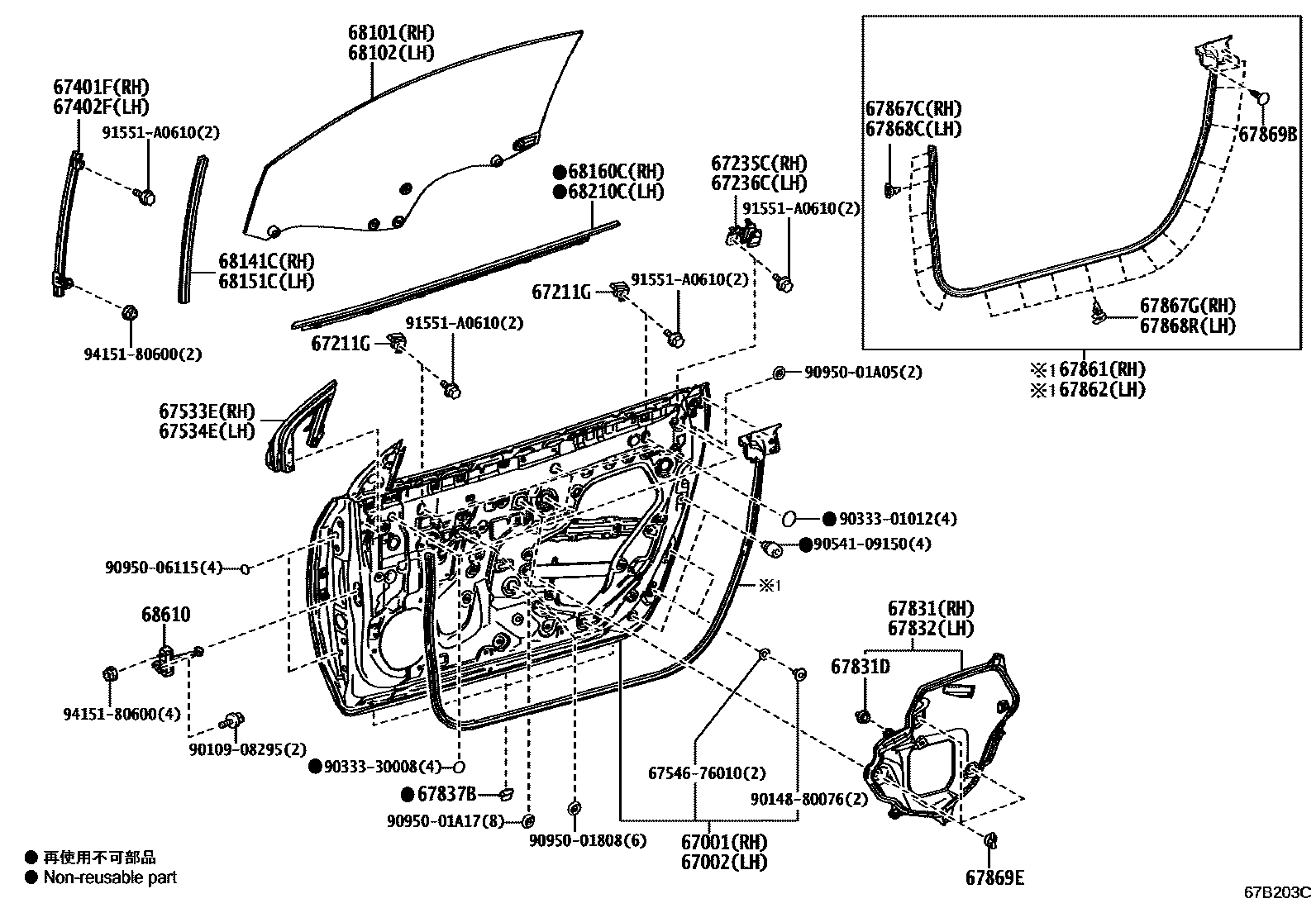

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67211GSTOP, FRONT DOOR WINDOW, UPPER
67235CSTABILIZER, DOOR GLASS FEMALE, RH
67236CSTABILIZER, DOOR GLASS FEMALE, LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67533ESEAL, FRONT DOOR DIVISION BAR, RH
67534ESEAL, FRONT DOOR DIVISION BAR, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837BSEAL, FRONT DOOR DUST PROOF
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868RRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67869ECLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68610CHECK ASSY, FRONT DOOR
6754676010CHANNEL, VENT WINDOW DRIP, RH
main67546-76010
9010908295
main90109-08295
9014880076
main90148-80076
9033301012
main90333-01012
9033330008
main90333-30008
9054109150
main90541-09150
9095001808
main90950-01808
9095001A05
main90950-01A05
9095001A17
main90950-01A17
9095006115
main90950-06115
91551A0610
main91551-A0610
9415180600
main94151-80600
40 parts on this diagram · 2 diagrams in section
