COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55211BSILENCER, FRONT PANEL
55224AINSULATOR, DASH PANEL, OUTER NO.2
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55734APLATE, WATER GUARD, RH
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55797ASEAL, COWL WATER EXTRACT
55815ESEAL, FRONT VENTILATOR, NO.1
56111GLASS, WINDSHIELD
HI GRADE PACKAGE&HEAD UP DISPLAY-WITH
GUADELOUPE SPEC
GUADELOUPE SPEC&ENTRY PACKAGE
MARTINIQUE SPEC
MARTINIQUE SPEC&ENTRY PACKAGE
NEW CALEDONIA SPEC
NEW CALEDONIA SPEC&ENTRY PACKAGE
KENYA SPEC
KENYA SPEC&ENTRY PACKAGE
AZORES, MADEIRA SPEC
AZORES, MADEIRA SPEC&ENTRY PACKAGE
CEUTA & MELILLA SPEC
CEUTA & MELILLA SPEC&ENTRY PACKAGE
ENTRY PACKAGE
COSTA RICA SPEC
COSTA RICA SPEC&ENTRY PACKAGE
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
GUADELOUPE SPEC&HEAD UP DISPLAY-WITH
MARTINIQUE SPEC&HEAD UP DISPLAY-WITH
NEW CALEDONIA SPEC&HEAD UP DISPLAY-WITH
KENYA SPEC&HEAD UP DISPLAY-WITH
AZORES, MADEIRA SPEC&HEAD UP DISPLAY-WITH
CEUTA & MELILLA SPEC&HEAD UP DISPLAY-WITH
COSTA RICA SPEC&HEAD UP DISPLAY-WITH
HEAD UP DISPLAY-WITH
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
HI GRADE PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&HEAD UP DISPLAY-WITH
SEBASTIEN OGIER EDITION *(S)
KALLE ROVANPERA EDITION *(K)
SEBASTIEN OGIER EDITION *(S)
KALLE ROVANPERA EDITION *(K)
56115CSTOPPER, WINDSHIELD GLASS
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
*D,L=1234 OR 650,MARTINIQUE SPEC
*D,L=1234 OR 650,MARTINIQUE SPEC&ENTRY PACKAGE
*D,L=1234 OR 650,MARTINIQUE SPEC&HEAD UP DISPLAY-WITH
*D,L=1234 OR 650,NEW CALEDONIA SPEC
*D,L=1234 OR 650,NEW CALEDONIA SPEC&ENTRY PACKAGE
*D,L=1234 OR 650,NEW CALEDONIA SPEC&HEAD UP DISPLAY-WITH
*D,L=1234 OR 650,KENYA SPEC
*D,L=1234 OR 650,KENYA SPEC&ENTRY PACKAGE
*D,L=1234 OR 650,KENYA SPEC&HEAD UP DISPLAY-WITH
*D,L=1234 OR 650,AZORES, MADEIRA SPEC
*D,L=1234 OR 650,AZORES, MADEIRA SPEC&ENTRY PACKAGE
*D,L=1234 OR 650,AZORES, MADEIRA SPEC&HEAD UP DISPLAY-WITH
*D,L=1234 OR 650,CEUTA & MELILLA SPEC
*D,L=1234 OR 650,CEUTA & MELILLA SPEC&ENTRY PACKAGE
*D,L=1234 OR 650,CEUTA & MELILLA SPEC&HEAD UP DISPLAY-WITH
*D,L=1234 OR 650,ENTRY PACKAGE
*D,L=1234 OR 650,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
*D,L=1234 OR 650,HEAD UP DISPLAY-WITH
*D,L=1234 OR 650
*D,L=1234 OR 650,GUADELOUPE SPEC
*D,L=1234 OR 650,GUADELOUPE SPEC&ENTRY PACKAGE
*D,L=1234 OR 650,GUADELOUPE SPEC&HEAD UP DISPLAY-WITH
*D,L=1234 OR 650,COSTA RICA SPEC
*D,L=1234 OR 650,COSTA RICA SPEC&ENTRY PACKAGE
*D,L=1234 OR 650,COSTA RICA SPEC&HEAD UP DISPLAY-WITH
*D,L=1234 OR 650,SEBASTIEN OGIER EDITION *(S)
*D,L=1234 OR 650,KALLE ROVANPERA EDITION *(K)
*D,L=1234 OR 650,HI GRADE PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&HEAD UP DISPLAY-WITH
*D,L=1234 OR 650,HI GRADE PACKAGE&HEAD UP DISPLAY-WITH
61113CPANEL, SIDE, INNER RH
61114CPANEL, SIDE, INNER LH
61163DPILLAR, FRONT BODY, LOWER INNER RH
61164CPILLAR, FRONT BODY, LOWER INNER LH
75533GMOULDING, WINDSHIELD, OUTSIDE
8503
8617
9011906A18
main90119-06A18
9011906A74
main90119-06A74
9046706188
main90467-06188
9046706197
main90467-06197
9046707076C7
main90467-07076C7

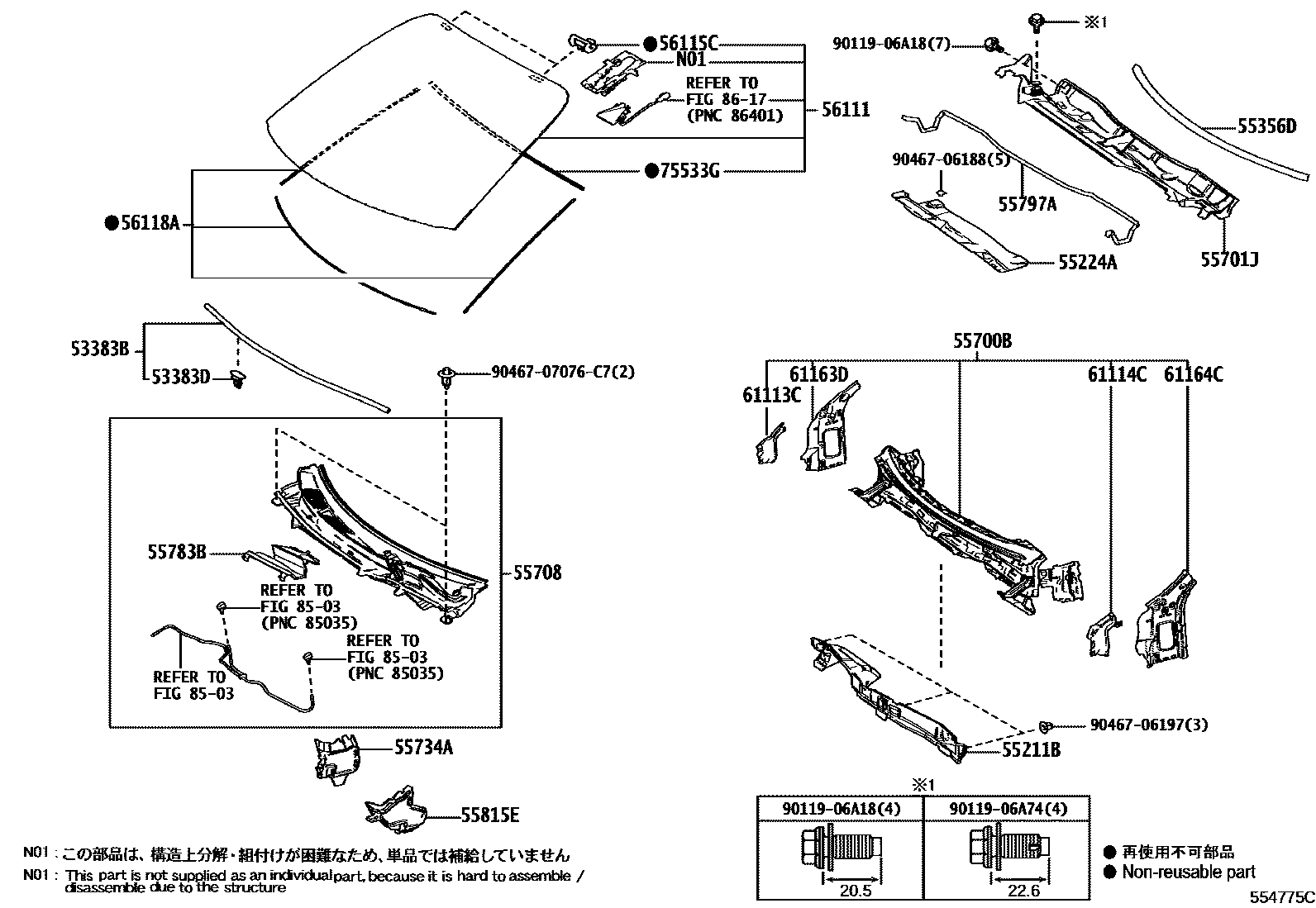

27 parts on this diagram · 2 diagrams in section
