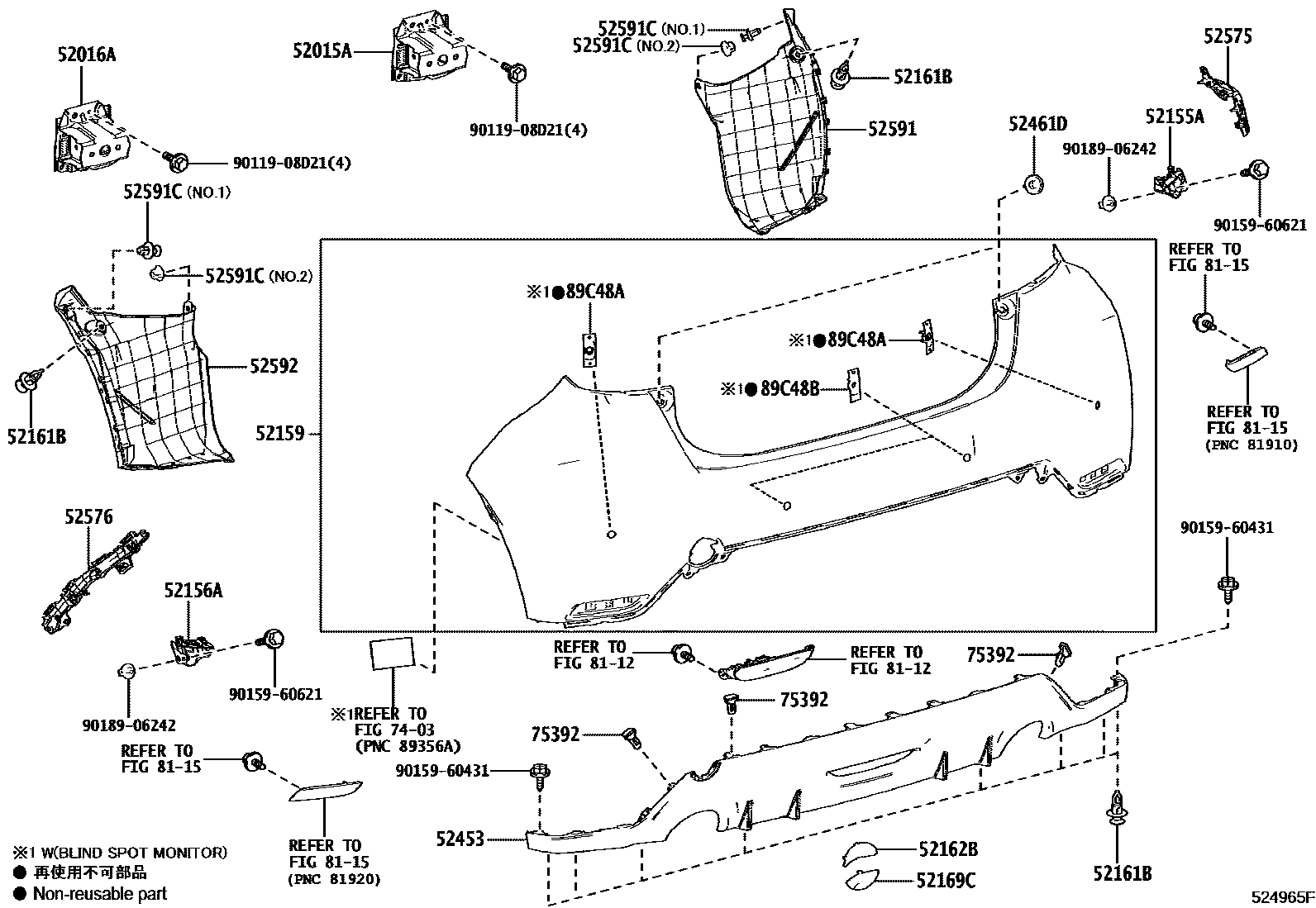

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.,ARGENTINA SPEC&SEBASTIEN OGIER EDITION *(S)&REAR SPOILER-WITH(FOR GR(RALLY))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
PAINT REQ.,BLIND SPOT MONITOR-WITH
PAINT REQ.,BLIND SPOT MONITOR-WITH
PAINT REQ.,ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&"HIGH PERFORMANCE"*(H)OR*(I)&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
PAINT REQ.,BLIND SPOT MONITOR-WITH
PAINT REQ.,BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
52161BPIECE, REAR BUMPER
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
sub52161-0K040
52162BPLATE, REAR BUMPER, NO.1
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.,ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
52453GUARD, REAR BUMPER, CENTER
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
52461DCUSHION, REAR BUMPER
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
52575RETAINER, REAR BUMPER SIDE, RH
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
52576RETAINER, REAR BUMPER SIDE, LH
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
52591SEAL, REAR BUMPER SIDE, RH
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
52591CCLIP, REAR BUMPER SIDE SEAL
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
52592SEAL, REAR BUMPER SIDE, LH
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
7403
75392RETAINER, OUTSIDE MOULDING
8112
8115
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST),SUPER WHITE 2,040
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST),PLATINUM WHITE PEARL MC.,089
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST),PRECIOUS METAL,1L5
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST),PRECIOUS BLACK,219
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST),EMOTIONAL RED 2,3U5
BLIND SPOT MONITOR-WITH
KALLE ROVANPERA EDITION *(K)&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
CLEARANCE & BACK SONAR-WITH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
BLIND SPOT MONITOR-WITH
BLIND SPOT MONITOR-WITH
CLEARANCE & BACK SONAR-WITH
9011908D21
main90119-08D21
9015960431
main90159-60431
9015960621
main90159-60621
9018906242
main90189-06242
25 parts on this diagram · 2 diagrams in section
