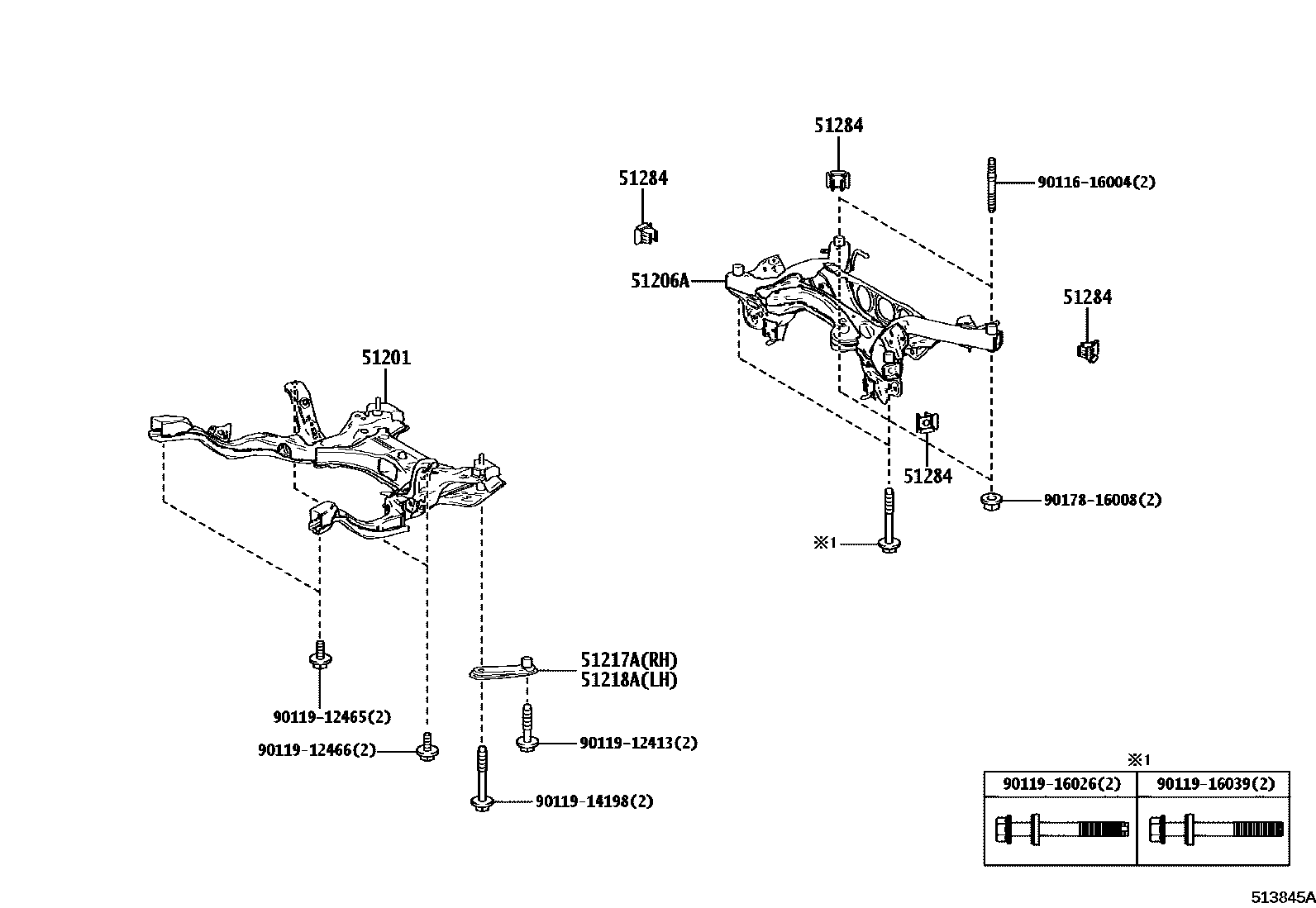

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52140iGXPA16¥54,600202008-202208

sub51201-52141¥49,600

main51201-52141iGXPA16¥49,600202209-202404

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-52020iGXPA16¥54,800202008-202404

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51210-52010iGXPA16¥1,480202008-202404

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51210-52010iGXPA16¥1,480202008-202404

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010iGXPA16¥340202008-202404

9011616004

main90116-16004¥610

9011912413

main90119-12413¥240

9011912465

main90119-12465¥240

9011912466

main90119-12466¥240

9011914198

main90119-14198¥430

9011916026

main90119-16026¥610

9011916039

main90119-16039¥610

9017816008

main90178-16008¥190

13 parts on this diagram · 2 diagrams in section
