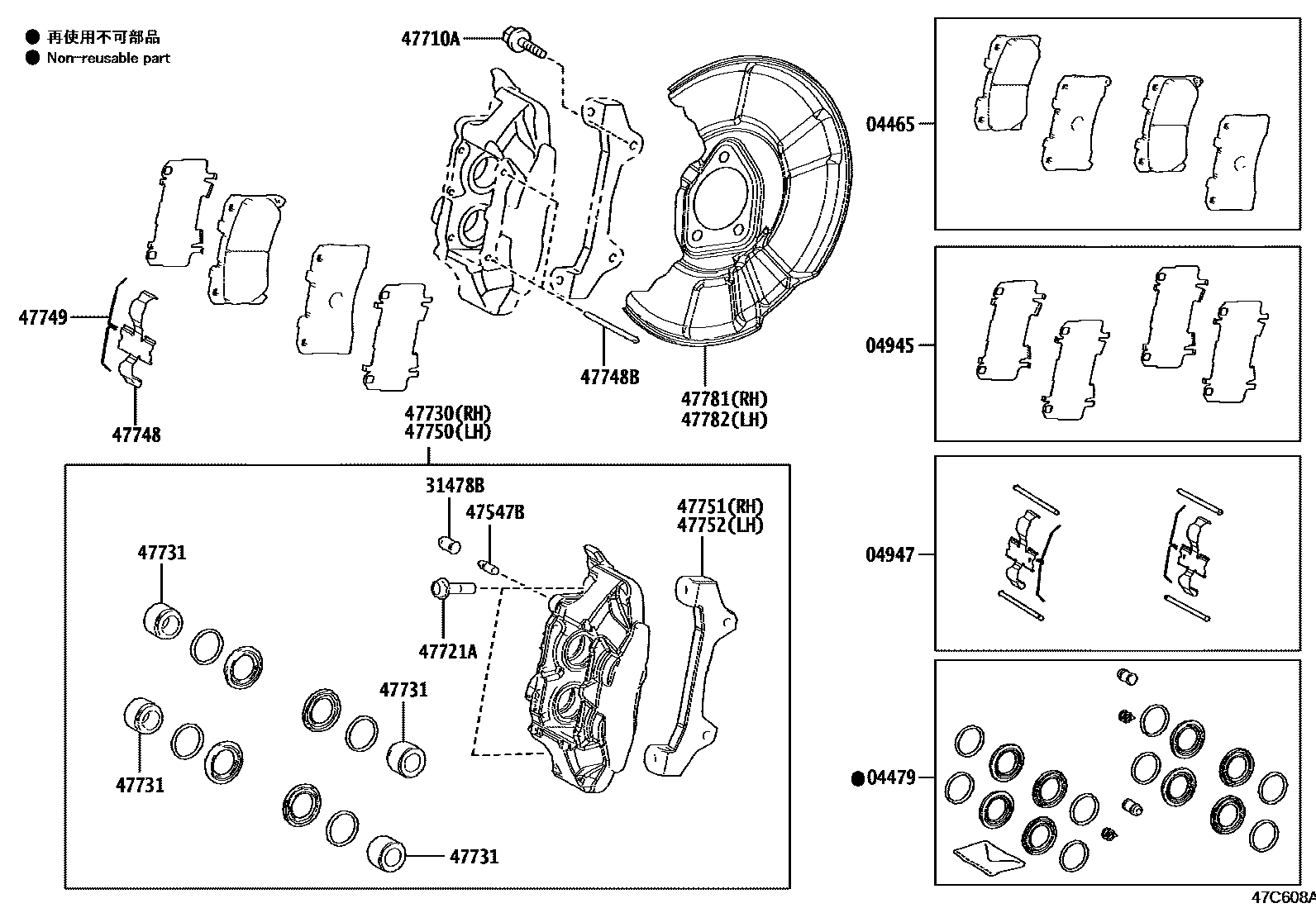

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-52370iGXPA16¥10,300202008-202404

MARK AK NS380H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-52270iGXPA16¥2,640202008-202404

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-52210iGXPA16¥620202008-202404

04947FITTING KIT, DISC BRAKE, FRONT

main04947-52080iGXPA16¥2,190202008-202404

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iGXPA16¥190202008-202404

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010iGXPA16¥190202008-202404

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iGXPA16¥160202008-202404

*12-1.25PX29.5-23

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA604iGXPA16¥1,590202008-202404

*12-1.25PX48.1-23.6

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52350iGXPA16..CHI¥52,200202412

main47730-52370iGXPA16¥34,800202008-202404

47731PISTON, FRONT DISC BRAKE

main47731-52350iGXPA16¥1,130202008-202404

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-52350iGXPA16¥620202008-202404

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-60300iGXPA16¥200202008-202404

47749CLIP, PIN HOLD

main90468-12015iGXPA16¥90202008-202404

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52400iGXPA16..CHI¥52,200202412

main47750-52420iGXPA16..ARL,EUR¥34,800202008-202404

47751BRACKET, CALIPER SUPPORT, RH

main47751-52010iGXPA16¥3,880202008-202404

47752BRACKET, CALIPER SUPPORT, LH

main47751-52010iGXPA16¥3,880202008-202404

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52060iGXPA16¥1,360202008-202404

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52060iGXPA16¥1,360202008-202404

18 parts on this diagram · 1 diagram in section
