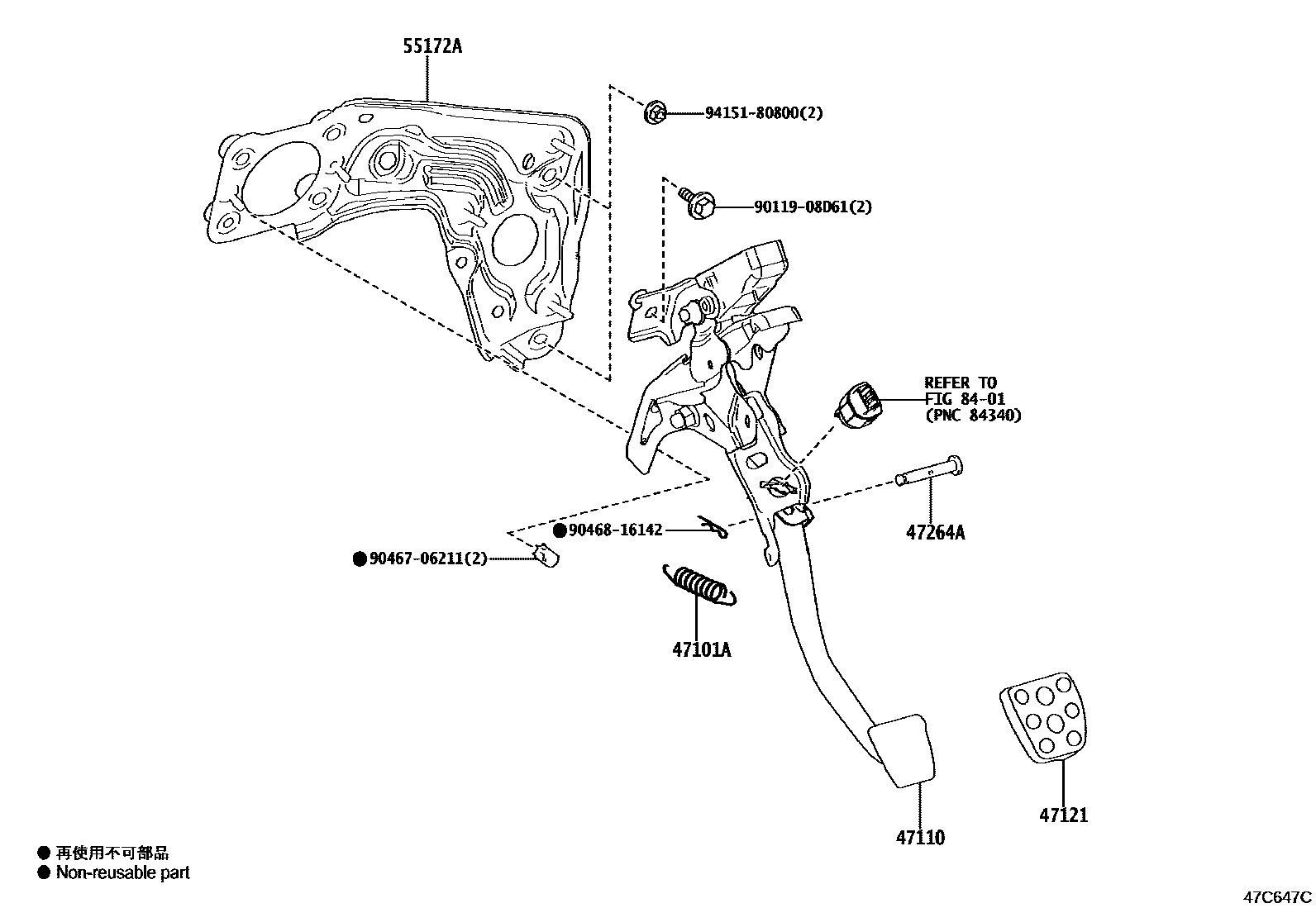

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-17003iGXPA16..ARL,EUR202008-202404

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0W010iGXPA16..LHD202008-202202

sub47110-0W011

main47110-0W011iGXPA16..CHI202203-202404

main47110-0W030iGXPA16..LHD..8FC202404

main47110-52500iGXPA16..RHD..6F202008-202404

main47110-52520iGXPA16..RHD..8FC202404

main47110-K0080iGXPA16..ARL202008-202112

47121PAD, BRAKE PEDAL

main47121-10040iGXPA16..EUR202008-202404

main47121-12040iGXPA16..ARL202008-202112

main47121-78010iGXPA16..8FC202404

47264APIN(FOR PUSH ROD)

main90249-08051iGXPA16..RHD202008-202404

main90249-08221iGXPA16..CHI202008-202404

55172ABASE, BRAKE PEDAL SUPPORT

main55172-K0010iGXPA16..RHD202008-202404

main55172-K0020iGXPA16..LHD202008-202404

8401

9011908D61

main90119-08D61

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

10 parts on this diagram · 2 diagrams in section
