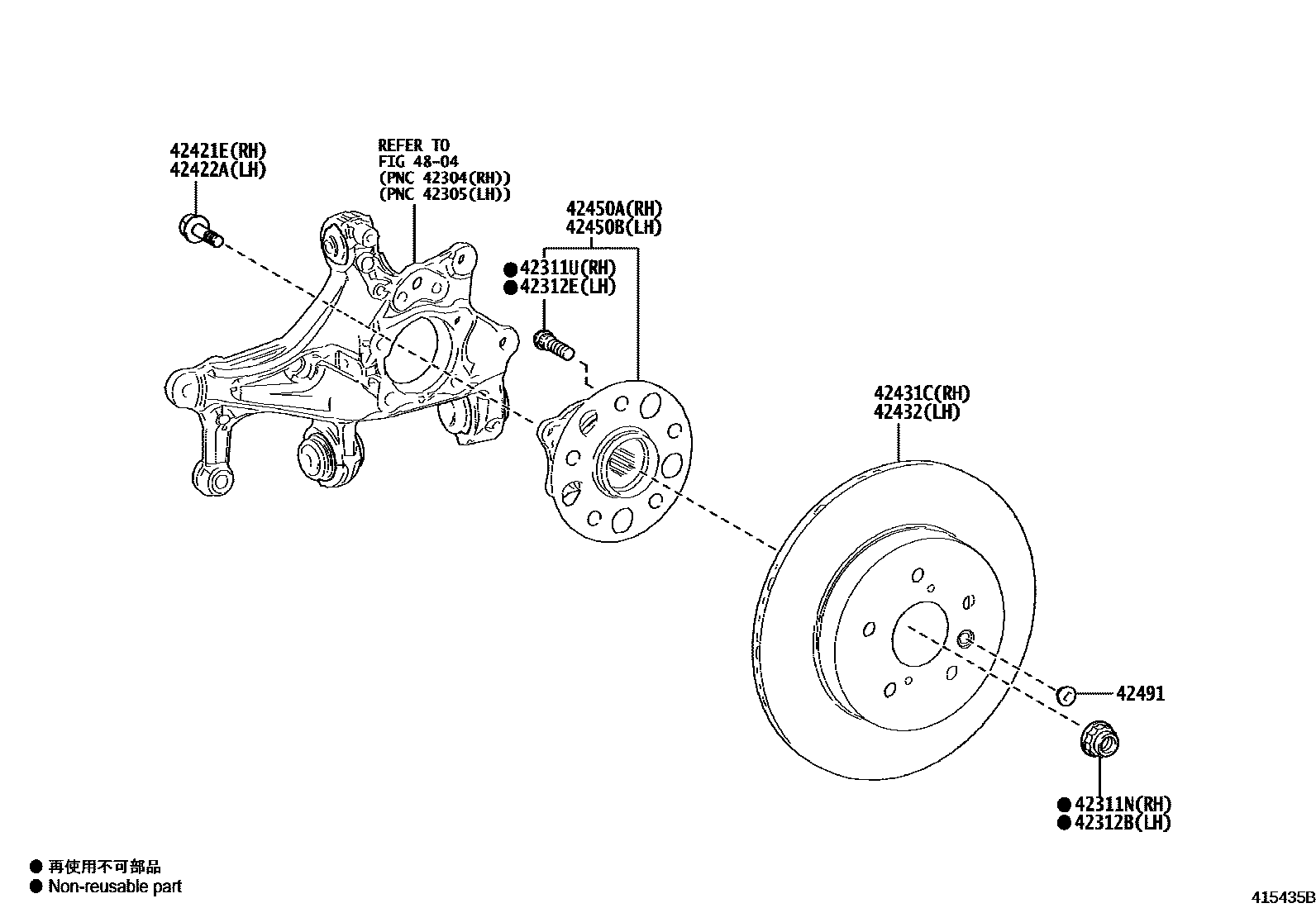

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-22001iGXPA16202008-202404

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iGXPA16202008-202404

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-22001iGXPA16202008-202404

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iGXPA16202008-202404

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406iGXPA16202008-202404

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406iGXPA16202008-202404

42431CDISC, REAR RH

main42431-52190iGXPA16202008-202404

42432DISC, REAR LH

main42432-52010iGXPA16202008-202404

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-42060iGXPA16202008-202404

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-42060iGXPA16202008-202404

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iGXPA16202008-202404

4804

12 parts on this diagram · 2 diagrams in section
