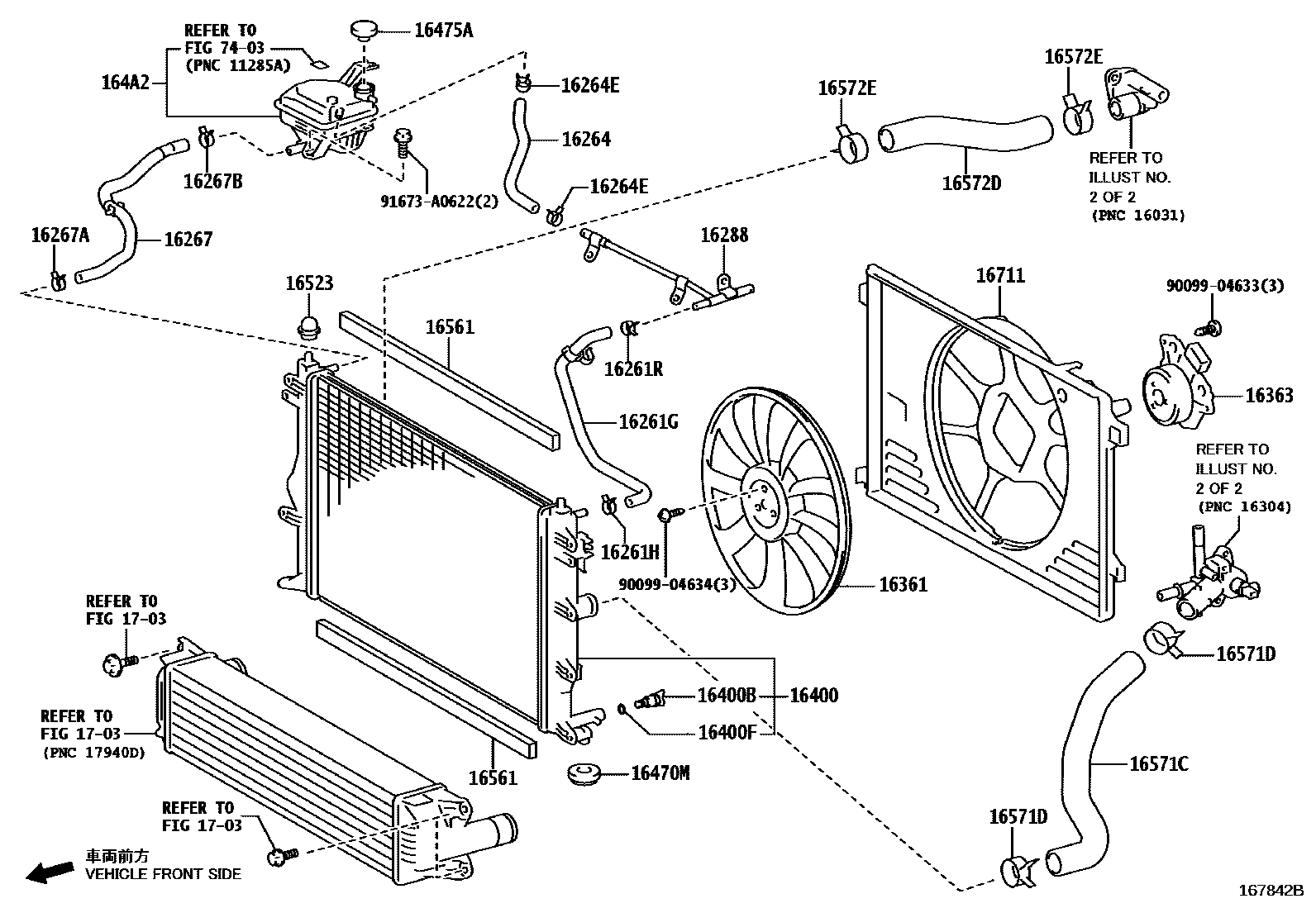

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1RADIATOR SIDE 0003 1RADIATOR SIDE,W(SUB RADIATOR)0004 1ENGINE SIDE 0005 1ENGINE SIDE

16261HOSE, WATER BY-PASS

main16261-18010iG16EGTS..GXPA16¥540202008-202404

16261GHOSE, WATER BY-PASS, NO.1

main16261-18020iG16EGTS..GXPA16¥880202008-202404

sub16261-18030¥790

main16261-18030iG16EGTS..GXPA16..ARL,EUR¥790202404

16261HCLIP(FOR WATER BY-PASS HOSE NO.1)

main96136-41901iG16EGTS..GXPA16¥120202008-202404

16261RCLAMP OR CLIP(FOR WATER BY-PASS HOSE)

main96138-41701iG16EGTS..GXPA16..ARL,EUR¥120202404

main96138-51701iG16EGTS..GXPA16¥120202008-202404

16264HOSE, WATER BY-PASS, NO.2

main16264-18020iG16EGTS..GXPA16¥600202008-202404

main16264-18040iG16EGTS..GXPA16..ARL,EUR¥540202404

16264ECLIP(FOR WATER BY-PASS HOSE NO.2)

main96136-41901iG16EGTS..GXPA16¥120202008-202404

16267HOSE, WATER BY-PASS, NO.3

main16267-18020iG16EGTS..GXPA16¥1,080202008-202404

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main96136-42201iG16EGTS..GXPA16..ARL,EUR¥180202008-202404

16267BCLIP(FOR WATER BY-PASS HOSE)

main96136-42501iG16EGTS..GXPA16¥200202008-202404

16288PIPE, WATER BY-PASS, NO.4

main16288-18010iG16EGTS..GXPA16¥2,050202008-202404

16361FAN

main16361-21150iG16EGTS..GXPA16¥5,600202008-202404

main16361-24140iG16EGTS..GXPA16..ARL,EUR¥5,200202404

16363MOTOR, COOLING FAN

main16363-25020iG16EGTS..GXPA16..ARL,EUR¥37,600202404

main16363-31500iG16EGTS..GXPA16¥37,600202008-202404

16400RADIATOR ASSY

main16400-18050iG16EGTS..GXPA16¥36,400202008-202404

main16400-18060iG16EGTS..GXPA16..CHI¥43,600202404

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280iG16EGTS..GXPA16¥360202008-202404

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050iG16EGTS..GXPA16¥210202008-202404

16470MGROMMET

main90480-40021iG16EGTS..GXPA16¥220202008-202404

16475ACAP, RESERVE TANK

main16475-28140iG16EGTS..GXPA16¥1,200202008-202404

164A2TANK, RESERVE SEALED W/O CAP

main164A2-18010iG16EGTS..GXPA16¥6,500202008-202404

main164A2-18020iG16EGTS..GXPA16..ARL,EUR¥6,200202404

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-37010iG16EGTS..GXPA16¥400202008-202404

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-18040iG16EGTS..GXPA16¥80202008-202404

16571CHOSE, RADIATOR, NO.1

main16571-18050iG16EGTS..GXPA16¥1,350202008-202404

16571DCLIP, RADIATOR HOSE, NO.1

main96136-44301iG16EGTS..GXPA16¥310202008-202404

16572DHOSE, RADIATOR, NO.2

main16572-18010iG16EGTS..GXPA16¥1,080202008-202404

16572ECLIP, RADIATOR HOSE, NO.2

main96136-44301iG16EGTS..GXPA16¥310202008-202404

main96136-44301iG16EGTS..GXPA16..ARL,EUR¥310202404

SUB RADIATOR-WITH

16711SHROUD, FAN

main16711-18020iG16EGTS..GXPA16¥5,100202008-202404

main16711-18030iG16EGTS..GXPA16..ARL,EUR¥5,100202404

1703

7403

9009904633

main90099-04633¥0

9009904634

main90099-04634¥0

91673A0622

main91673-A0622¥60

30 parts on this diagram · 5 diagrams in section
