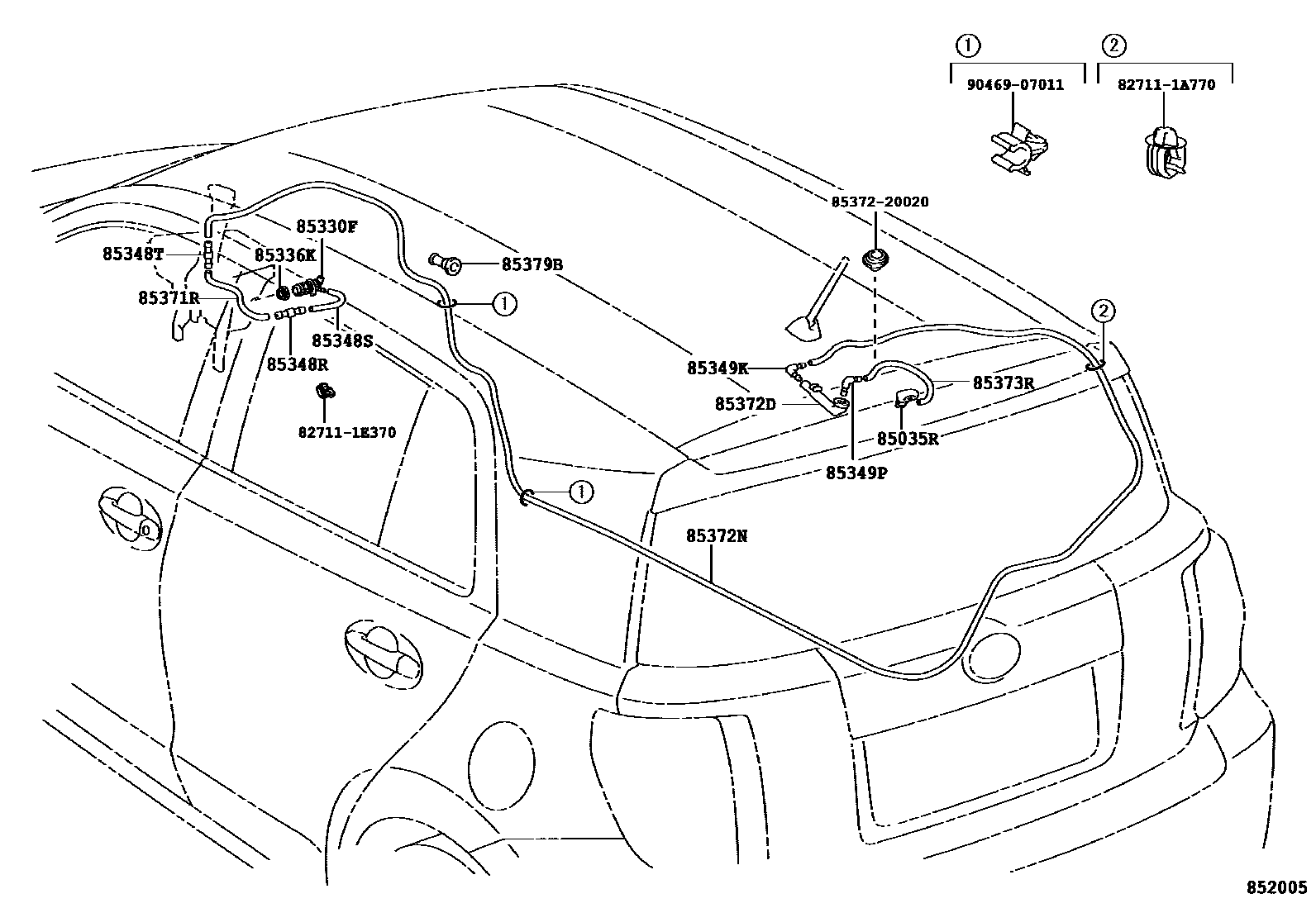

REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-52140iZSP110200706-201407

sub85391-48021

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60180iZSP110200706-201407

85336KPROTECTOR, WASHER JAR

main85336-60300iZSP110200706-201407

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iZSP110200706-201407

85348SJOINT, REAR WASHER ELBOW, NO.1

main85336-12230iZSP110200706-201407

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iZSP110200706-201407

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iZSP110200706-201407

85349PJOINT, REAR WASHER ELBOW, NO.3

main85355-20200iZSP110200706-201407

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iZSP110200706-201407

L=1450(*H,L=270)

85372DGROMMET, REAR WASHER HOSE

main85372-20040iZSP110200706-201407

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iZSP110200706-201407

L=4985(*H,L=4550)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iZSP110200706-201407

L=1450(*H,L=220)

85379BGROMMET, WASHER, A

main85379-52351iZSP110200706-201407

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

9046907011

main90469-07011

17 parts on this diagram · 1 diagram in section
