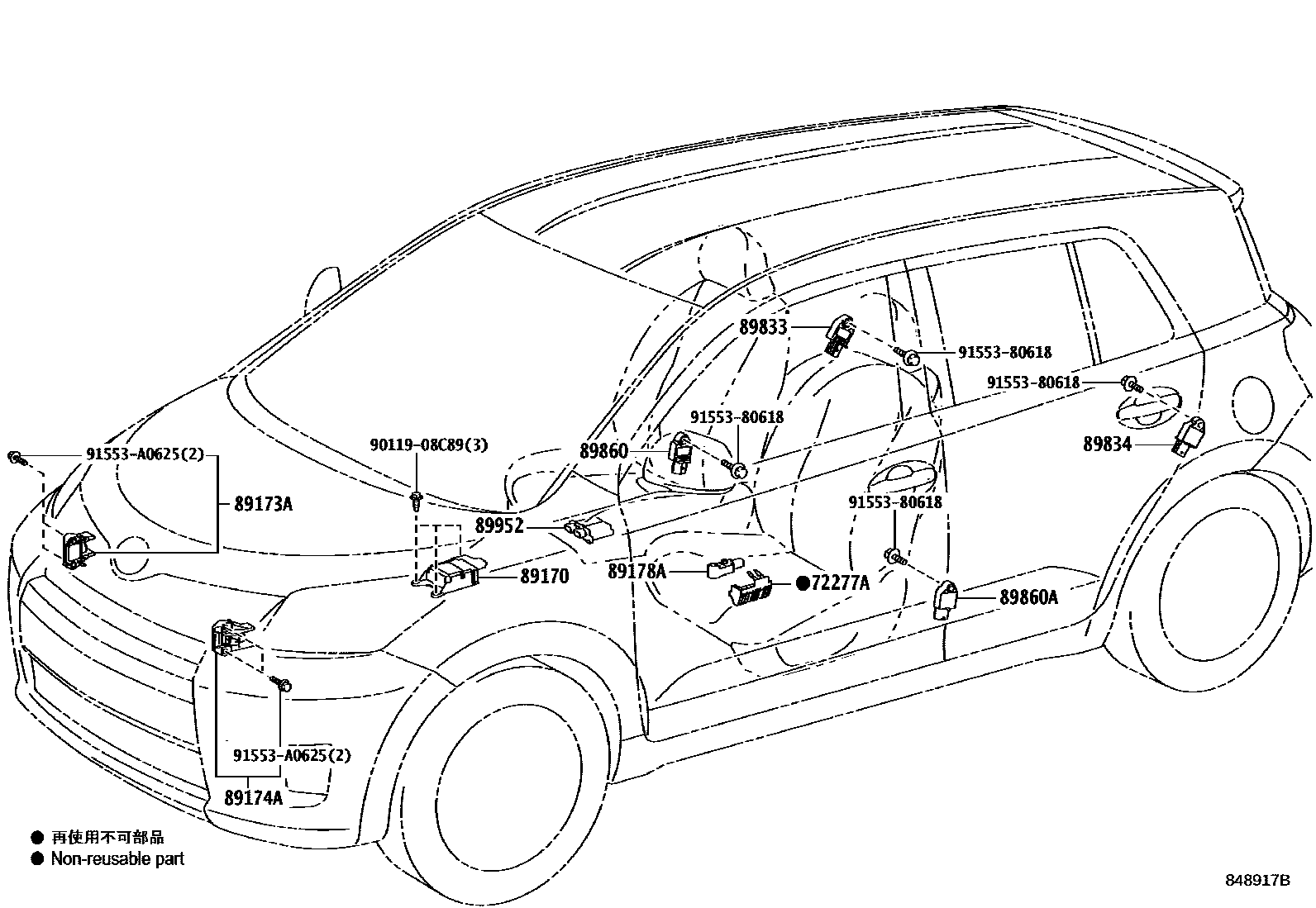

AIR BAG

0001 1 0002 1

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-34010iZSP110200706-201004

89170SENSOR ASSY, AIRBAG

main89170-52B30iZSP110200706-201208

89173ASENSOR, AIRBAG, FRONT RH

main89173-39375iZSP110200706-201208

main89173-59275iZSP110201208-201407

89174ASENSOR, AIRBAG, FRONT LH

main89173-39375iZSP110200706-201208

main89173-59275iZSP110201208-201407

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33040iZSP110200706-201004

89833SENSOR, AIRBAG, REAR RH

main89831-33020iZSP110200706-201208

main89831-52020iZSP110201208-201407

89834SENSOR, AIRBAG, REAR LH

main89831-33020iZSP110200706-201208

main89831-52020iZSP110201208-201407

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-28020iZSP110200706-201208

main89831-52020iZSP110201208-201407

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-28020iZSP110200706-201208

main89831-52020iZSP110201208-201407

89952COMPUTER, OCCUPANT DETECTION

main89952-35011iZSP110200706-201407

sub89952-35020

9011908C89

main90119-08C89

9155380618

main91553-80618

91553A0625

main91553-A0625

13 parts on this diagram · 2 diagrams in section
