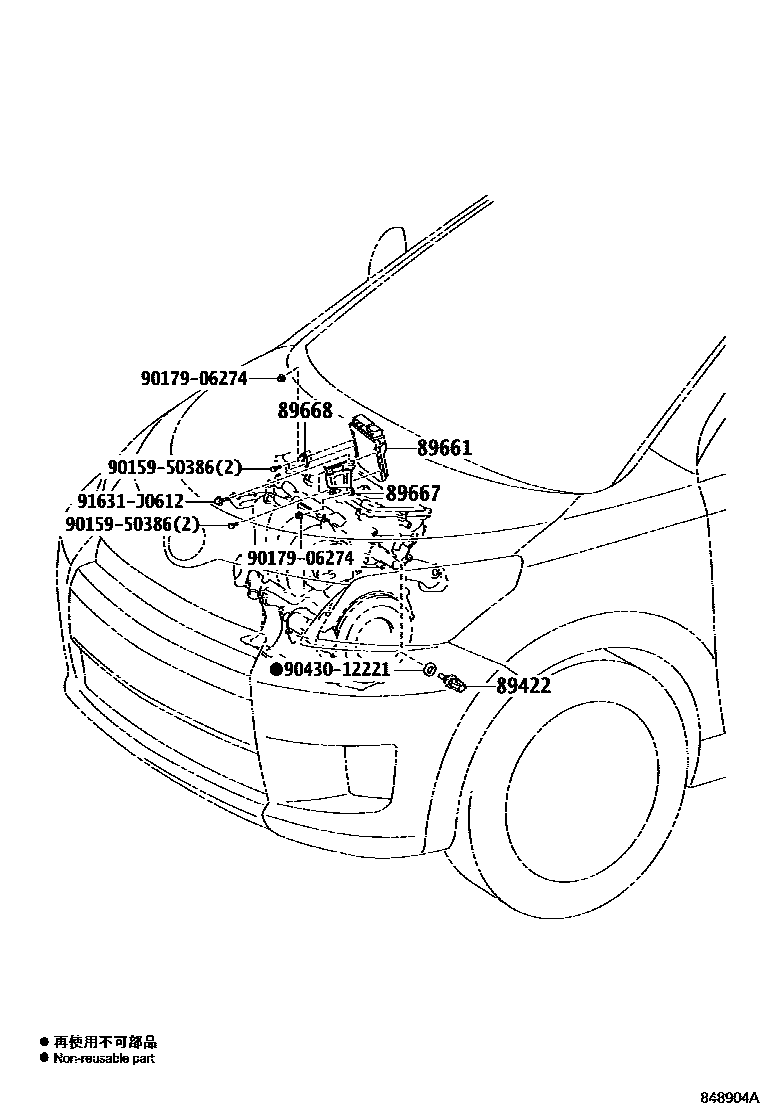

ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZSP110200706-201407

89661COMPUTER, ENGINE CONTROL

main89661-52F71iZSP110..4FC200706-200904

sub89661-52F72

main89661-52F72iZSP110..4FC200904-200907

main89661-52F81iZSP110..5F200706-200808

sub89661-52F82

main89661-52F82iZSP110..5F200809-200904

sub89661-52F83

main89661-52F83iZSP110..5F200904-200907

main89661-52M10iZSP110..5F200907-201008

main89661-52M20iZSP110..4FC200907-201008

main89661-52T90iZSP110..5F201008-201208

main89661-52U00iZSP110..4FC201008-201208

main89661-52Y50iZSP110..5F201208-201407

main89661-52Y60iZSP110..4FC201208-201407

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52200iZSP110200706-201407

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52220iZSP110200706-201407

9015950386

main90159-50386

9017906274

main90179-06274

9043012221

main90430-12221

91631J0612

main91631-J0612

8 parts on this diagram · 1 diagram in section
