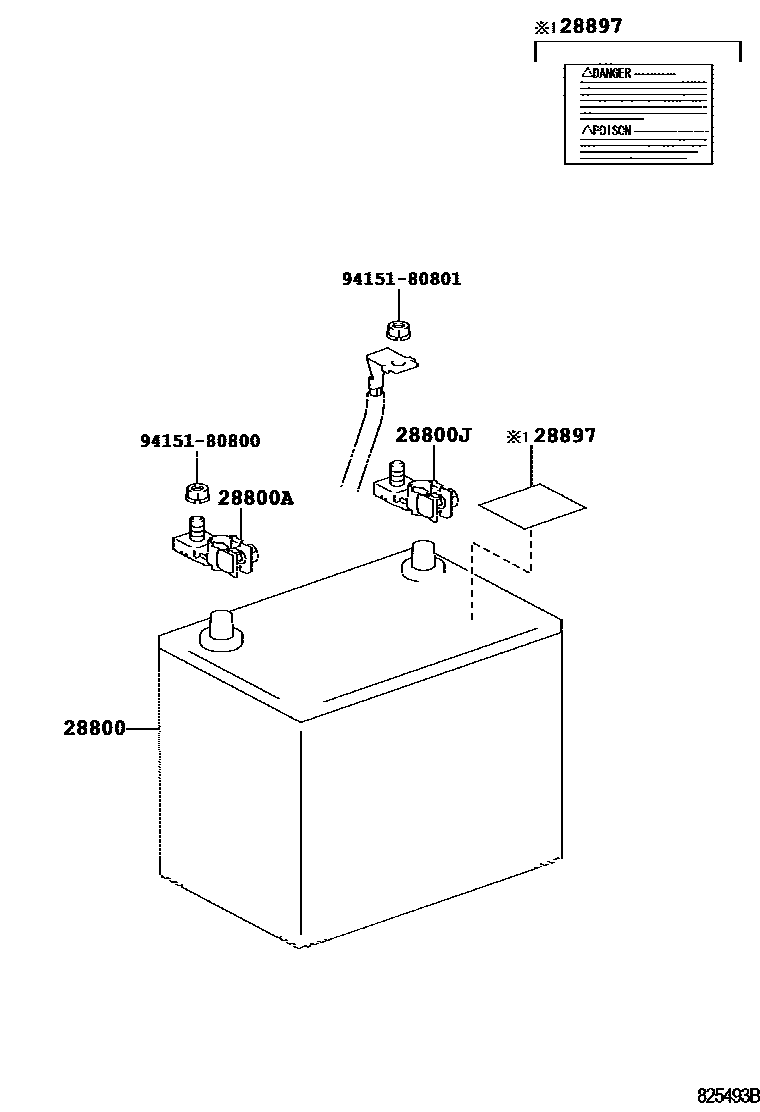

BATTERY & BATTERY CABLE

28800BATTERY

main28800-16151i2ZRFE..ZSP110200706-201204

55D23L,FURUKAWA

sub28800-43262

main28800-43262i2ZRFE..ZSP110200706-201407

55D23L,PANASONIC

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2ZRFE..ZSP110200706-201407

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i2ZRFE..ZSP110200706-201407

28897PLATE, BATTERY CAUTION

main28897-46020i2ZRFE..ZSP110..CND201008-201407

9415180800

main94151-80800

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
