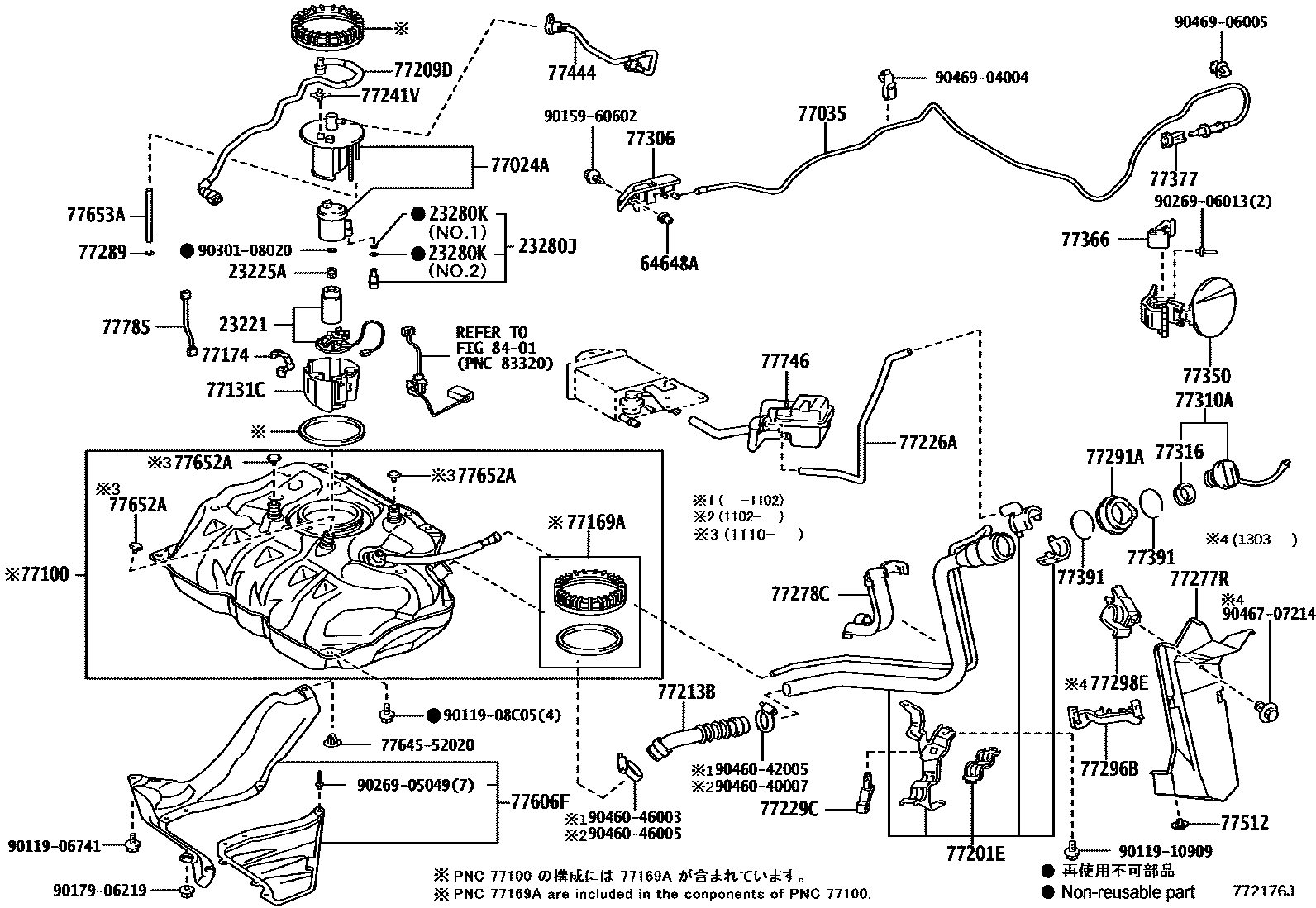

FUEL TANK & TUBE
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
64648AGROMMET, LUGGAGE DOOR LOCK OPENER
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77213BHOSE, FUEL TANK TO FILLER PIPE
77229CCLAMP, BREATHER TUBE
77277RPROTECTOR, FUEL TANK FILLER PIPE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77289HOLDER, FUEL TANK PIPE SETTING
77291ASHIELD, FUEL TANK FILLER PIPE
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
77298ESUPPORT, FUEL TUBE PROTECTOR, NO.3
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77444HOSE, FUEL TANK VENT
77512BRACKET, FUEL TANK, REAR
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77746FILTER, CHARCOAL CANISTER, NO.2
8401
7764552020PACKING, FUEL TANK BRACKET UPPER, B
main77645-52020
9011906741
main90119-06741
9011908C05
main90119-08C05
9011910909
main90119-10909
9015960602
main90159-60602
9017906219
main90179-06219
9026905049
main90269-05049
9026906013
main90269-06013
9030108020
main90301-08020
9046040007
main90460-40007
9046042005
main90460-42005
9046046003
main90460-46003
9046046005
main90460-46005
9046707214
main90467-07214
9046904004
main90469-04004
9046906005
main90469-06005
54 parts on this diagram · 2 diagrams in section
