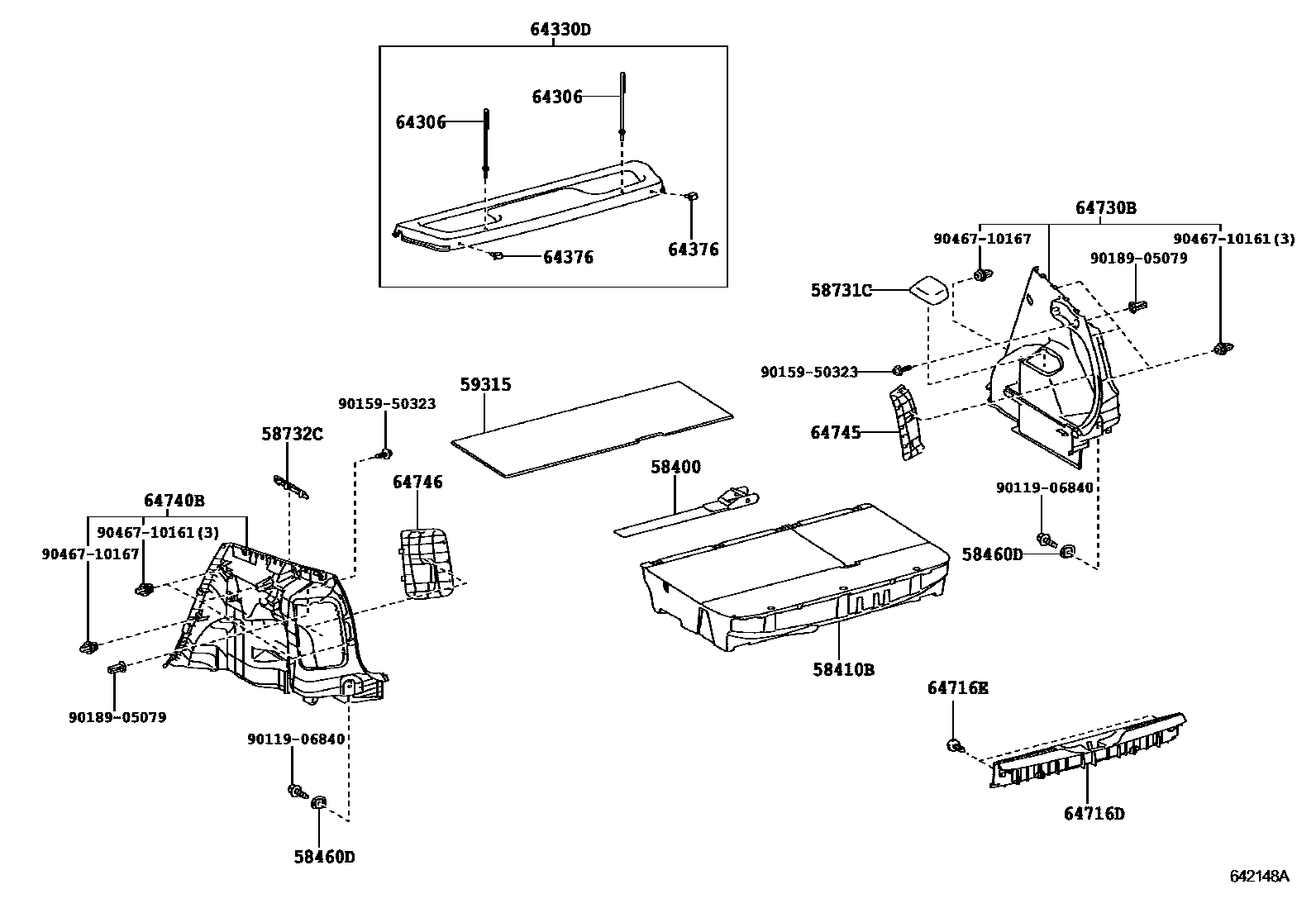

DECK BOARD & DECK TRIM COVER
58400BELT ASSY, LUGGAGE HOLD, NO.1
58410BBOARD ASSY, DECK
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58731CCAP, REAR ABSORBER
58732CCAP, REAR ABSORBER
59315COVER, REAR FLOOR BOX
DARK GRAY,TRIM1#
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
WITH(PACKAGE TRAY)
64330DPANEL ASSY, PACKAGE TRAY TRIM
WITH(PACKAGE TRAY),BLACK,TRIM1#
64376SPACER, PACKAGE TRAY TRIM, NO.2
WITH(PACKAGE TRAY)
64716DCOVER, DECK TRIM, REAR
DK.GRAY,TRIM1#
64716ECLIP(FOR DECK TRIM REAR COVER)
64730BPANEL ASSY, DECK TRIM SIDE, RH
DK.GRAY,TRIM1#
64740BBOARD, DECK TRIM SIDE, LH
DK.GRAY,TRIM1#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
DK.GRAY,TRIM1#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
DK.GRAY,TRIM1#
9011906840
main90119-06840
9015950323
main90159-50323
9018905079
main90189-05079
9046710161
main90467-10161
9046710167
main90467-10167
20 parts on this diagram · 1 diagram in section
